A0/a15 Fire Doors SupplierIMO-Certified Fireproof Solutions
- Tailor-Made Dimensions for Every Product
- PVC Film / PET Film / Painted / SUS
- Approved by ABS • DNV • BV • LR • CCS • NK • KR • EC.
- Delivery 30–40 days after technical docs.
- Quotes in 24h.
Multi-plant sourcing + substitutions reduce schedule risk.
Consolidation, export packing, and full class paperwork.
CSV specs + model matching to your room schedule.
Table Of Contents
Hot Selling Products

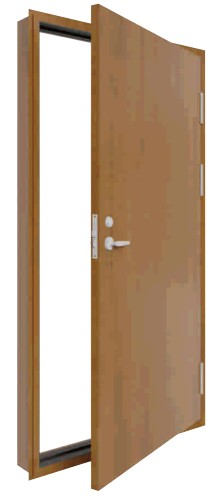

A-0/A-15 Class Single-Leaf Fire Door
- Door leaf: PVC film/PET film/Painted/SUS
- Door frame: Painted/SUS
- Door leaf Thickness: 40mm
- Core: Rock Wool
A-0/A-15 Class Fire Door(Circular Arc)
- Door leaf: PVC film/PET film/Painted/SUS
- Door frame: Painted/SUS
- Door leaf Thickness: 40mm
- Core: Rock Wool
- Door leaf accessories: C/W Vision Window, Fire hose port, Escape panel

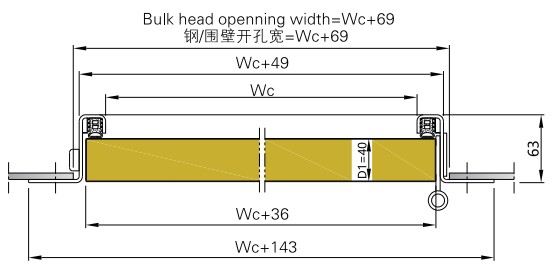

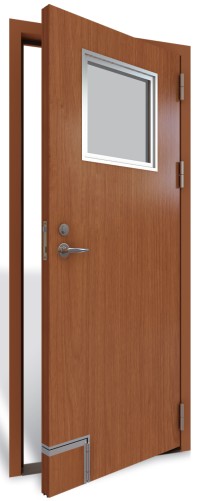

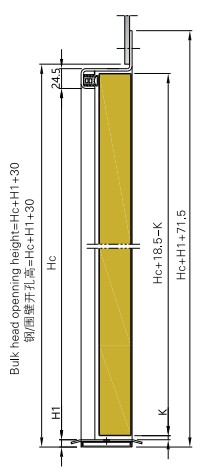

A-15 Class Single-Leaf Fire Door
- Door leaf: PVC-laminated galvanized steel sheet with protective foil
- Door frame: Steel sheet / Baked Paint / Stainless steel door sill cover plate
- Door leaf Thickness: 40mm
- Max clear size: Wc x Hc =1000*2100 mm
- Sound Reduction index: Rw=38dB Door sill with rubber
- Optional fittings: Vision panel, hose port door
- Vision panel: Square: 250*250 mm, 360 * 360 mm, 360*260mm / Round: ⌀280 mm

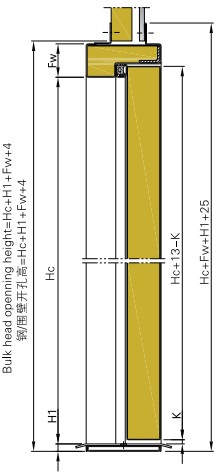

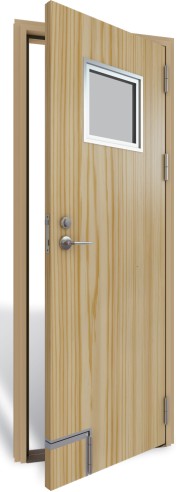

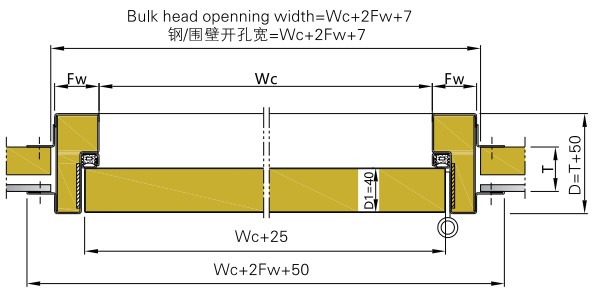

A-15 Class Single-Leaf Fire Door
- Door leaf: PVC-laminated galvanized steel sheet with protective foil
- Door frame: Steel sheet / Baked Paint / Stainless steel door sill cover plate
- Door leaf Thickness: 40mm
- Max clear size: Wc x Hc =1000*2100 mm
- Sound Reduction index: Rw=36dB Door sill with rubber
- Optional fittings: Vision panel, hose port door
- Vision panel: Square: 250*250 mm, 360 * 360 mm, 360*260mm / Round: ⌀280 mm

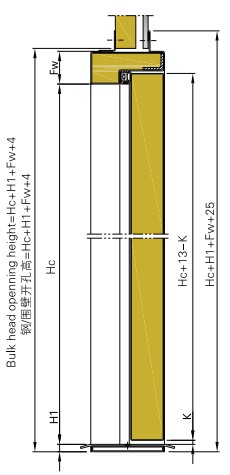

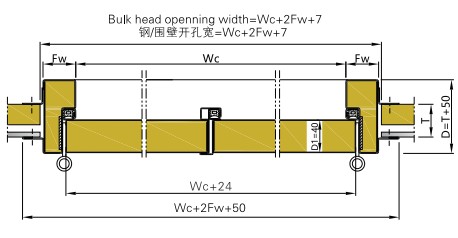

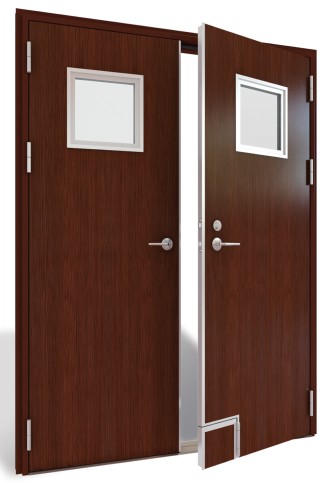

A-15 Class Double-Leaf Fire Door
- Door leaf: PVC-laminated galvanized steel sheet with protective foil
- Door frame: Steel sheet / Baked Paint / Stainless steel door sill cover plate
- Door leaf Thickness: 40mm
- Max clear size: Wc x Hc =2000*2100 mm
- Sound Reduction index: Rw=39dB Door sill with rubber
- Optional fittings: Vision panel, hose port door
- Vision panel: Square: 250*250 mm, 360 * 360 mm, 360*260mm / Round: ⌀280 mm

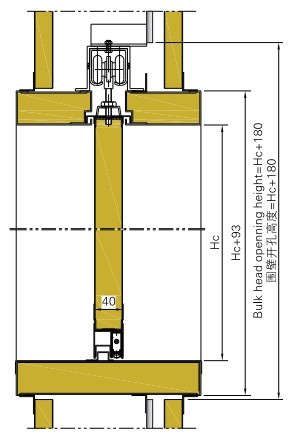

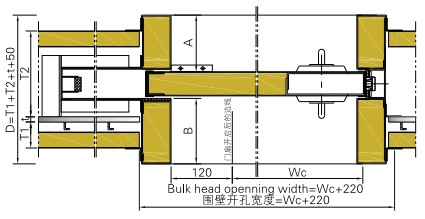

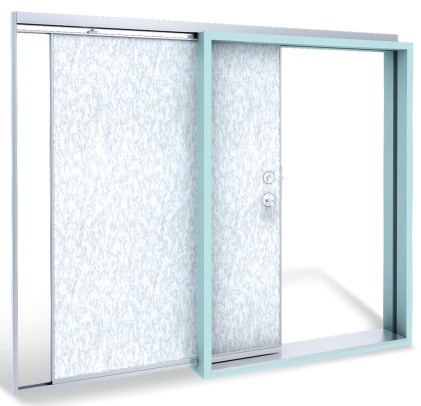

A-15 Class Service Window
- Door leaf: PVC-laminated galvanized steel sheet with protective foil
- Door frame: Steel sheet / Baked Paint
- Door leaf Thickness: 40mm
- Max clear size: Wc x Hc =1200*1000 mm

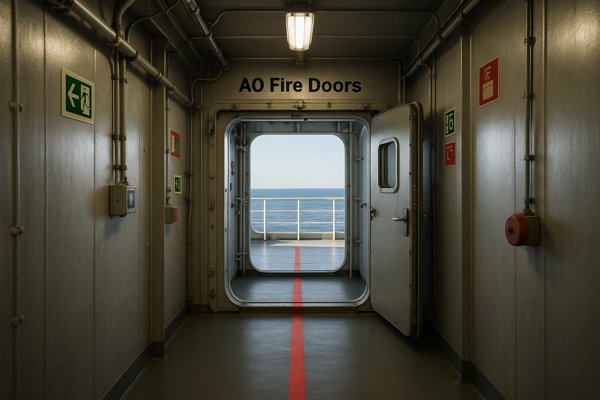

General Applications For A-0/A-15 Fire Doors
| Space / Zone for A-0 Fire Doors | Space / Zone for A-15 Fire Doors |
|---|---|

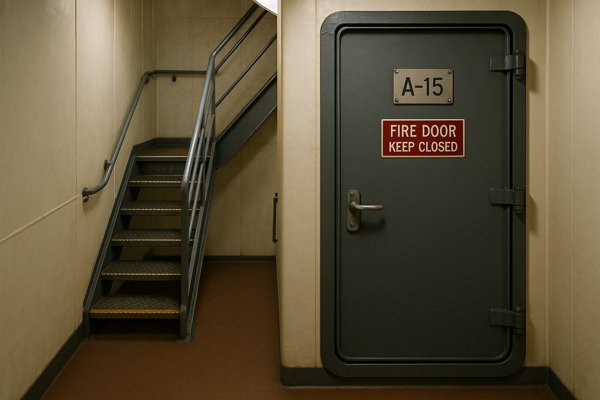

| External accommodation boundary (weathertight deckhouse doors) | Stair/lobby enclosure doors (cargo ships & OSVs) |
| Corridor → open deck exit doors | Workshops attached to accommodation (light duty) |

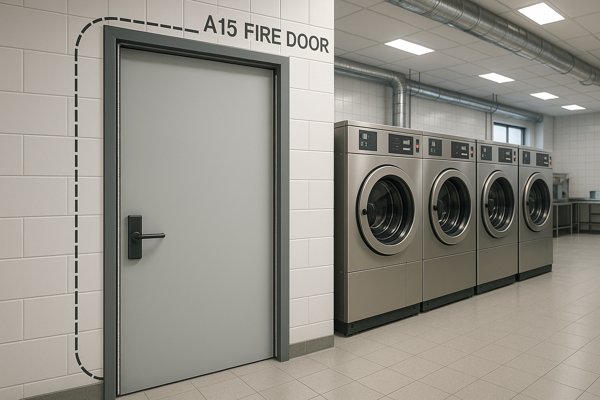

| Service spaces—non-hazardous (pantry w/o cooking, small stores/lockers) | Laundry (no fuel-fired equipment) |
A Brief Self-Nomination, Why Choose Magellan Marine?
- Top Quality in China — vetted supply + multi-class approvals
- Cost-Effective — competitive pricing & optimized export packing
- Common Range — A-15/A-0 safety
- Installer-friendly — standard widths, predictable tolerances
The FAQs About A-0/A-15 Fire Doors
Are your doors IMO compliant?
Yes. All A-0/A-15 doors are designed and tested to the IMO FTP Code/SOLAS. Test reports are available on request.
Where can these doors be used onboard?
Accommodation spaces, corridors, staircases, control rooms, galleys, offices/clinics—any area requiring A-Class divisions per yard/class rules.
What is your lead time?
~30 days after technical docs are confirmed (normal), ~35–40 days when busy.
What leaf and frame materials are available?
Leaf: PVC/PET film, baked paint, or SUS finish on galvanized steel; PVC-laminated galvanized steel with protective foil for A-15 models.
Frame: painted steel or stainless steel (with optional stainless door-sill cover plate).
Do you ship FOB or CIF?
EXW/FOB/CIF from Shanghai; other ports on request.
What is the core material?
Rock-wool insulated core for fire protection and sound reduction.
What is the standard leaf thickness?
40 mm (A-0 and A-15).
What are the maximum clear sizes?
Single-leaf: 1000 × 2100 mm.
Double-leaf: 2000 × 2100 mm.
Service window: 1200 × 1000 mm.
(Custom sizes possible within class limits.)
Do you supply double-leaf doors and service windows?
Yes—A-15 double-leaf doors and A-15 service windows are available.
Can we add vision panels?
Yes—standard options: 250×250 mm, 360×360 mm, 360×260 mm, and Ø280 mm round.
What acoustic performance can we expect?
Single-leaf A-15: Rw 36–38 dB (model-dependent).
Double-leaf A-15: up to Rw 39 dB.
What finishes can we choose?
PVC/PET decorative films (incl. wood-grain), baked paint, or stainless-steel (SUS) finish.
Do you supply left- or right-hand doors?
Both. Handing and swing (in/out) per your drawings.
How are the doors installed?
Supplied with steel frames and fixing points for bulkhead mounting. GA drawings and an installation manual provided; pre-hung options can reduce yard time.
Can you meet class society requirements?
Yes—we coordinate with owners/yards and support major class society surveys per project specs.
Do you offer OEM/ODM services?
Yes—branding, labels, and customized spec packages are available.
What documentation do you provide?
GA drawings, BOM, installation guide, material specs, and fire-test reports (on request).
How are the doors packed and shipped?
Export-grade crates/pallets with corner protection; seaborne shipping under standard Incoterms (EXW/FOB/CIF, etc.).
What warranty do you offer?
12 months from delivery against manufacturing defects under normal marine use.
Can you color-match our interior scheme?
Yes—RAL/NCS color matching for painted finishes and a wide choice of PVC/PET films.
How do we start an order?
Send your door schedule/drawings (rating, size, handing, hardware, finish). We’ll return a confirmed datasheet and a quick quotation.
What’s the MOQ?
No strict MOQ for standard models—pilot orders for a few units are welcome.
