A-0 Roller Shutter SupplierIMO-Certified Fireproof Solutions
- Tailor-Made Dimensions for Every Product
- PVC-laminated galvanized steel sheet with protective foil
- Approved by ABS • DNV • BV • LR • CCS • NK • KR • EC
- Delivery 10–20 days after technical docs.
- Quotes in 24h.
Multi-plant sourcing + substitutions reduce schedule risk.
Consolidation, export packing, and full class paperwork.
CSV specs + model matching to your room schedule.
Table Of Contents
Hot Selling Products

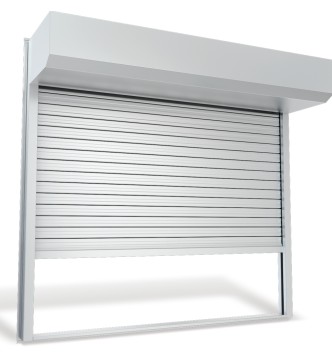

A-0 Class Roller Shutter
- Door leaf: PVC-laminated galvanized steel sheet with protective foil
- Door frame: Steel sheet / Baked paint
- Door leaf Thickness: 17mm
- Max clear size: Wc*Hc=2000*1500 mm
-
Optional fittings: Manual: Optional temperature sensing element 70°C/270°C
Electro: Optional temperature sensing element 70°C/270°C or smoke sensing element
General Applications For A-0 Roller Shutter
| Space / Zone for A-0 Roller Shutters |
|---|

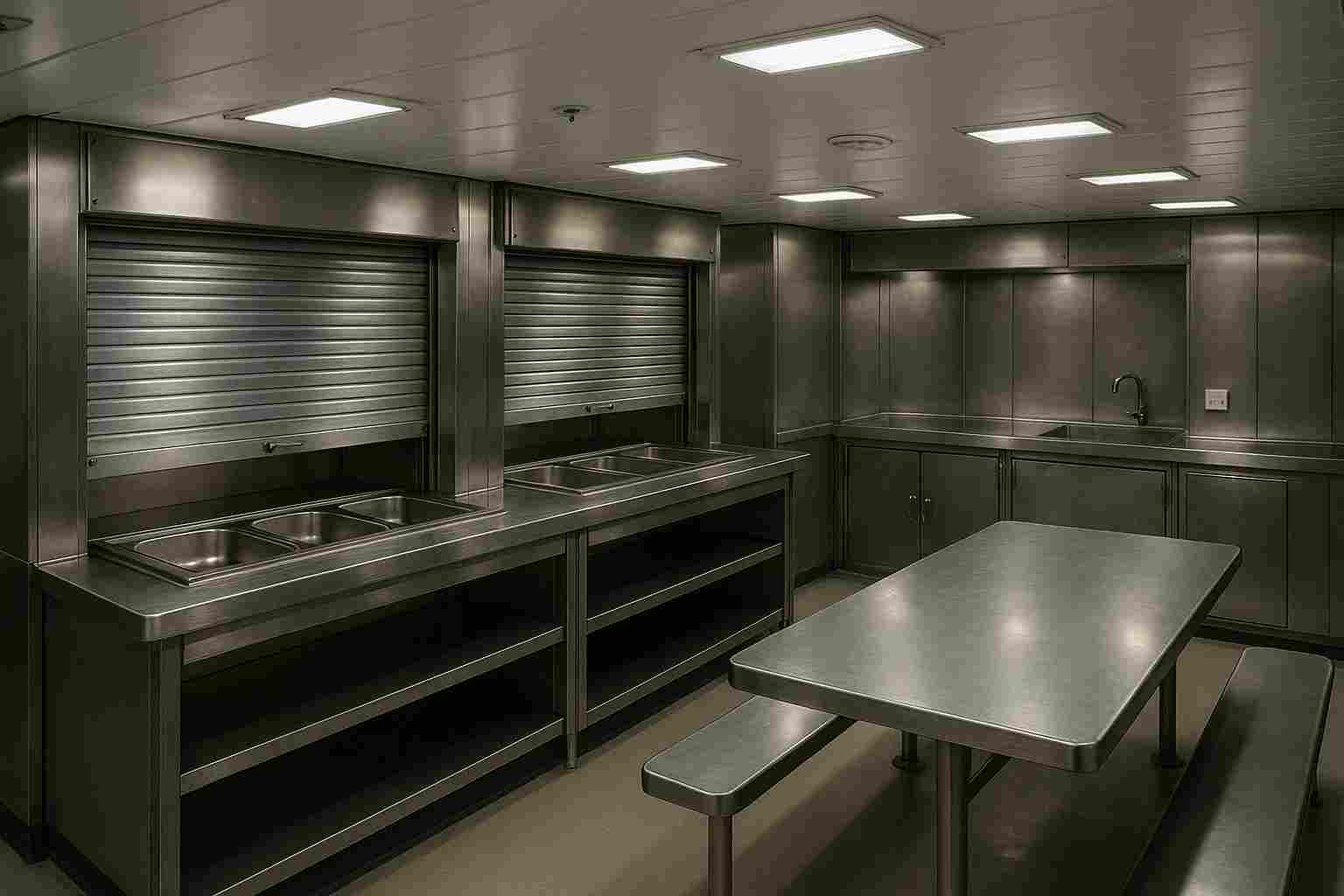

| Galley → mess/dining servery hatches(buffet/service counters). |

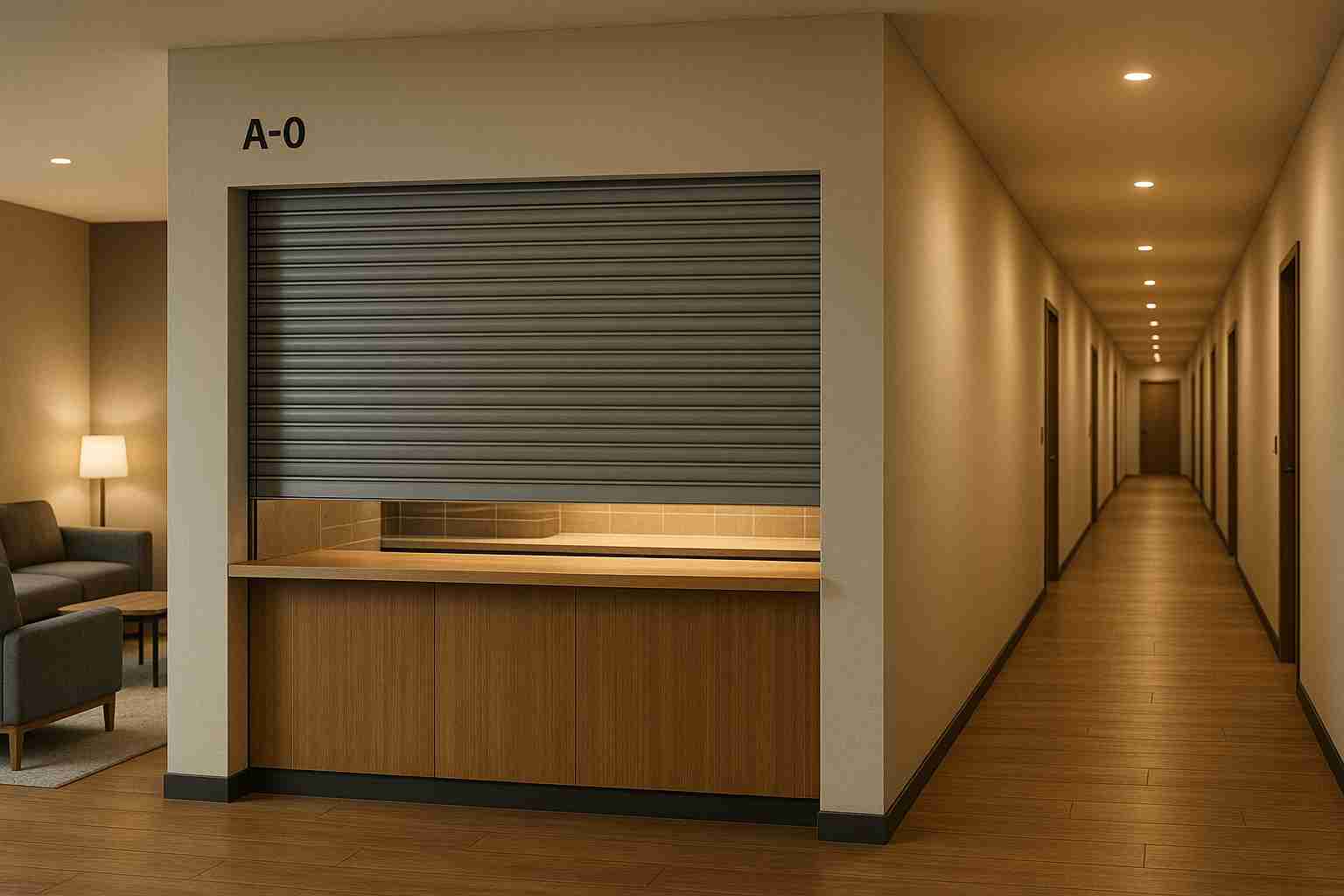

| Bars, pantries, coffee points opening into public rooms or corridors within accommodation. |

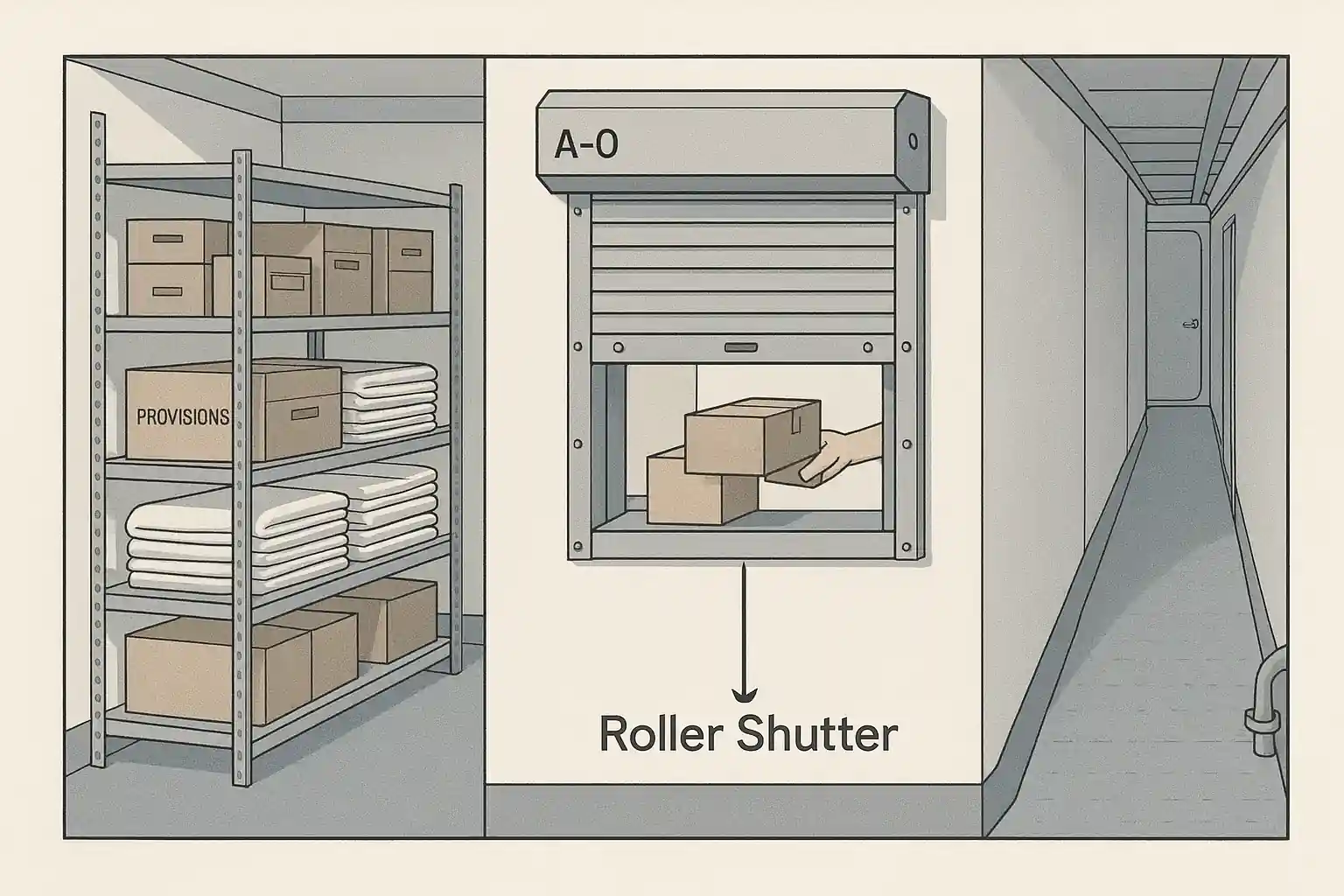

| Stores/linen/provision rooms pass-through hatches to passageways for goods transfer. |
| Dumbwaiter / service-lift landings that open into accommodation zones. |
| Retail kiosks/buffet lines inside deckhouses/public spaces (non-exterior). |
A Brief Self-Nomination, Why Choose Magellan Marine?
- Top Quality in China — vetted supply + multi-class approvals
- Cost-Effective — competitive pricing & optimized export packing
- Common Range — A-0 safety
- Installer-friendly — standard widths, predictable tolerances
The FAQs About A-0 Roller Shutter
What is your lead time?
~10 days after technical docs are confirmed (normal), ~15–20 days when busy.
Do you ship FOB or CIF?
EXW/FOB/CIF from Shanghai; other ports on request.
What’s the MOQ?
No strict MOQ for standard models—pilot orders for a few units are welcome.
Is the shutter IMO/SOLAS compliant?
Yes—designed to meet A-0 requirements; test reports and type approval can be provided on request.
Where is the A-0 roller shutter typically used on a vessel?
Galleys, pantries, stores, corridors, and service counters requiring an A-0 fire barrier.
What materials are used in the door leaf and frame?
Leaf: PVC-laminated galvanized steel with protective foil. Frame: steel sheet with baked-paint finish.
What is the door leaf thickness?
17 mm.
What is the maximum clear opening available?
Up to Wc×Hc = 2000 × 1500 mm (custom engineering on request).
Can you supply custom sizes?
Yes—non-standard openings can be engineered within structural and certification limits.
Do you offer both manual and electric operation?
Yes—manual spring-assist or motorized with a control panel.
What activation or safety trigger options are available?
Thermal links at 70 °C or 270 °C, and an optional smoke sensor for automatic closing.
Can the shutter interface with the ship’s fire alarm or automation system?
Yes—dry contacts/IO are available for alarm input and status feedback.
What power supply does the electric model require?
Standard marine voltages (single-phase or three-phase) can be specified with the order.
What finishes and colors are available?
Baked-paint frame and PVC-laminated leaf are standard; RAL colors and stainless hardware are optional.
How is corrosion protection handled for marine environments?
Galvanized steel and marine-grade coatings are standard; enhanced anti-corrosion packages are available.
How is the shutter mounted and installed?
It mounts to the bulkhead; we supply brackets and drawings for flush or face mounting.
How do you define clear opening versus overall size?
Quoted dimensions are clear opening (Wc×Hc); overall frame size is confirmed on GA drawings.
What documentation will be provided with the shipment?
GA drawings, installation manual, wiring diagram (if electric), material list, and quality certificates.
Can you support approvals from ABS, DNV, LR, BV, or other class societies?
Yes—deliverables can be prepared per the specified society; approval support is available.
What testing is performed before delivery?
Each unit is function-tested; FAT or third-party inspection can be arranged.
Do you provide spare parts and maintenance support?
Yes—motors, slats, seals, sensors, and controls are available with a recommended spares list.
Can you customize controls such as key switch, interlocks, and emergency stop?
Yes—keyswitches, push-buttons, E-stop, timed auto-close, and interlocks can be configured.
What information do you need to prepare a quotation?
Quantity, clear opening (W×H), manual/electric, trigger option (70 °C/270 °C/smoke), voltage, mounting style, finish/color, class society, and delivery port.
