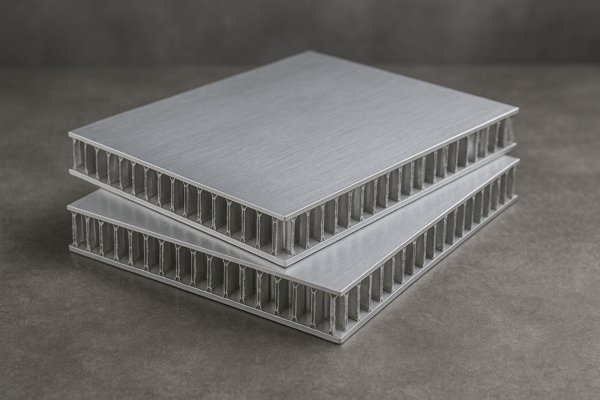

aluminum honeycomb panel Supplier
- Lightweight. Rigid. Marine-ready
- Up to 2×12 m | 5–300 mm | Custom finishes
- Finishes: Brushed / Mirror / Embossed / Textured / Micro-perforated; Wood/Stone, HPL/CPL, PVC/PET, Real wood veneer
- Coatings: Anodized; PVDF / FEVE; Powder; PE / Acrylic / PU., etc.
- Approved by CE • BV • LR • TUV
- Corrosion & fire-performance options | Global delivery
- Delivery 15–35 days after technical docs.
- Quotes in 24h.
Multi-plant sourcing + substitutions reduce schedule risk.
Consolidation, export packing, and full class paperwork.
CSV specs + model matching to your room schedule.
Table Of Contents
Technical Prameter
| Item | Specification |
|---|---|
| Standard Width | 1220mm, 1250mm, 1500mm |
| Standard Length | 2440mm, 3000mm, 6000mm |
| Max Size(W*L) | 2000mm * 12000mm |
| Standard Thickness | 10mm, 12mm, 15mm, 20mm, 25mm |
| Available Thickness | 5mm-300mm |
| Customization | size, shape, patter, color, surface texture, etc. |
Surface Finish, Coating & Colors

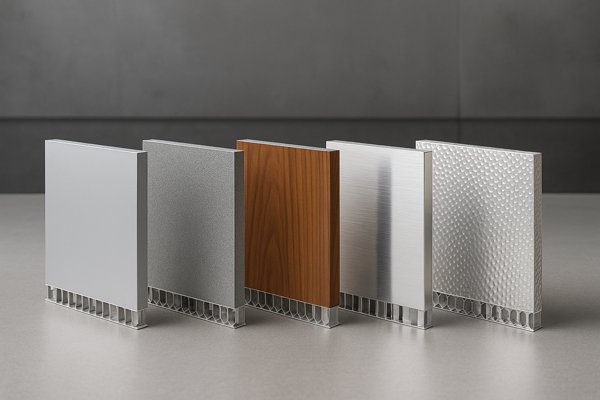

Surface Finish Options
- Solid / Metallic(Matte, satin, high-gloss, metallic/mica effects)
- Textured / Sand / Wrinkle(Scuff-hiding, fingerprint-resistant; interior/exterior)
- Wood-/Stone-grain transfer(Heat-transfer/sublimation/digital print look)
- Brushed / Hairline(Brushed via anodize or paint simulation)
- Mirror / High-gloss(Polished + bright anodize or high-gloss clear.)
- Embossed / Stucco(Hides waviness; durable to handling)
- Micro-perforated acoustic face(For acoustic assemblies)
- Anodized (clear/colored)(Clear/bronze/black, typical 10–25 μm)
- Laminated veneers(HPL/CPL, PVC/PET films, real wood veneer, thin stone)
- Functional clear topcoats(Anti-fingerprint, anti-graffiti, self-cleaning)

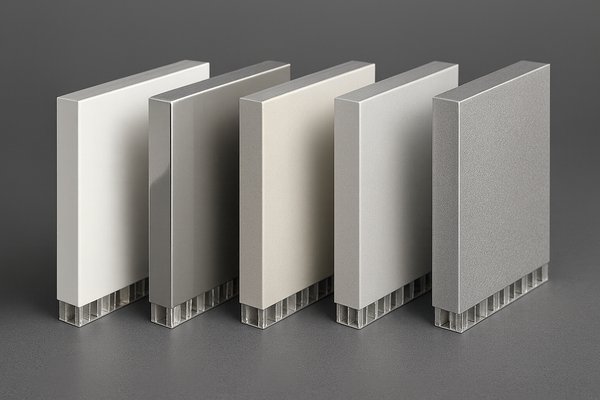

Coating Options
- PVDF fluoropolymer(Best UV/chalk resistance; façade/coastal.)
- FEVE fluoropolymer(higher gloss potential; liquid or powder; architectural exteriors.)
- PE / Acrylic / PU(Cost-effective; mainly interiors/low-exposure.)
- Powder coating (Polyester / FEVE powder)
- Anodizing (inorganic, not paint)
- Primers & Pretreatments

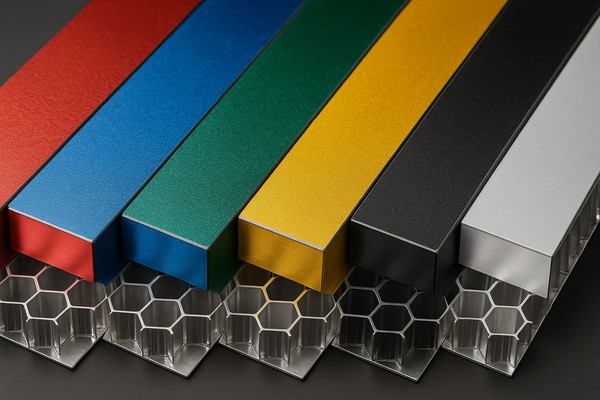

Color Options
- Dozens of standard regular colors
- Accept custom new colors and gloss
General Applications For Aluminum Honeycomb Panels

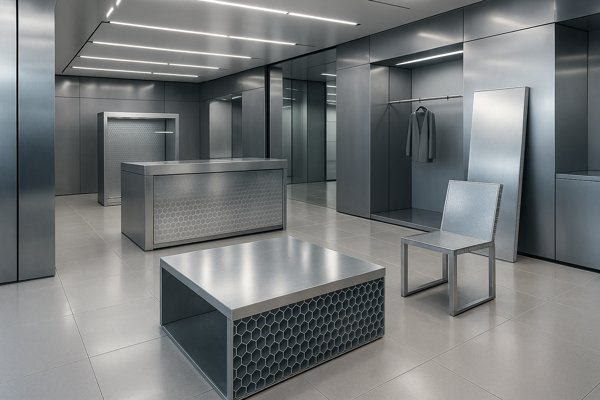

| Architecture & Building | Transportation | Industrial & Clean Environments | Acoustic & Environmental Control | Airflow & Ventilation | Exhibition, Retail & Furniture | Shading & Solar Control |
|---|---|---|---|---|---|---|
| External accommodation boundary (weathertight deckhouse doors) | Rail/metro: sidewalls, ceilings, doors, floors, luggage racks | Cleanroom walls and walkable ceilings | Micro-perforated acoustic wall/ceiling panels | Laminar-flow ceilings (cleanrooms/ORs) | Trade-show booths, stages, platforms | Brise-soleil/sunshades |

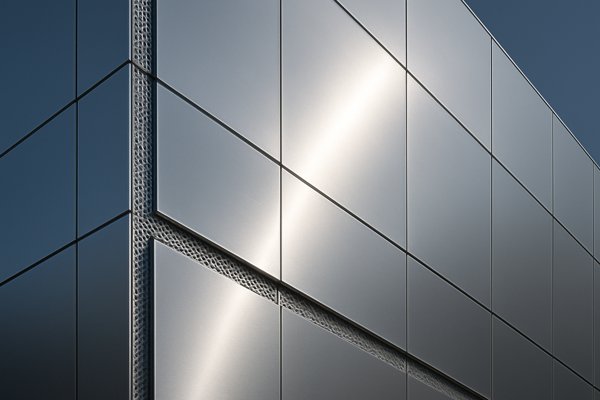

| Exterior and interior ceilings (soffits), wall cladding, partitions | Buses/coaches & specialty vehicles: body panels, interior liners | Laboratory/healthcare partitions and panels | Baffles and clouds for public spaces | Air straighteners for wind tunnels/test rigs | Retail fixtures, counters, shelving, doors | Light shelves and exterior fins |
| Column covers, elevator cab interiors, doors | Marine: bulkheads, cabin walls, wet-area fit-outs, furniture | Machine enclosures, equipment guards, robot cells | Noise-control cladding and linings | HVAC diffusers, plenums, flow-equalizing panels | Lightweight tables, worktops, display/art backers | |
| Raised access floors (skins), stair/ramp cladding | Aerospace (interiors): floors, partitions, galleys, monuments, trolleys | |||||
| Signage, wayfinding, architectural features |
A Brief Self-Nomination, Why Choose Magellan Marine?
- Top Quality in China — vetted supply + multi-class approvals
- Cost-Effective — competitive pricing & optimized export packing
- Installer-friendly — standard widths, predictable tolerances
The FAQs About Aluminum Honeycomb Panels

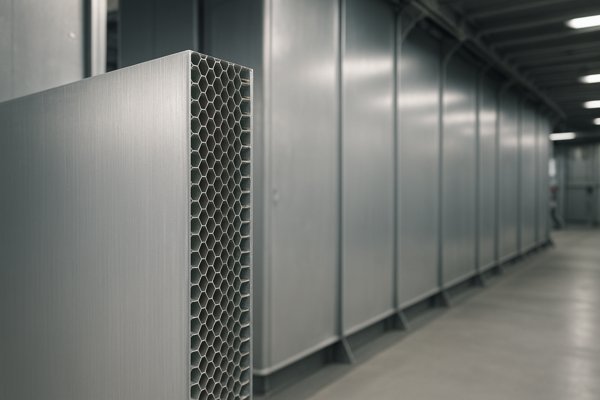

What are aluminum honeycomb panels used for in marine interiors?
Lightweight bulkheads, ceilings, cabins, galleys, wet units, doors, and furniture where high stiffness and weight saving are critical.
What advantages do you offer over solid metal sheets?
Up to ~80% weight reduction with high rigidity, excellent flatness, and corrosion resistance.
What core and skin materials do you supply?
Aluminum honeycomb core (typically 3003/5052) with aluminum skins; other surfaces (HPL, PVC/PET film, veneer, stone veneer) are available on request.
What are the standard sizes?
Widths 1220/1250/1500 mm; lengths 2440/3000/6000 mm; max single panel up to 2000 × 12000 mm (custom cuts available).
What thicknesses are available?
Standard 10/12/15/20/25 mm; custom 5–300 mm per project.
How flat are the panels?
Marine-grade flatness suitable for interior outfitting; tighter tolerances can be specified at order.
Are panels fire-safe for ships?
Yes—systems can be supplied to meet IMO FTP Code (e.g., low flame spread) and, when configured, MED Wheelmark/USCG class approvals. Share your target class and we’ll match the build-up.
Can they be used in wet and coastal environments?
Yes. Aluminum skins and sealed cores provide excellent moisture and salt-spray resistance; select anodized or marine coatings for maximum durability.
What surface finishes are available?
Solid/metallic/matte, textured/sand/wrinkle, wood/stone transfer, brushed/hairline, mirror/high-gloss, embossed/stucco, micro-perforated acoustic, anodized, HPL/film/veneer/stone, and functional clear topcoats (anti-fingerprint/anti-graffiti).
Which coatings do you offer?
PVDF/FEVE for exterior-grade durability (also used for harsh interiors), PE/Acrylic/PU for cost-effective indoor use, plus anodizing.
Can you match corporate or fleet colors?
Yes. RAL/Pantone/NCS matching with sample approval.
Do you supply acoustic panels?
Yes—micro-perforated skins with acoustic backers are available to meet target NRC/SAA values.
How are edges and joints handled?
Options include open edge, aluminum edge-close, PVC/U-cap, T-profiles, and concealed joint systems; we can pre-fabricate to your drawing.
What adhesives and bonding methods are used?
Marine-grade structural adhesives (e.g., epoxy/PU) in controlled lamination; options selected to meet your fire and VOC requirements.
How are panels installed on board?
Commonly with aluminum sub-frames, hat channels, or Z-clips; we provide shop drawings and accessory kits on request.
What about doors, furniture, and curved parts?
We offer CNC cutting, grooving, kerfing, radius forming, and component kits for doors, partitions, and furnitures.
What is the typical panel weight?
Depends on thickness/skin gauge/finish; share your target weight per m² and we’ll specify a matching construction.
Do you provide testing and certifications?
Yes—factory CoC, dimensional and bond-strength reports; third-party fire/corrosion/acoustic tests available upon request.
Are panels recyclable?
Yes—aluminum skins and core are fully recyclable; low-VOC options and RoHS/REACH-compliant builds are available.
How do you ensure quality for export projects?
ISO-based QC, incoming material checks, in-process bond/peel tests, final inspection with traceability, and pre-shipment packing audits.
What is the MOQ?
Flexible by specification; we support pilot batches for approvals and scale for fleet roll-outs.
What is the lead time?
15-35 days
Can you do OEM/ODM with client branding?
Yes—custom specs, back-stamping, packing marks, and documentation sets are available.
How are the panels packed for sea freight?
Corner-protected, film-wrapped, and crated on fumigated pallets/crates with moisture barriers; carton labels and packing lists included.
What Incoterms and payment do you support?
EXW, FOB, CFR/CIF. Standard export payment terms; discuss your project for details.
Do you provide samples?
Yes—A4 panel swatches and color chips; prototype panels available for mock-ups.
How do I get a quotation?
Share drawings or BOQ with size, thickness, finish, target certification, and delivery port; we’ll return a detailed spec and unit price.
What after-sales support is included?
Installation guidance, maintenance advice, replacement panels, and warranty per agreed specification and service conditions.
How should panels be cleaned and maintained?
Use mild neutral detergent and soft cloth; avoid abrasive pads and strong alkalis/solvents unless the coating system permits.
