Are Marine Fire Divisions the Same as Marine Panel Ratings?

Confusion between individual panel ratings and total division compliance causes costly rework in shipyards daily. Are you risking project approval by treating them as identical?

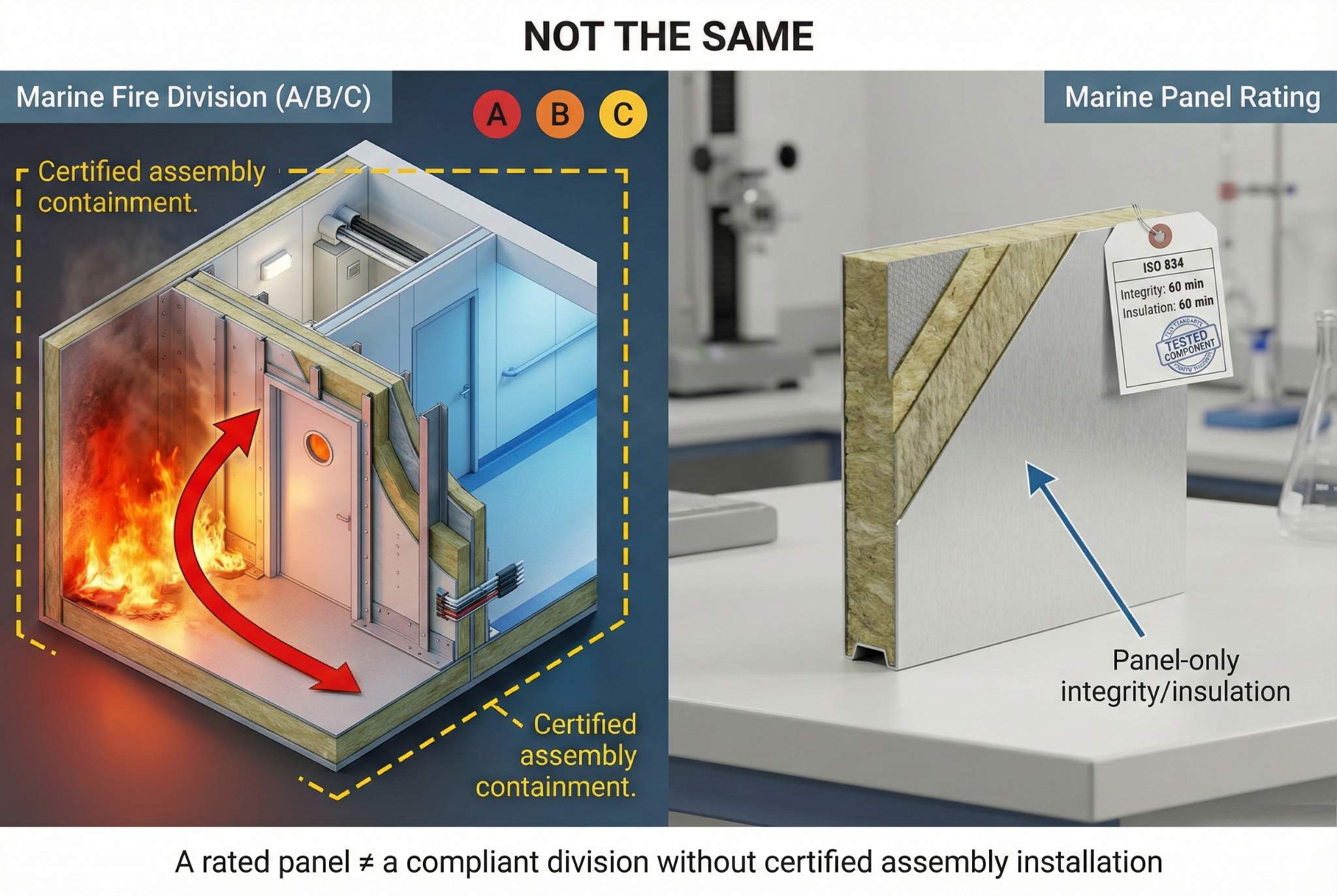

No, they are not the same. A marine fire division refers to the certified containment capability of the entire assembly (A, B, or C Class) acting as a barrier, whereas a marine panel rating refers only to the fire integrity and insulation performance of that specific component. You cannot assume a rated panel automatically results in a compliant division without a certified assembly installation.

It is a common scenario I faced at Magellan Marine: a procurement officer buys "A-60 panels" and assumes the job is done. But when the inspector arrives, the bulkhead fails because the profiles or installation methods didn't match the division certificate. Understanding this distinction is vital for your budget and schedule.

How Are Marine Fire Divisions Defined by SOLAS Regulations?

Safety regulations are dense, but missing the definition of a fire division can lead to immediate inspection failure. What exactly does SOLAS require for these barriers?

SOLAS Chapter II-2 Regulation 3 defines marine fire divisions by their ability to prevent the passage of smoke and flame (integrity) and limit temperature rise (insulation) on the unexposed side for specific durations: 60, 30, 15, or 0 minutes. They are legally categorized into A-Class (steel or equivalent), B-Class (non-combustible materials), and C-Class (non-combustible only).

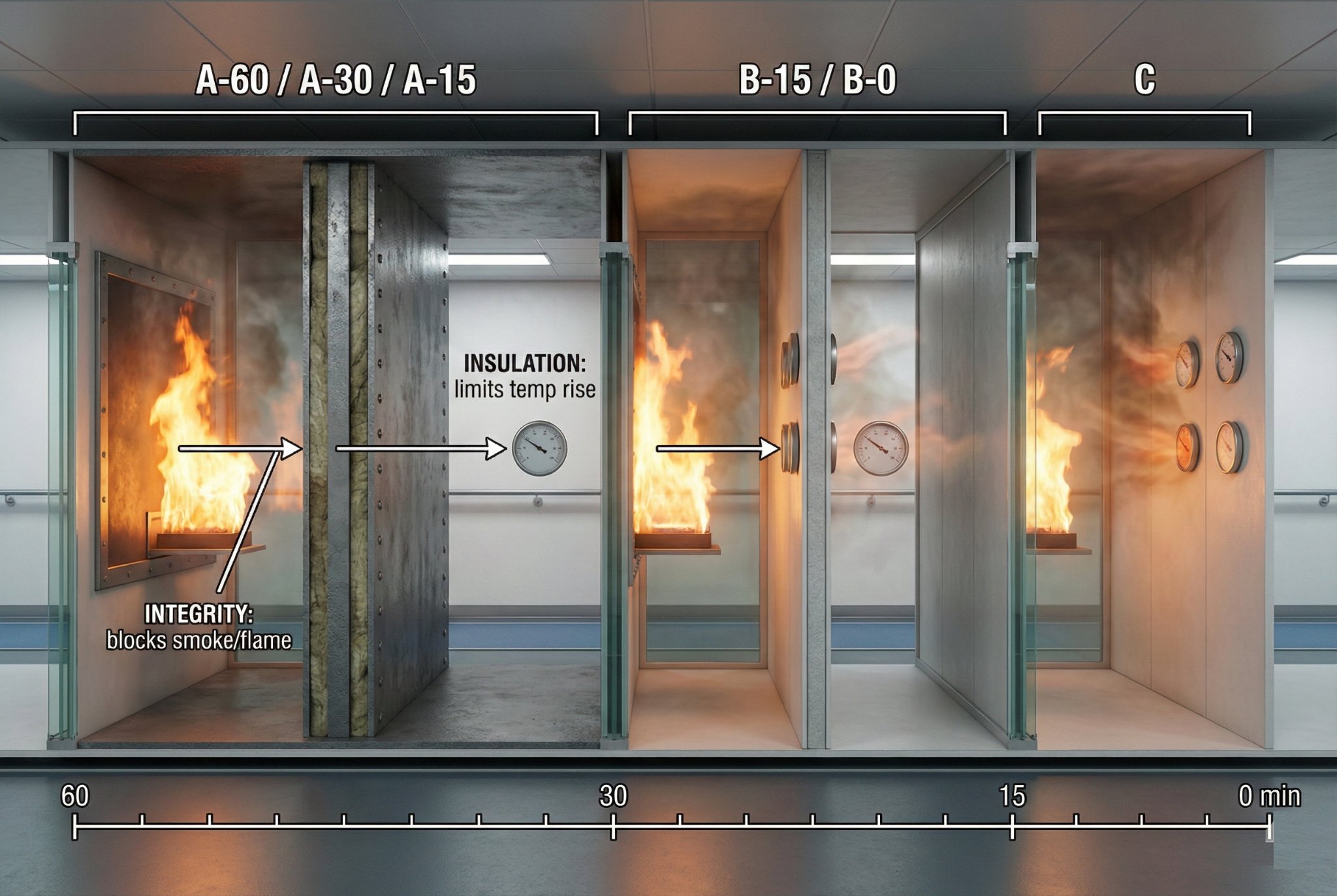

The Three Pillars of SOLAS Fire Division Standards

To understand fire divisions, I always tell my clients to look at the "Three Pillars" defined by the International Maritime Organization (IMO). It is not just about burning; it is about time and temperature.

1. Material Composition: The division must be constructed of specific materials. For A-Class, this means steel or an equivalent material. For B-Class and C-Class, the materials must be approved non-combustible materials.
2. Integrity (Flame & Smoke Prevention): This is the ability of the bulkhead or deck to stop flames and smoke from passing through to the other side.
   • A-Class: Must maintain integrity for 60 minutes in a standard fire test.
   • B-Class: Must maintain integrity for 30 minutes.
3. Insulation (Temperature Limitation): This is often the hardest part to pass. The unexposed side (the side away from the fire) must not get too hot.
   • Average Temperature Rise: Cannot exceed 140°C above the initial ambient temperature.
   • Maximum Temperature Rise: At any single point (like a joint or screw head), it cannot exceed 180°C above ambient (or 225°C for B-Class).

Comparison of SOLAS Division Requirements

When you are buying materials, you need to match the product to the specific class required by the ship's fire control plan. Here is the breakdown I use when consulting on interior specs:

Is Non-Combustibility a Mandatory Requirement for Marine Fire Divisions?

Many buyers assume "fire-resistant" means non-combustible, but buying the wrong core material creates a massive fire hazard. Is strict non-combustibility always required?

Yes, for A-Class and B-Class divisions, using non-combustible materials is mandatory under the IMO FTP Code. While the insulation and core must be strictly non-combustible, limited combustible veneers (maximum 1.5mm thickness for bulkheads) are permitted on the surface if they meet low flame-spread characteristics and calorific value limits.

Defining Non-Combustible Materials per ISO 1182

In my years at the factory, I saw many "fire-retardant" materials fail because they were not truly "non-combustible." There is a big difference. "Non-combustible" is a specific technical designation determined by the ISO 1182 test. During this test, a sample is placed in a furnace at 750°C.

To pass, the material must meet three strict criteria:

1. Temperature Rise: The furnace temperature cannot rise more than 30°C.
2. Flame Duration: Any sustained flaming must not last longer than 10 seconds.
3. Mass Loss: The sample cannot lose more than 50% of its mass.
   If your core material (like rock wool or ceramic fiber) meets this, it is non-combustible. If you buy a cheap composite that burns for 15 seconds, it is rejected.

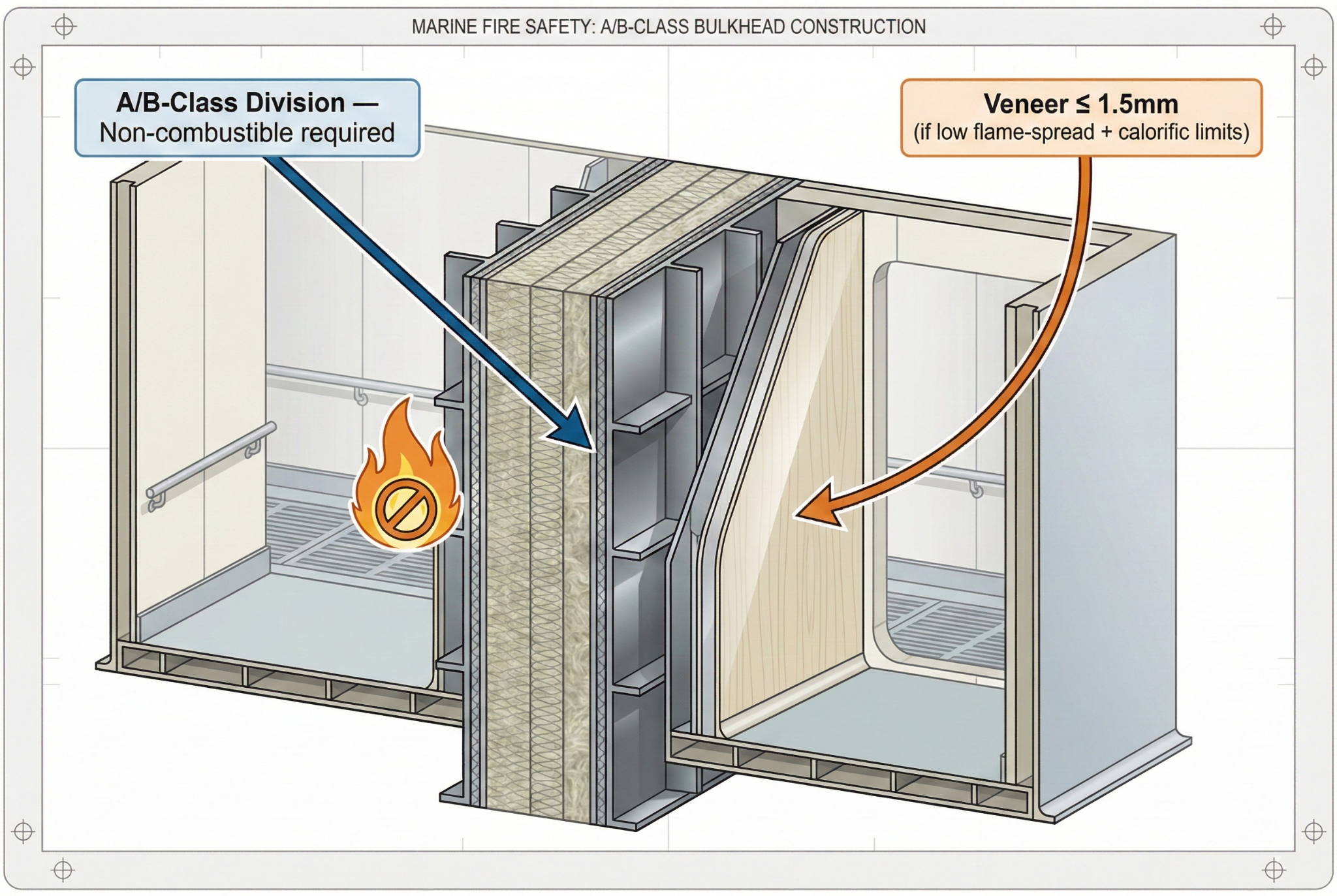

Allowances for Combustible Veneers in Marine Interiors

You want the ship to look good, so you cannot just have bare steel or rock wool. SOLAS allows us to use combustible veneers (like PVC or HPL) on top of the non-combustible division, but the rules are very strict to prevent flashover.

• Thickness Limit: For bulkheads and ceilings, the combustible veneer cannot exceed 1.5 mm in thickness.
• Calorific Value: The total volume of combustible material determines the fire load. The calorific value generally must not exceed 45 MJ/m² of surface area for the thickness used.
• Low Flame Spread: Even if it is thin, the surface must pass the surface flammability test (IMO FTP Code Part 5¹) to ensure fire does not race across the wall.

How Are Fire Ratings Determined for Marine Wall and Ceiling Panels?

A certificate usually says "B-15," but do you know how that number is actually achieved in the lab? Understanding the test prevents you from buying panels that won't perform.

Ratings are determined through standard fire tests (IMO FTP Code Part 3) measuring integrity and insulation performance. A panel achieves a rating like B-15 only if it physically stops flames preventing passage and keeps the unexposed side cool (maintaining an average temperature rise below 140°C) for the full 15 minutes during a furnace test.

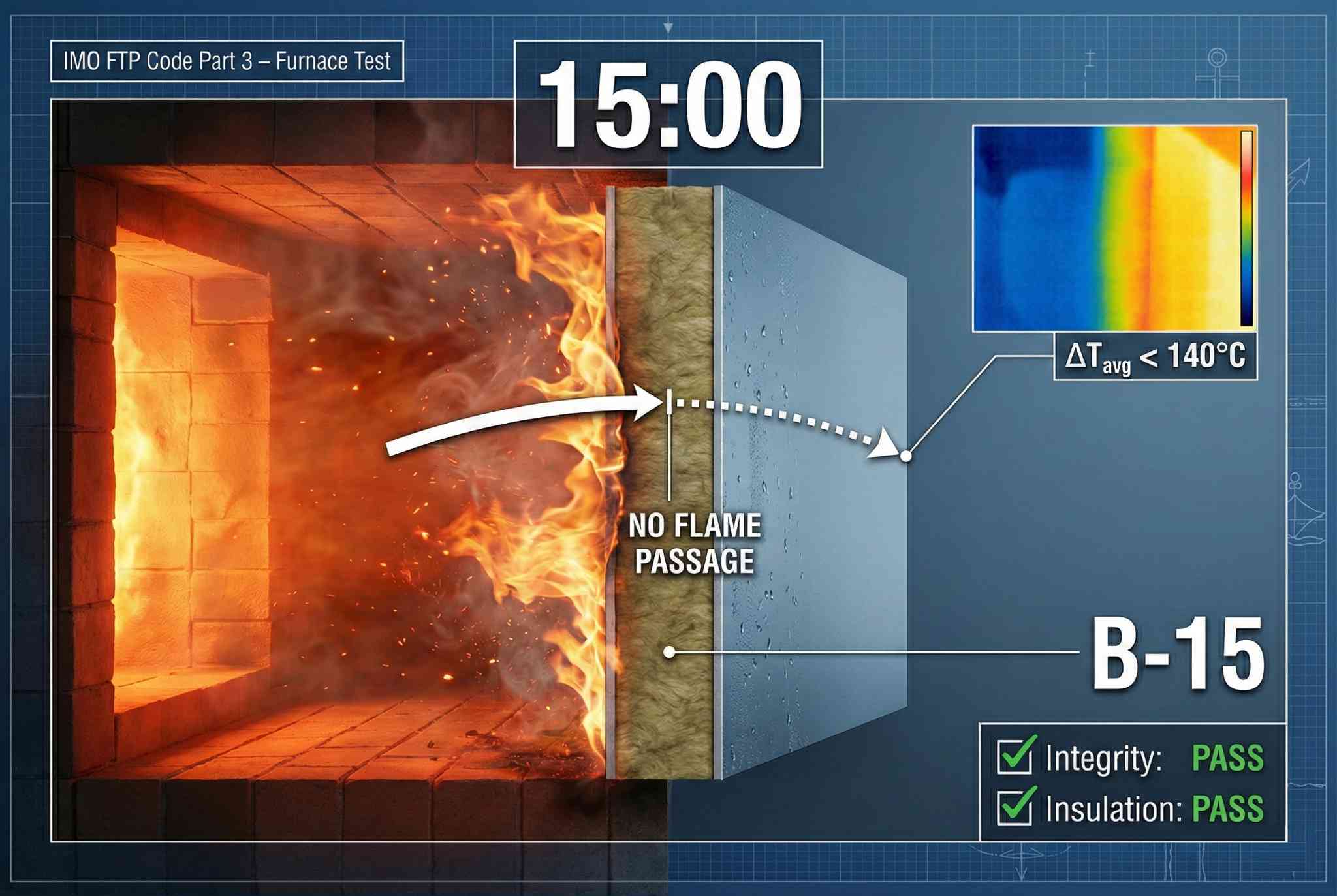

The Standard Fire Test Procedure (IMO FTP Code Part 3)

When I worked with testing labs, the procedure was intense. We would mount a sample bulkhead—usually 2.44 meters wide by 2.5 meters high—into a test frame. This frame is clamped to a giant furnace.

Once the test starts, the furnace follows a standard time-temperature curve.

• At 5 minutes, the furnace is roughly 576°C.
• At 15 minutes, it reaches 738°C.
• At 30 minutes, it hits 842°C.
• At 60 minutes, it is up to 945°C.

If you are buying a B-15 panel, that panel has to sit in that 738°C heat. The rock wool core must stop that heat from transferring to the back. If the back of the panel gets hot enough to boil water (above 100°C rise), you fail.

Integrity vs. Insulation Failure Points

It is important to know why panels fail tests so you can inspect them properly on arrival.

1. Integrity Failure: This happens if the panel cracks, collapses, or if flames flicker through a joint for more than 10 seconds. I have seen cheap glue fail, causing the steel skin to delaminate and the core to fall out. That is an instant failure.
2. Insulation Failure: This is more subtle. The panel looks fine, but the thermocouples on the back read 181°C (above ambient). This usually happens at the joints (splines) where there is a thermal bridge. This is why the design of the joint profile is just as important as the panel itself.

What Distinguishes a Complete Fire Division from Individual Marine Panels?

This is the most critical distinction for a procurement officer: buying a "product" versus buying a "system." Why is the single panel not enough?

A fire division is the total certified system, including panels, joint profiles, ceiling supports, doors, and internal insulation, tested together as a unit. A marine panel is just one component. A division requires the precise interaction of all parts to pass thermal criteria and structural stability, which a single panel cannot guarantee on its own.

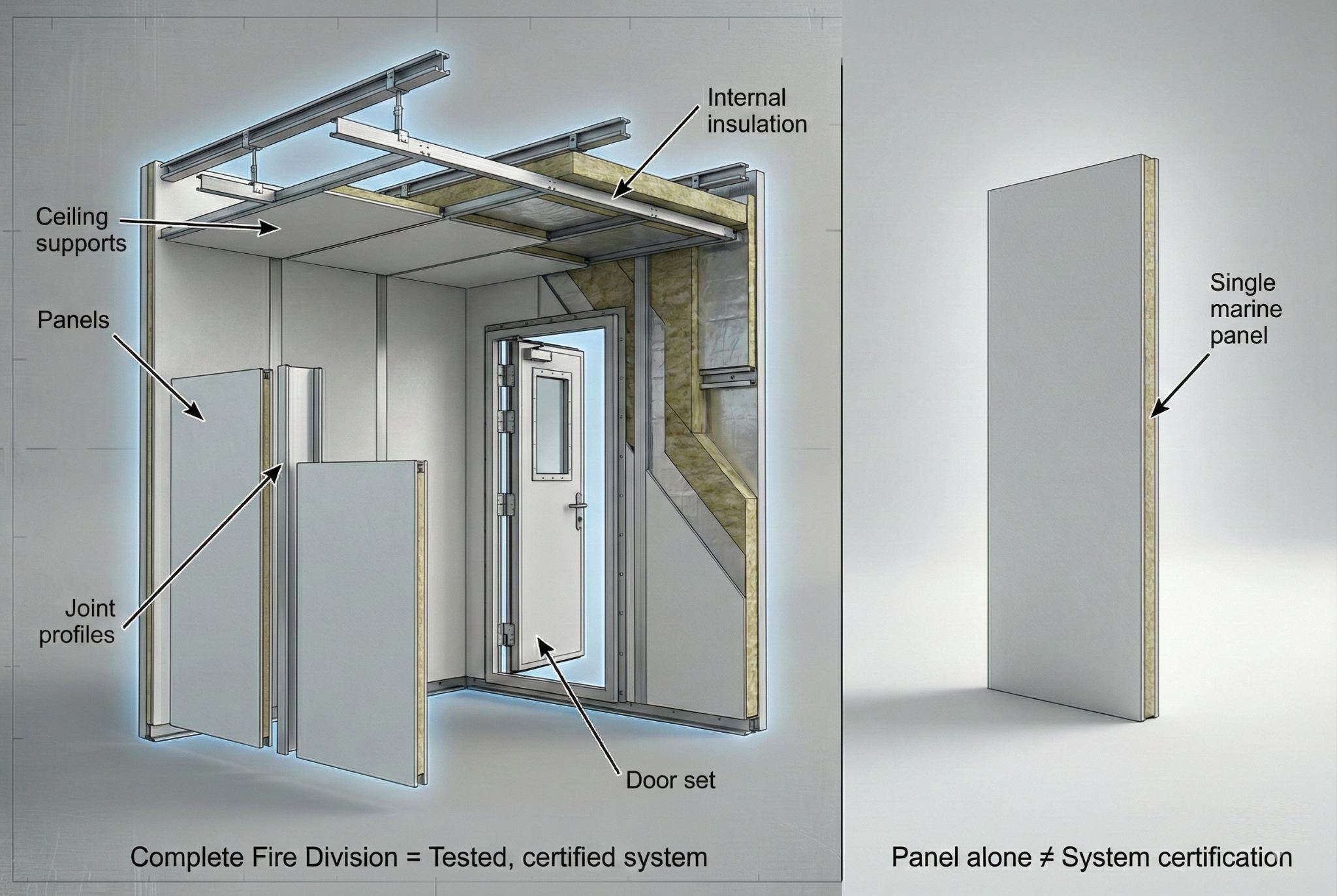

The "System" Concept in Marine Outfitting

When I supply a "B-15 Bulkhead," I am not just sending a pallet of sandwich panels. I am providing a system. This distinction is crucial because the Type Approval Certificate² covers the assembly.

A complete division includes:

• The Panel: The main barrier (steel + rock wool).
• The Joint Profile: The specific spline or tongue-and-groove connection that holds panels together.
• The Top and Bottom Profiles: The U-channels that secure the panel to the deck and deckhead.
• Fixing Accessories: The specific rivets or self-tapping screws used.

If you buy a panel from Supplier A and a U-profile from Supplier B, you have broken the "system." You no longer have a certified fire division because that specific combination was never tested in the furnace.

Why Individual Components Fail Alone

Think about a chain. The panel is a strong link. But the division is the whole chain.

• Thermal Expansion: In a fire, steel expands. A 2.4-meter panel might grow by 10mm to 15mm in height during a fire. A certified division has an expansion gap designed into the top profile to accommodate this.
• Gas Tightness: An individual panel is gas-tight. But if you place two panels next to each other without the certified spline and ceramic wool insulation in the joint, smoke will pour through the gap in seconds. The panel is fine; the division has failed.

Does the Installation Method Impact the Final Marine Fire Rating?

You can buy the most expensive A-60 panels in the world, but can a careless contractor ruin the rating during installation?

Yes, installation is critical and can easily void the rating. Using incorrect screw spacing, leaving gaps exceeding 3mm, mixing incompatible profiles, or missing insulation in the joints will cause the division to fail. A B-15 panel installed with non-certified methods will not perform as a B-15 division during a fire or inspection.

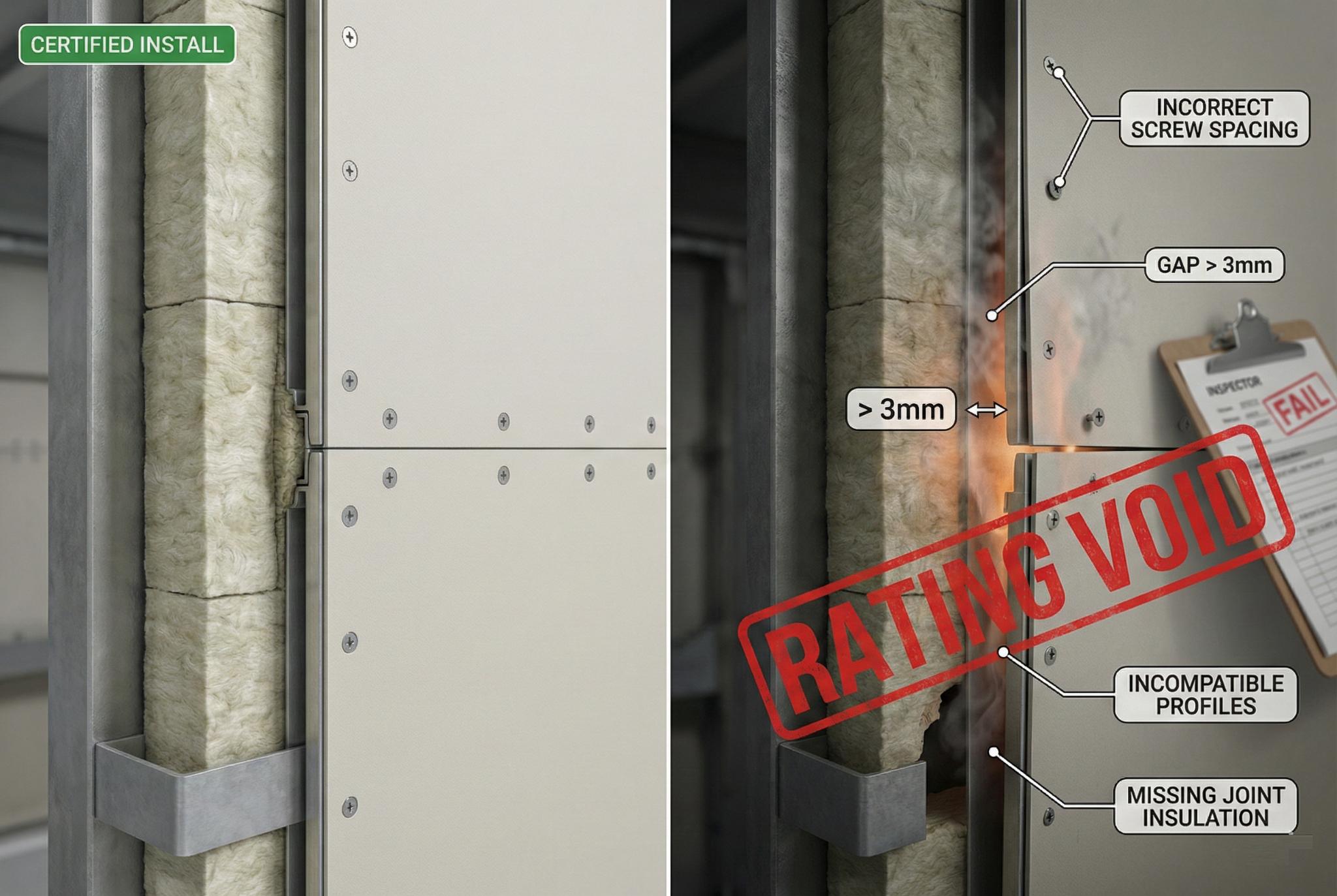

Critical Installation Tolerances

In my experience inspecting Asian shipyards, 80% of fire integrity issues are workmanship, not material. The Type Approval certificate usually comes with an "Appendix" or "Installation Manual." This is not a suggestion; it is the law.

1. Screw Spacing: If the manual says screws every 300mm, and the worker installs them every 500mm to save time, the panel may warp and detach during the intense heat of a fire.
2. Expansion Gaps: As mentioned, panels expand. If the installer forces the panel tight against the steel deckhead without the required 20-30mm gap inside the U-channel, the panel will buckle and bow outward, breaking the seal.
3. Joint Insulation: Many B-15 profiles require a strip of ceramic fiber paper or loose wool inside the joint profile. It is invisible once installed. If the worker forgets it, heat will transfer through the steel profile, exceeding the 180°C limit on the back side.

The Hidden Danger of Field Modifications

Often, installers cut holes for cables or pipes on site.

• Allowable Gaps: Generally, gaps between panels must be 0mm (tight fit). Gaps between the panel and the profile usually have a tolerance of 1-3mm depending on the design.
• Penetrations: You cannot just drill a hole and leave it. Every cable transit must be sealed with a certified marine fire stop compound. I have seen clear B-15 bulkheads fail inspection because a worker drilled a 10mm hole for a LAN cable and didn't seal it. That tiny hole destroys the "Integrity" of the division.

Can High-Rated Marine Panels Guarantee a Compliant Fire Division?

If I buy A-60 panels for a B-15 requirement, surely I am safe? Or does over-specifying components still leave room for failure?

No, high-rated panels do not guarantee compliance. If you use A-60 panels but install them with B-class profiles, leave uninsulated penetrations, or use improper fixing methods, the division fails. The weakest link determines the division's rating, not the highest-rated component in the assembly.

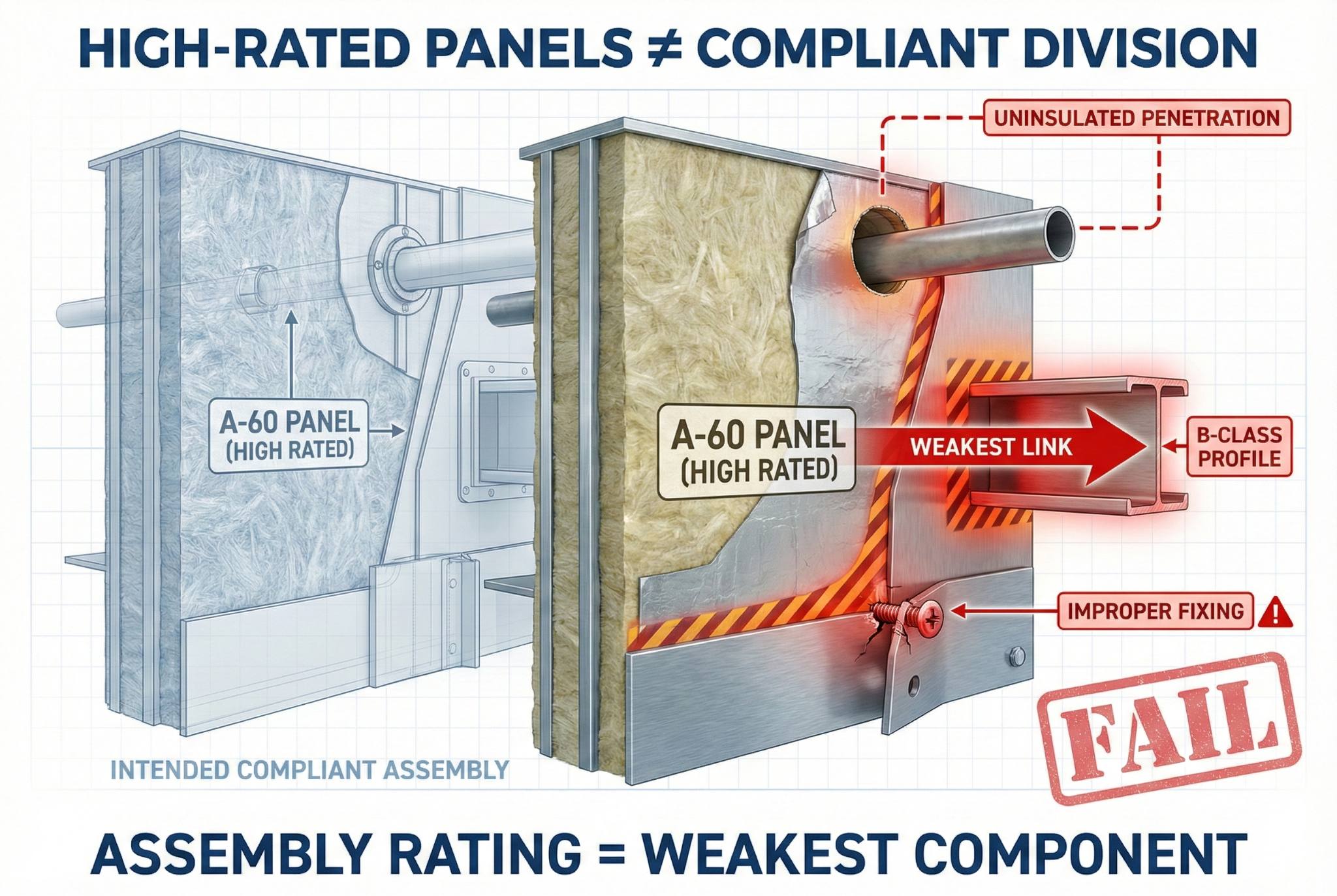

The "Weakest Link" Principle

In engineering, we have a rule: The rating of the assembly is equal to the rating of its lowest-performing component.

• Scenario: You buy expensive A-60 panels (high density, steel core).
• Mistake: You install them using B-15 aluminum profiles to save weight or cost.
• Result: In a fire, aluminum melts at roughly 660°C. The fire test reaches that temperature in under 10 minutes. Your heavy-duty A-60 panels will fall over in 10 minutes because the frame melted. The entire division is now rated A-0 or worse, regardless of how good the panels are.

Mismatched Component Scenarios

I often help clients troubleshoot why their designs were rejected by Class Societies (like DNV, BV, or ABS). It is usually a mismatch.

1. Door vs. Wall: If you put a B-0 door in a B-15 bulkhead, the entire bulkhead is downgraded to B-0. The fire will burn through the door in 5 minutes, rendering the 15-minute protection of the wall useless.
2. Windows: Installing a standard non-fire-rated window in an A-60 bulkhead voids the A-60 rating. You must use an A-60 rated window box and glass.
3. Cable Transits: As discussed, a single unsealed cable transit makes an A-60 wall an A-0 wall.

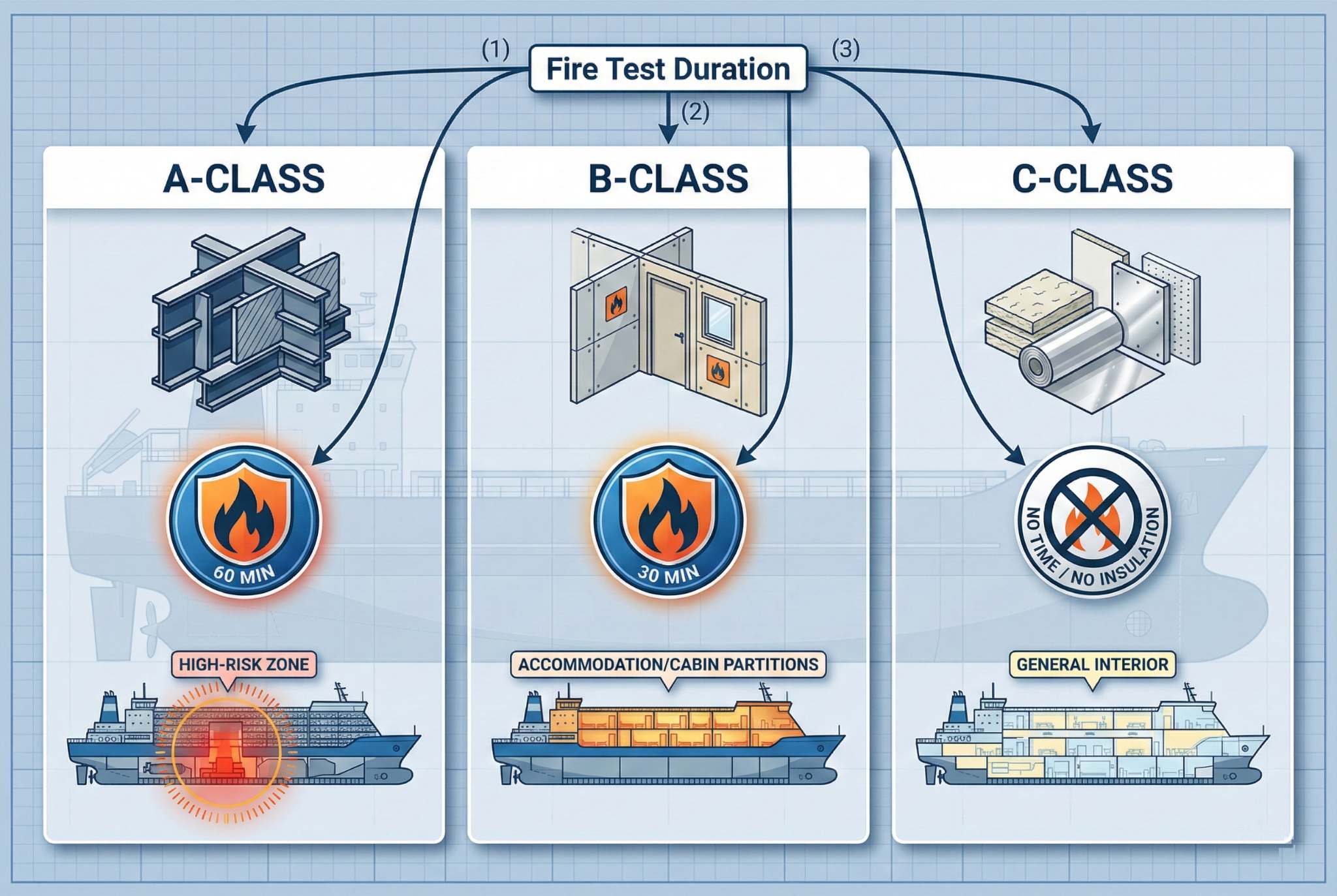

What Are the Specific Differences Between A-Class, B-Class, and C-Class Marine Divisions?

Knowing the letters is one thing, but knowing where to put them saves money. Why pay for A-Class when C-Class is legally allowed?

A-Class withstands fire for 60 minutes and is typically steel-structured for high-risk zones. B-Class withstands fire for 30 minutes, using non-combustible materials for cabin partitions. C-Class requires non-combustible materials but has no time integrity or insulation requirement. They differ in material composition, testing duration, and permitted locations on the ship.

Application of A-Class Divisions

A-Class is the "heavy armor" of marine fire protection.

• Location: You will find these separating high-risk areas. For example, the bulkhead between the Engine Room and the Accommodation Area must be A-60.
• Structure: They are almost always stiffened steel bulkheads insulated with rock wool.
• Cost: Highest. The material is heavy, and the insulation is thick (often 40-70mm depending on the manufacturer).

Application of B-Class Divisions

B-Class is the standard for "living areas."

• Location: These form the walls of your cabins, corridors, and messes. They protect passengers and crew in their sleeping quarters.
• Structure: Usually sandwich panels (steel sheets with mineral wool core). They are lighter and more aesthetic than A-Class.
• Cost: Moderate. This is the bulk of your interior budget.

Application of C-Class Divisions

C-Class is the "minimum standard."

• Location: Used where fire risk is negligible. For example, partitions inside a sanitary unit (toilet) or a wet room. Note: The wall separating the cabin from the corridor must be B-Class, but the wall separating the shower from the toilet inside the cabin can be C-Class.
• Structure: Still non-combustible (you cannot use wood), but it doesn't need to pass the 30-minute burn test.
• Cost: Lowest.

Conclusion

Marine fire divisions are certified systems, not just panels. While panels provide the rating potential, the division requires correct profiles, accessories, and installation to meet SOLAS A, B, or C-Class standards.
