Marine Wall Panel SupplierIMO-Certified Fireproof & Acoustic Solutions
- A-60 / A-30 / B-15 / B-0
- 600 / 550 mm · up to 3000 mm
- Rock Wool / Glass Wool / Alu Honeycomb
- PVC Film / PET Film / Painted
- Approved by ABS • DNV • BV • LR • CCS • NK • KR • EC.
- Delivery 30–40 days after technical docs.
- Quotes in 24h.
- Samples available.
On-time supply
Multi-plant sourcing + substitutions reduce schedule risk.
Export-ready
Consolidation, export packing, and full class paperwork.
Built for BOQs
CSV specs + model matching to your room schedule.
Table Of Contents
Hot Selling Products

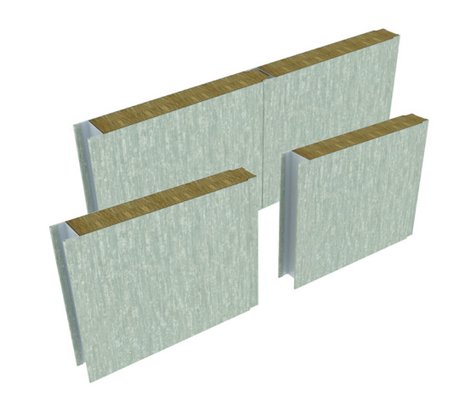

Type A Panels
- Fire class: A-30 / B-15 / B-0
- Max length: 3000 mm
- Width: 600 / 550 mm
- Thickness: 25–100 mm
- Weight: 10.2–26.8 kg/m²
- STL/NRC: 30–50 dB
- Thermal transmittance: 0.35–3.78W/(m²·K)
- Surface finish: PVC / PET / HL-3 · GI
- Core: Rock Wool / Aluminum honeycomb / Aluminum honeycomb + Fireproof board

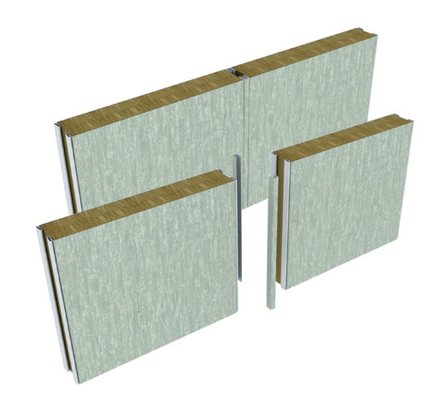

Type C Panels
- Fire class: A-60 / A-30 / B-15 / B-0
- Max length: 3000 mm
- Width: 600 / 550 mm
- Thickness: 25–100 mm
- Weight: 9.8–33.5 kg/m²
- STL/NRC: 29–50 dB
- Thermal transmittance: 0.35–3.78W/(m²·K)
- Surface finish: PVC / PET / HL-3 · GI
- Core: Rock Wool / Glass Wool / Aluminum honeycomb / Fireproof board / Aluminum honeycomb + Fireproof board

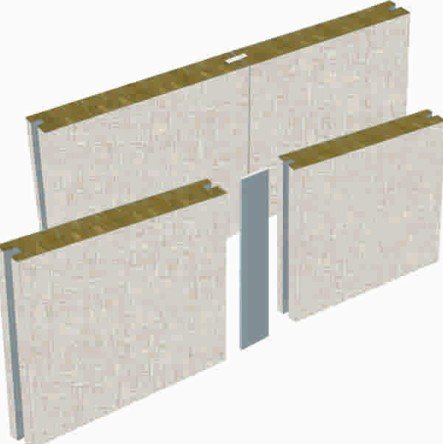

Type M Panels
- Fire class: B-15
- Max length: 3000 mm
- Width: 600 / 550 mm
- Thickness: 25 / 50 mm
- Weight: 16.7 / 13.3 kg/m²
- STL/NRC: 35 / 32 dB
- Thermal transmittance: 0.8 / 1.3 W/(m²·K)
- Surface finish: PVC / PET / HL-3 · GI
- Core: Rock Wool
Type A/C/M Acoustic Panels
- Fire class: B-15
- Max length: 3000 mm
- Width: 600 / 550 mm
- Thickness: 50 / 75 mm
- Weight: 18.3–25.5 kg/m²
- STL/NRC: 45 / 50 dB
- Thermal transmittance: 0.8–1.3W/(m²·K)
- Surface finish:PVC / PET / HL-3 · GI
- Core: Rock Wool
Type A/C Perforated Sound-Absorbing Panels
- Fire class: B-15
- Max length: 3000 mm
- Width: 600 / 550 mm
- Thickness: 25 / 30 mm
- Weight: 12.1 / 12.8 kg/m²
- STL/NRC: 33 dB
- Thermal transmittance: 1.25 / 1.3 W/(m²·K)
- Surface finish:PVC / PET / HL-3 · GI
- Core: Rock Wool
Type A/C/M Panels(With Cable Slot)
- Fire class: B-15
- Max length: 3000 mm
- Width: 600 / 550 mm
- Thickness: 50 mm
- Weight: 15.1 / 15.6 / 16.5 kg/m²
- STL/NRC: 35 dB
- Thermal transmittance: 0.8W/(m²·K)
- Surface finish:PVC / PET / HL-3 · GI
- Core: Rock Wool
General Applications For Marine Wall Panels
| Space / Zone | Recommended Fire Class |
|---|---|
| Cabins & Offices | B-15 / B-0 (+ Perforated) |
| Corridors & Public Spaces | B-15 (acoustic optional) |
| Control Rooms / Bridges | A-30 / B-15 acoustic |
| Near Higher-Risk Boundaries | A-60 / A-30 |
| Offshore Modules / MEP-Dense | B-15 with conduit |
A Brief Self-Nomination, Why Choose Magellan Marine?
- Top Quality in China — vetted supply + multi-class approvals
- Cost-Effective — competitive pricing & optimized export packing
- Complete Range — from A-60 safety to 50 dB acoustic & perforated NRC
- Installer-friendly — standard widths, predictable tolerances, cable-conduit panels
The FAQs About Marine Wall Panels
What fireproof classes are available?
A-60, A-30, B-15, B-0 across multiple panel families.
Can the panels be customized in color/finish?
Yes — PVC / PET / HL-3 films/Painted and galvanized steel skins.
What is your lead time?
~30 days after technical docs are confirmed (normal), ~35–40 days when busy.
Is there a minimum order quantity (MOQ)?
Varies by model/finish; send your BOQ and we’ll optimize batches.
Do you ship FOB or CIF?
EXW/FOB/CIF from Shanghai; other ports on request.
Can you provide samples?
Yes — standard finish samples typically ship in 3–5 days where stock exists.
How are panels packed?
Palletized, corner-protected, with photo evidence before dispatch.
