How Is Bonding Quality Inspected in Marine Accommodation Panels?

Are your marine wall panels failing after installation? Delamination ruins projects and hurts your profit. I will show you how to inspect panel bonding to ensure top quality.

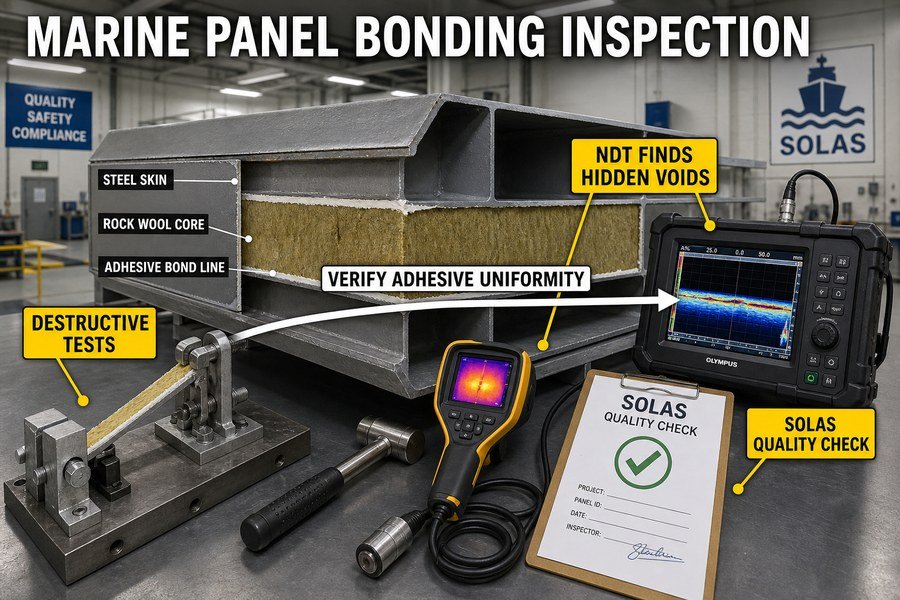

Bonding quality in marine accommodation panels is inspected through a combination of destructive tests (like peel and tensile strength tests) and non-destructive testing (NDT) methods (such as ultrasonic testing, tap testing, and thermography). These methods verify adhesive uniformity, detect hidden voids, and ensure SOLAS compliance.

You might think a simple visual check is enough. But hidden flaws cost you time and money. Let me break down the exact tests you need to know.

Which Tests Detect Delamination in Marine Accommodation Panels?

Does the surface of your marine ceiling panel peel off easily? Poor adhesion causes fast delamination. Let us look at the exact tests to stop this problem.

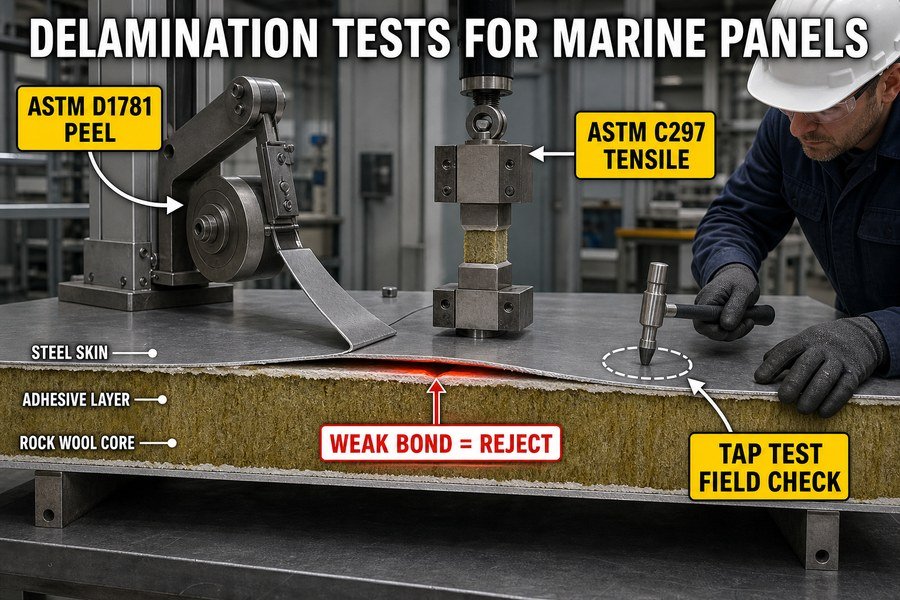

Three main tests detect delamination in marine panels: the Climbing Drum Peel Test (ASTM D1781) for surface adhesion, the Flatwise Tensile Test (ASTM C297) for core-to-skin bond strength, and the manual Tap Test for quick field checks. All three ensure layers stay securely attached.

Knowing the test names is just the start. You need to know how they work and why marine outfitting factories use them.

Climbing Drum Peel Test (ASTM D1781) for Surface Adhesion

When I worked at the factory, we used the Climbing Drum Peel Test every day. This test checks how well the metal skin sticks to the core material. The machine rolls a drum over the panel. It pulls the skin away from the core. We measure the force needed to peel the skin. The standard we follow is ASTM D1781. This test is great for sandwich panels. If the skin peels too easily, the glue is bad. The factory must reject the batch. We usually test a small sample from every production run. This prevents bad panels from reaching your shipyard.

Flatwise Tensile Test (ASTM C297) for Core-to-Skin Bond Strength

The second test is the Flatwise Tensile Test. We use the ASTM C297 standard for this. This test pulls the panel apart in a straight line. We glue metal blocks to both sides of the panel sample. Then, a machine pulls the blocks in opposite directions. This shows us the bond strength between the core and the skin. For a standard rockwool marine wall panel, the flatwise tensile strength must be at least 0.1 MPa (Megapascals) according to general marine class rules¹. If the core breaks before the glue fails, the bond is strong enough.

Manual Tap Test for Quick Field Checks

The third test is the manual Tap Test. This is the oldest trick in the book. You do not need a machine. You just need a coin or a small hammer. You tap the surface of the marine accommodation panel. A good bond makes a sharp, clear sound. A bad bond makes a dull, flat sound.² We use this test to quickly check large areas. It cannot give us exact numbers. But it finds big problems fast.

What Peel Strength Is Acceptable for Marine Accommodation Panels?

Are you unsure if the panel glue is strong enough? Weak peel strength means the finish will fall off. I will give you the exact numbers you need.

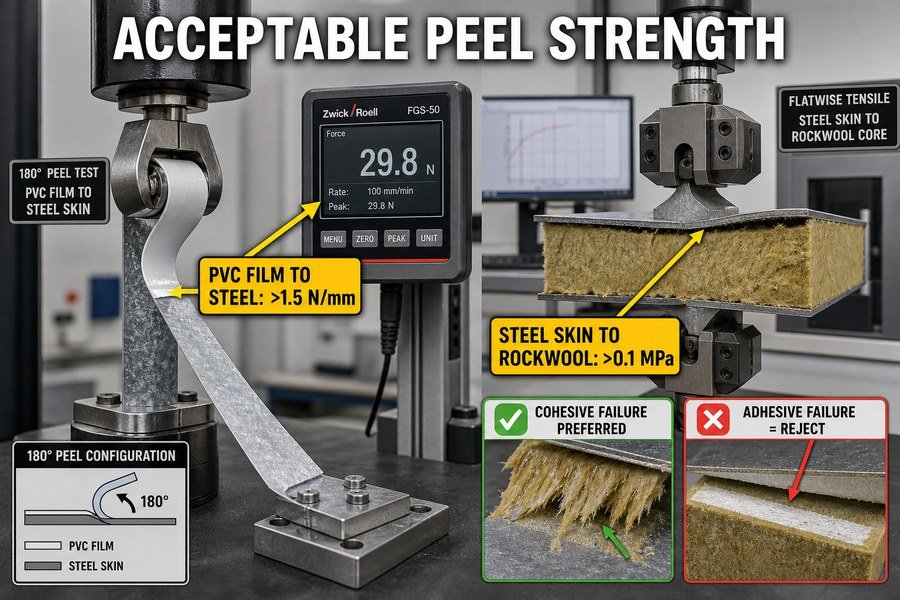

The acceptable peel strength for marine accommodation panels depends on the materials. For PVC film on steel skins, it must exceed 1.5 N/mm (ISO 8510-2). For metal skins bonded to a rockwool core, the flatwise tensile peel equivalent must exceed 0.1 MPa to meet general marine standards.

Getting these numbers right is the key to buying good panels. Let me explain the specific peel strength requirements for different panel types.

Acceptable Peel Strength for PVC Film on Steel Skins

Many marine panels have a PVC film finish on top of a galvanized steel skin. This film gives the panel its color and texture. If the peel strength is low, the film will blister. It will peel off in hot or humid ship cabins. The standard peel strength for PVC film on steel is tested using the 180-degree peel test (ISO 8510-2). The acceptable value must exceed 1.5 N/mm (Newtons per millimeter). I always tell my clients to ask for a test report showing at least 1.8 N/mm. This gives you a safe margin. If the factory uses cheap glue, the value will drop below 1.0 N/mm. You must reject those panels.

Acceptable Peel Strength for Metal Skins to Rockwool Core

The main structure of a marine fire panel is the metal skin bonded to the rockwool core. We cannot use a simple 180-degree peel test for this. The rockwool is too soft. Instead, we measure the bond using flatwise tensile strength. But we often convert this to a working understanding of "peel resistance." The acceptable tensile strength must exceed 0.1 MPa (100 kPa)³ according to standard shipyard specifications. When we test this in the lab, we want the rockwool fibers to tear before the glue breaks. This is called a "cohesive failure." If the glue breaks first, it is an "adhesive failure." Adhesive failure means the factory did not use enough glue or the pressing temperature was wrong.

How Is Bond Uniformity Verified in Large Marine Accommodation Panels?

Do your large marine wall panels have weak spots? Uneven glue causes soft areas. We need to verify that the glue covers the whole panel perfectly.

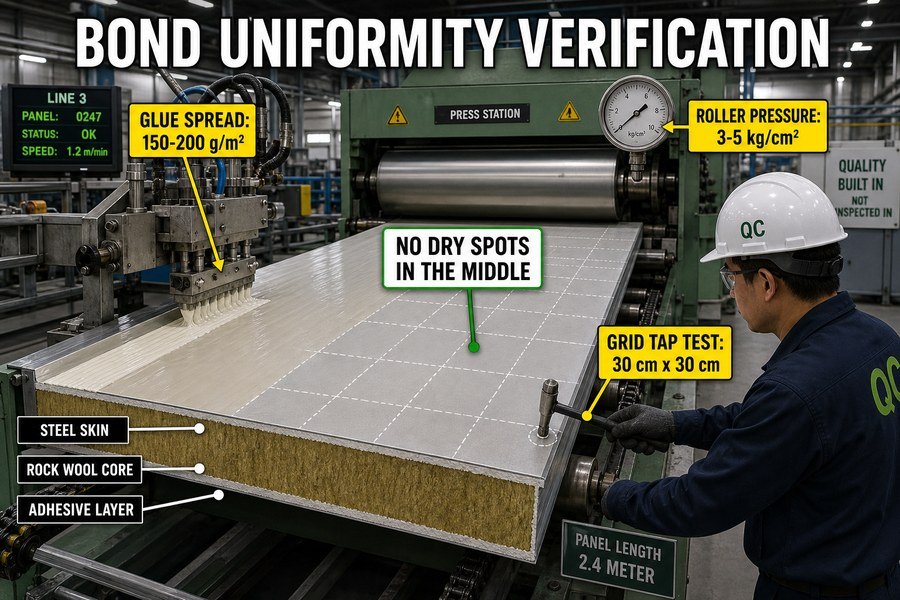

Bond uniformity in large marine panels is verified using three methods: automated glue spread rate monitoring (ensuring 150-200 g/m² coverage), roller pressure calibration (maintaining 3-5 kg/cm²), and post-press grid tap testing. These steps guarantee every square inch has equal adhesive strength.

If the factory only checks the edges, you will have problems in the middle. Here is how good factories check the whole board.

Automated Glue Spread Rate Monitoring

When making a 2.4-meter high marine wall panel, the glue must be perfectly even. Manual gluing is always bad⁴. Modern factories use automated glue spreaders. We verify bond uniformity by monitoring the glue spread rate. For standard two-part polyurethane marine glue, the required spread rate is between 150 and 200 grams per square meter (g/m²). We place a clean piece of foil on the belt. The machine applies glue to it. We weigh the foil to check the exact amount. If the machine applies only 100 g/m², the panel will have dry spots. If it applies 300 g/m², the glue will spill out, and it increases your cost.

Roller Pressure Calibration for Even Bonding

Glue is only half of the story. Pressure is the other half. After we put the skin on the core, the panel goes through a press machine. We verify uniformity by calibrating the roller pressure. The pressure must be exactly equal across the whole width of the panel. For rockwool panels, the pressure should be between 3 and 5 kg/cm². If the left roller is 3 kg/cm² and the right roller is 1 kg/cm², the right side of the panel will have weak bonds. Factory technicians must check the hydraulic gauges on the press machine twice a day.

Post-Press Grid Tap Testing for Final Verification

We cannot just trust the machines. After the panels cool down, the quality control team does a final check. We use a grid tap test method⁵. We draw an imaginary grid on the panel. Every square is 30 centimeters by 30 centimeters. The worker taps the center of every single square. This proves that the middle of the large panel is just as strong as the edges. It is a simple but mandatory step in marine outfitting.

Which NDT Methods Apply to Marine Accommodation Panel Bond Lines?

Want to test panels without destroying them? Cutting panels wastes your budget. I use Non-Destructive Testing (NDT) to check bonds safely.

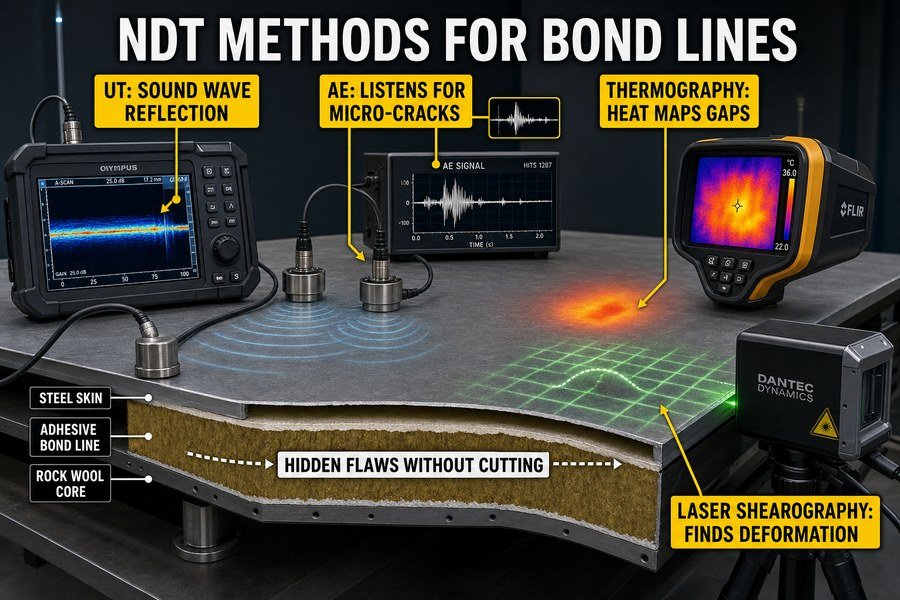

Four NDT methods apply to marine panel bond lines: Ultrasonic Testing (UT) uses high-frequency sound waves, Acoustic Emission (AE) listens for microscopic cracks, Thermography detects heat transfer differences in gaps, and Laser Shearography measures surface deformation under stress to find hidden bonding flaws.

You do not need to break a panel to see if it is good. These high-tech methods save money and give you peace of mind.

Ultrasonic Testing (UT) and Acoustic Emission (AE) for Bond Lines

Ultrasonic Testing (UT) is very common in the shipbuilding industry. We send high-frequency sound waves into the panel. The frequency is usually between 1 MHz and 5 MHz⁶. The sound wave travels through the steel skin and hits the glue line. If the bond is perfect, the sound goes through. If there is a gap or bad glue, the sound bounces back to the machine. We see this on a screen. Acoustic Emission (AE) is a bit different. AE uses sensors to listen to the panel while it is under a small amount of stress. If the glue is breaking inside, it makes tiny cracking sounds. The AE sensors hear these microscopic sounds before a real crack forms⁷.

Thermography and Laser Shearography for Panel Inspection

Thermography uses heat to find problems. We use an active infrared camera. We apply a quick flash of heat to the panel surface. The steel skin absorbs the heat. Where the bond is good, the heat moves into the core quickly. Where there is no glue, the heat stays on the skin longer. The camera sees this as a hot spot. It can detect temperature differences of just 0.5°C⁸. Laser Shearography uses a laser to scan the surface. We put the panel in a small vacuum chamber. The change in pressure makes the weak areas bulge out slightly. The laser measures this tiny deformation.⁹ It is very fast and works great for large panels.

How to Detect Hidden Voids in Marine Accommodation Panels?

Are there air bubbles trapped inside your panels? Hidden voids reduce fire safety and strength. You must find these gaps before the yard installs them.

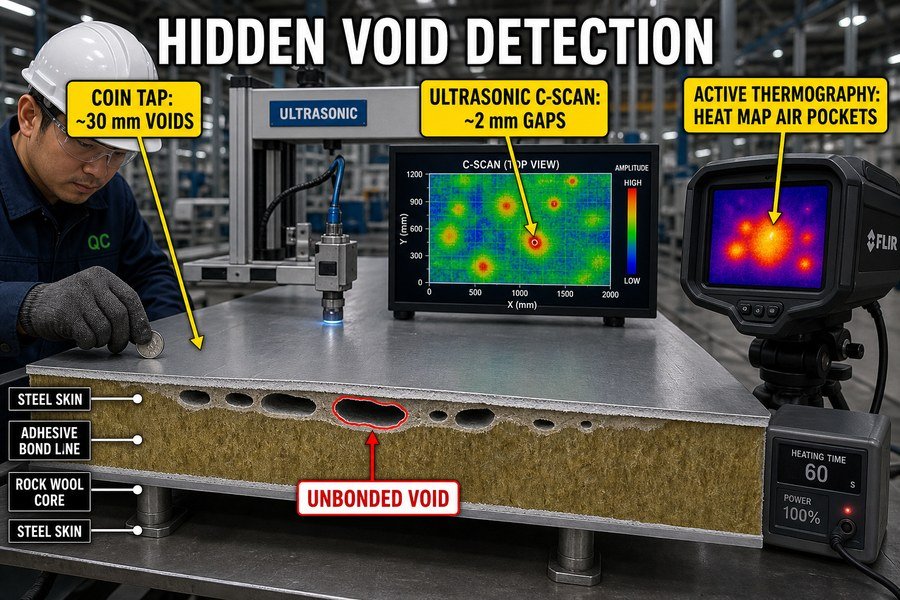

Hidden voids in marine accommodation panels are detected using three approaches: coin tap testing for basic sound differences, ultrasonic C-scan imaging for precise void mapping (detecting gaps as small as 2mm), and active infrared thermography for visual heat maps of unbonded air pockets.

A void inside a panel acts like a weak link in a chain. Let us look at how you can spot these invisible dangers.

Coin Tap Testing for Basic Sound Differences

The first approach is the coin tap test. We already talked about tap testing for general delamination. But it is also the first step to detect hidden voids. A void is an air pocket where the glue is missing. When you tap over a void, the air pocket acts like a tiny drum. It gives a very hollow, dead sound compared to the solid sound of a glued area. I train my quality control team to listen closely. A good worker can find a void as small as 30mm¹⁰ using just a coin. This method costs no money. But it relies heavily on human skill.

Ultrasonic C-Scan Imaging for Precise Void Mapping

For high-end projects, we cannot rely on human ears. We use an Ultrasonic C-scan. This is the second approach. A machine moves an ultrasonic probe back and forth across the panel. A computer collects all the data and creates a 2D map of the bond line. This map is called a C-scan. The solid bonds show up as blue or green. The voids show up as red spots. A good C-scan can detect a void as small as 2mm¹¹. Shipyards in Europe love to see these reports. It proves the panels have zero hidden defects.

Active Infrared Thermography for Visual Heat Maps

The third approach is active infrared thermography. I mentioned this earlier as an NDT method. It is perfect for finding voids. Air is a very poor conductor of heat.¹² The metal skin conducts heat fast. When we heat the panel, the heat cannot pass through the air pocket. The area above the void stays hotter than the rest of the panel.¹³ The thermal camera takes a picture. We see bright spots on the screen. These spots show us exactly where the hidden voids are. It takes only a few seconds to scan a whole marine ceiling panel.

Which Inspection Records Should Ship with Marine Accommodation Panels?

Is the shipyard asking for proof of quality? Without the right documents, your panels will be rejected. You must request the correct records from your supplier.

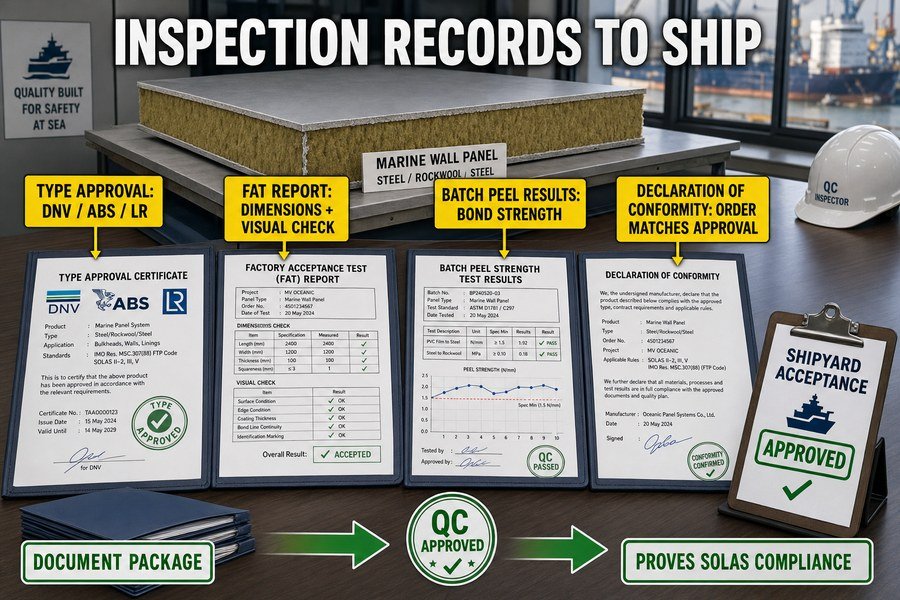

Four crucial inspection records must ship with marine accommodation panels: the Type Approval Certificate (from DNV, ABS, or LR), the Factory Acceptance Test (FAT) report, the Batch Peel Strength Test Results, and the Declaration of Conformity. These documents prove SOLAS compliance and bonding quality.

Good products are useless without good paperwork. Do not let missing papers delay your interior decoration project.

Type Approval Certificate and Declaration of Conformity

The most important document is the Type Approval Certificate. You must get this from a recognized classification society like DNV, ABS, or Lloyd's Register. This paper proves that the panel design meets the IMO FTP Code Part 1 and Part 3 for fire safety. Without this, the panel cannot go on a ship. The second document is the Declaration of Conformity (DoC). The factory signs this document. It states that the panels they produced for your specific order match the exact materials and glue used in the Type Approval test. It is a legal promise from the supplier to you.

Factory Acceptance Test (FAT) Report and Batch Peel Strength Results

The third record is the Factory Acceptance Test (FAT) report. This report shows the results of visual checks, size measurements, and squareness checks. It lists the exact length, width, and thickness of the panels in your batch. It proves the panels match your drawing. The fourth record is the Batch Peel Strength Test Results. Remember the tests we discussed earlier? The factory must provide a paper showing the flatwise tensile strength or peel strength of the exact batch you are buying. It should show numbers higher than 0.1 MPa or 1.5 N/mm¹⁴, depending on the test. This proves the bond quality is excellent.

Conclusion

Inspecting bonding quality involves peel tests, uniformity checks, NDT methods, and strict documentation. Mastering these steps ensures your marine accommodation panels meet shipyard demands and guarantee long-lasting safety.
