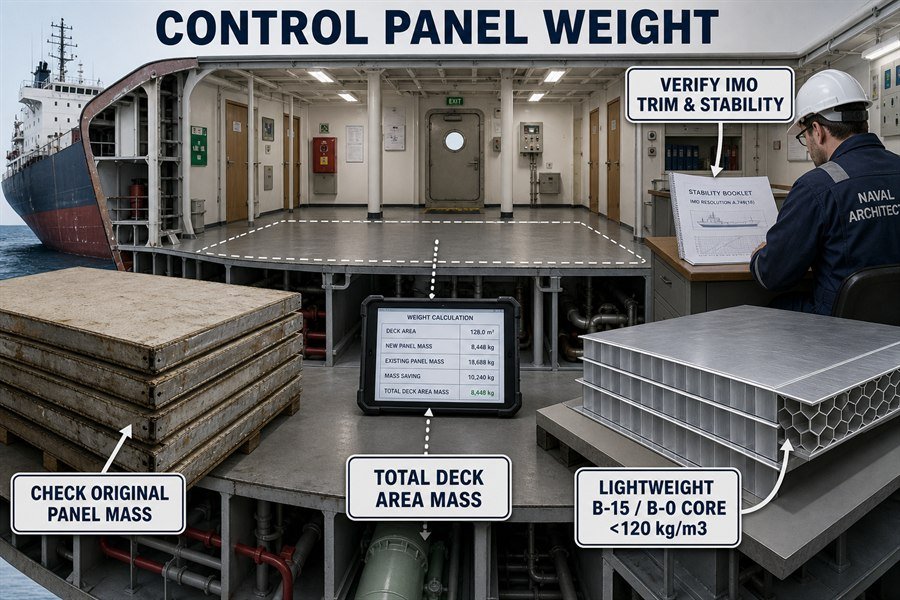

Avoiding overweight issues requires assessing the original panel mass, selecting lightweight B-15 or B-0 core materials like aluminum honeycomb or low-density mineral wool (under 120 kg/m³), calculating total deck area mass, and verifying compliance with the ship’s original IMO-approved trim and stability booklet.
Managing your ship's topside weight is a big challenge during interior outfitting retrofits. Many buyers try to find cheap marine wall panels in China or Vietnam, but they forget to check the panel weight. If you ignore panel weight, you will face huge problems with class societies and shipyard deadlines. Keep reading to learn exactly how to balance quality, fire ratings, and strict weight limits.
How Much Topside Weight Is Added by Heavier Marine Ceiling Panels During Retrofits?
Heavy ceiling panels add dangerous topside weight. This raises the center of gravity and threatens safety. We will calculate the exact weight added by these heavy panels.

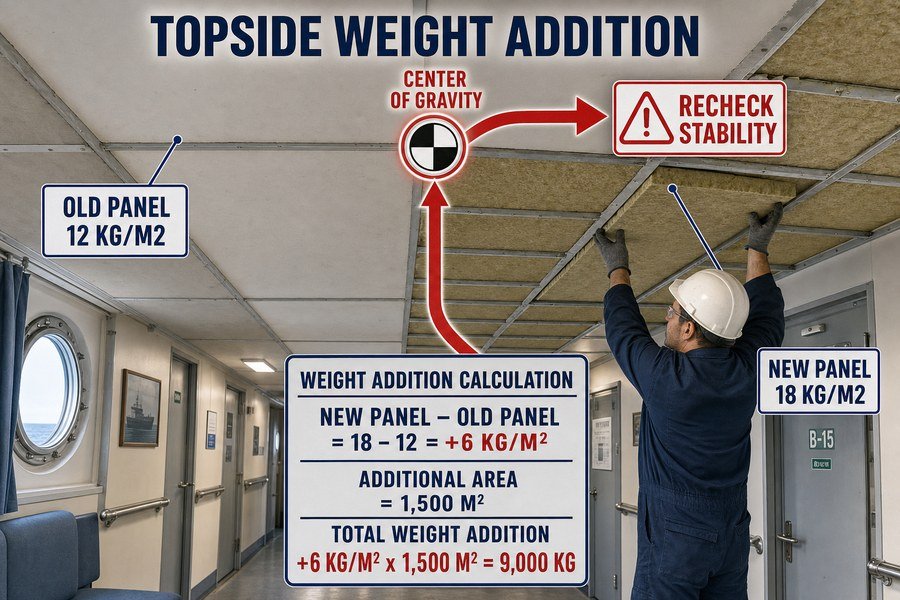

Upgrading from 12 kg/m² to 18 kg/m² marine ceiling panels adds exactly 6 kg per square meter. For a standard 1,500 m² deck retrofit, this adds a total of 9,000 kg (9 metric tons) of topside weight, significantly shifting the center of gravity and requiring structural reassessment.
When I worked at the marine outfitting factory, I saw many buyers make a huge mistake. They wanted better sound insulation, so they ordered very dense rockwool ceiling panels. They did not realize how much weight this added to the top of the ship. At Magellan Marine, I always tell my clients to watch the numbers closely.
The Impact of Upgrading from 12 kg/m² to 18 kg/m² Ceiling Panels
A standard B-0 rated ceiling panel with a low-density core usually weighs around 12 kg/m². Sometimes, shipyards want to upgrade to a B-15 rated panel with a high-density core for better fire protection. This upgrade pushes the weight up to 18 kg/m². This is a direct increase of 6 kg for every single square meter of ceiling. It sounds small, but ceilings cover the entire living area of the ship. This weight sits very high above the ship's waterline. According to the IMO A.749(18) Intact Stability Code, adding weight high up is very dangerous. It raises the ship's center of gravity.1 This makes the ship roll more in rough seas.
Total Topside Weight Addition for a 1,500 m² Deck
Let us look at a real-world example. A typical accommodation deck on a medium-sized vessel is about 1,500 square meters. If you change all the old 12 kg/m² ceiling panels to the new 18 kg/m² panels, you multiply 1,500 m² by the extra 6 kg/m². The math is simple but the result is huge. You add exactly 9,000 kg, or 9 metric tons, of new weight. Nine extra tons on a high deck changes how the ship moves. You will have to pay naval architects to recalculate the ship's stability2. This costs thousands of dollars and delays your project.
| Ceiling Panel Type | Unit Weight (kg/m²) | Total Deck Area (m²) | Total Weight (kg) | Added Weight (kg) |
|---|---|---|---|---|
| Old Standard B-0 Panel | 12 kg/m² | 1,500 m² | 18,000 kg | 0 kg |
| New Heavy B-15 Panel | 18 kg/m² | 1,500 m² | 27,000 kg | +9,000 kg |
| High-Density A-30 Panel | 22 kg/m² | 1,500 m² | 33,000 kg | +15,000 kg |
Which Lightweight Marine Wall Panels Meet Original Design Weight Limits?
Original design limits are strict. If you use standard heavy rockwool, you might exceed the weight budget. Here are three lightweight panel options that keep your project safe.

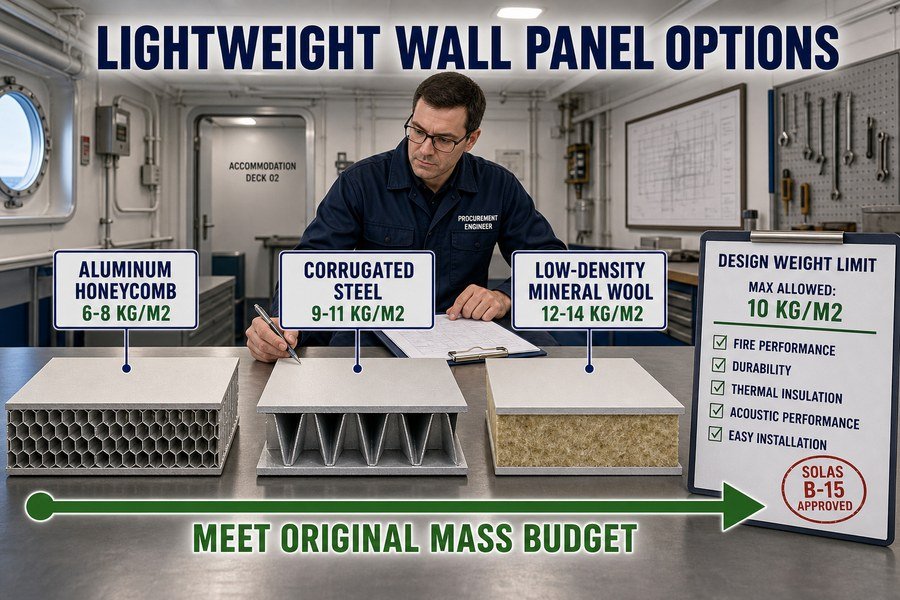

To meet original design weight limits, you must choose from three lightweight marine wall panel types: aluminum honeycomb panels (6-8 kg/m²), corrugated steel core panels (9-11 kg/m²), and low-density mineral wool panels (12-14 kg/m²). These options provide SOLAS B-15 fire ratings without exceeding strict mass budgets.
Procurement officers always want good quality and low prices. They look for factories in Asia to save money. But they often buy panels that are too heavy. I help my clients find lightweight panels that pass all tests. You must know your options to make the best choice.
Aluminum Honeycomb Panels for Maximum Weight Reduction
If your weight limit is very strict, you must use aluminum honeycomb panels. These panels weigh between 6 and 8 kg/m². The core is made of thin aluminum foil shaped like a honeycomb. This makes the panel very stiff but almost hollow inside3. These panels are great for high-speed ferries and naval ships4. However, they cost more. A standard rockwool panel costs about $18 per square meter in China. An aluminum honeycomb panel costs around $35 to $45 per square meter. It is expensive, but it solves the overweight problem instantly.
Corrugated Steel Core Panels for Structural Balance
The second option is the corrugated steel core panel. This panel weighs between 9 and 11 kg/m². Inside the panel, a thin sheet of steel is folded back and forth. This creates air gaps. It is lighter than solid rockwool but stronger than aluminum honeycomb. This panel gives you a good balance. It is also completely non-combustible5. It costs about $25 to $30 per square meter. Many of my clients in Europe like this panel for passenger ship retrofits.
Low-Density Mineral Wool Panels for Fire Resistance
The third option is the low-density mineral wool panel. This is the most common choice. It weighs between 12 and 14 kg/m². The factory uses a lighter rockwool core, usually around 100 kg/m³ density instead of 140 kg/m³. You still get a SOLAS B-15 fire rating6. This is the cheapest lightweight option. You can buy it for $18 to $22 per square meter in China or Vietnam. It is easy to cut and install.
| Lightweight Panel Type | Average Weight (kg/m²) | Core Material | Average Cost (USD/m²) | Best Application |
|---|---|---|---|---|
| Aluminum Honeycomb | 6 - 8 kg/m² | Aluminum Foil Web | $35 - $45 | Fast ferries, naval |
| Corrugated Steel | 9 - 11 kg/m² | Folded Steel Sheet | $25 - $30 | Passenger ships |
| Low-Density Mineral Wool | 12 - 14 kg/m² | 100 kg/m³ Rockwool | $18 - $22 | Cargo ships, tankers |
How to Calculate Cumulative Marine Panel Weight Across an Entire Deck Retrofit?
Guessing total panel weight leads to failed inspections. You cannot risk a heavy deck. We will show you a three-step method to calculate cumulative weight accurately.

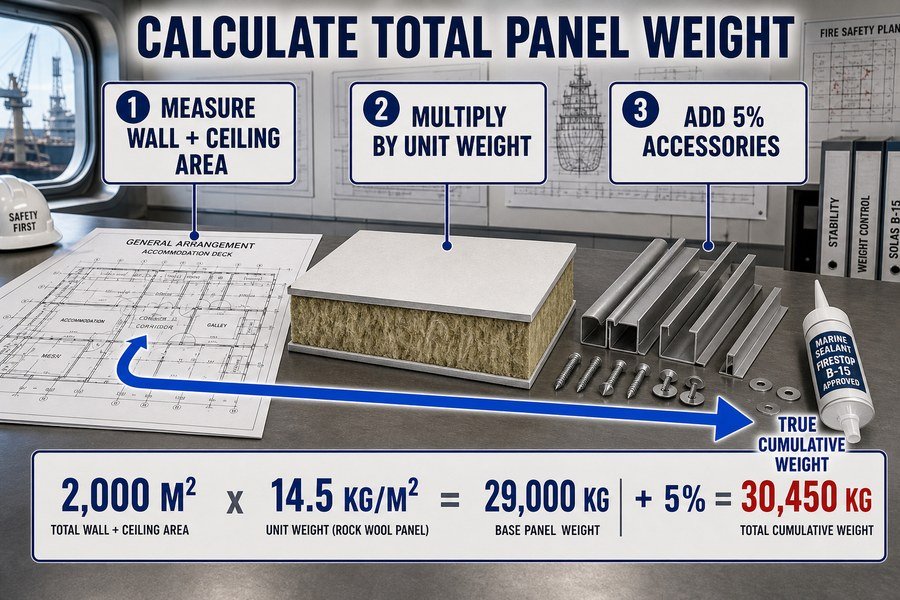

You calculate cumulative panel weight in three steps: first, measure the exact square footage of all wall and ceiling surfaces; second, multiply this area by the specific unit weight of the chosen panels (e.g., 14 kg/m²); third, add a 5% margin for joining profiles, screws, and structural adhesives.
I have seen many interior decoration companies lose money because they did not calculate weight correctly. They order the panels, install them, and then the class inspector says the ship is too heavy7. You must calculate the weight before you sign the purchase order.
Step 1: Measuring Total Deck Area for Walls and Ceilings
First, you must measure all the surfaces. You cannot just measure the floor. You need the area of the walls and the ceilings. Look at the ship's general arrangement drawings. If a cabin is 4 meters long, 3 meters wide, and 2.2 meters high, the ceiling is 12 square meters. The four walls equal 30.8 square meters. You must subtract the area for doors and windows. A standard marine fire door is about 1.6 square meters.8 Do this math for every single cabin and corridor on the deck. Let us say your total area is 2,000 square meters.
Step 2: Multiplying Area by Specific Unit Weight
Second, you multiply your total area by the unit weight of your new panel. Do not trust the sales brochure. Ask the factory for the laboratory test report9. If the test report says the panel weighs 14.5 kg/m², you use that exact number. You take your 2,000 square meters and multiply it by 14.5 kg/m². Your base panel weight is 29,000 kg.
Step 3: Factoring in the 5% Margin for Joining Profiles
Third, you must add a 5% margin. Many people forget this step. Panels do not float in the air. You need steel U-profiles on the floor and ceiling to hold them. You need H-profiles to connect the panels together. You need thousands of self-tapping screws. You also need heavy marine sealants. From my experience at Magellan Marine, all these small metal parts add up fast. They always add about 5% to the total panel weight.10 So, you take your 29,000 kg and add 5%. That is an extra 1,450 kg. Your true cumulative weight is 30,450 kg.
| Calculation Step | Item Description | Value / Formula | Result |
|---|---|---|---|
| Step 1 | Total Wall and Ceiling Area | Measured from drawings | 2,000 m² |
| Step 2 | Multiply by Unit Weight | 2,000 m² x 14.5 kg/m² | 29,000 kg |
| Step 3 | Add 5% Accessories Margin | 29,000 kg x 0.05 | + 1,450 kg |
| Final | True Cumulative Weight | Base Weight + Margin | 30,450 kg |
Why Does Retrofit Panel Overweight Trigger Mandatory Class Re-Inspections?
Failed class inspections delay your project and destroy your profit. Excess weight is the main cause. Here are the three reasons why overweight panels force class re-inspections.

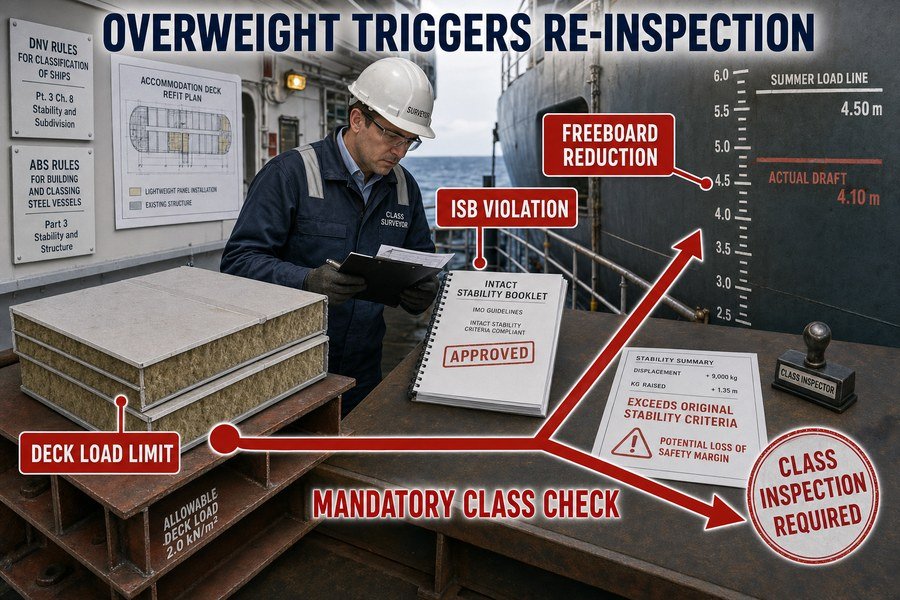

Retrofit panel overweight triggers mandatory class re-inspections for three reasons: it violates the ship’s approved Intact Stability Booklet (ISB), it reduces the vessel's required freeboard draft marks, and it alters the structural load limits on deck beams under DNV and ABS classification rules.
When you work with European and American shipyards, class society rules are everything. They check every detail. I always warn my buyers that cheap, heavy panels look good on paper until the DNV or ABS inspector arrives. If the inspector finds too much weight, your work stops.
Reason 1: Violating the Approved Intact Stability Booklet (ISB)
Every ship has an Intact Stability Booklet.11 This book tells the captain how the ship behaves in the water. Naval architects write this book based on the exact weight of the empty ship. This empty weight is called the lightship weight. If your new panels add too much mass, you change the lightship weight. Major class societies like DNV state that if the lightship weight changes by more than 2%, you must do a new deadweight survey. If it changes a lot, you must do a new inclining test. This test takes days and costs a lot of money.
Reason 2: Reducing the Required Freeboard Draft Marks
The second reason is the freeboard mark. The freeboard is the distance from the waterline to the main deck. Ships have a legal line painted on the hull. The water cannot go above this line.12 If you add 15 extra tons of heavy wall panels, the ship sinks lower into the water. This reduces the freeboard. If the freeboard is too small, the ship cannot legally carry a full cargo load. The class inspector will notice the ship sitting low in the water. They will demand an immediate re-inspection of your outfitting materials.
Reason 3: Altering Deck Beam Load Limits Under DNV and ABS Rules
The third reason relates to structural safety. Ship decks are built to hold a specific amount of weight per square meter. This is called the deck load limit. DNV and ABS class rules dictate how strong the steel deck beams must be.13 If you replace 12 kg/m² partitions with heavy 22 kg/m² A-Class partitions, you put massive stress on the floor beams. The inspector will check if the old steel beams can hold the new heavy panels safely. If they cannot, the inspector will force you to cut the panels out.
| Re-Inspection Trigger | Class Society Rule / Standard | Consequence for the Vessel |
|---|---|---|
| ISB Violation | Exceeding 2% lightship weight change | Mandatory deadweight or inclining test |
| Freeboard Reduction | International Load Line Convention | Vessel cannot carry maximum cargo payload |
| Structural Overload | DNV / ABS Deck Load Limits | Mandatory removal of heavy interior panels |
How to Ensure Replacement Marine Wall Panels Remain Lighter Than the Original Outfit?
Replacing old panels blindly is a massive risk. You might buy heavy panels and face rejection. Follow these four criteria to guarantee your new panels are lighter.

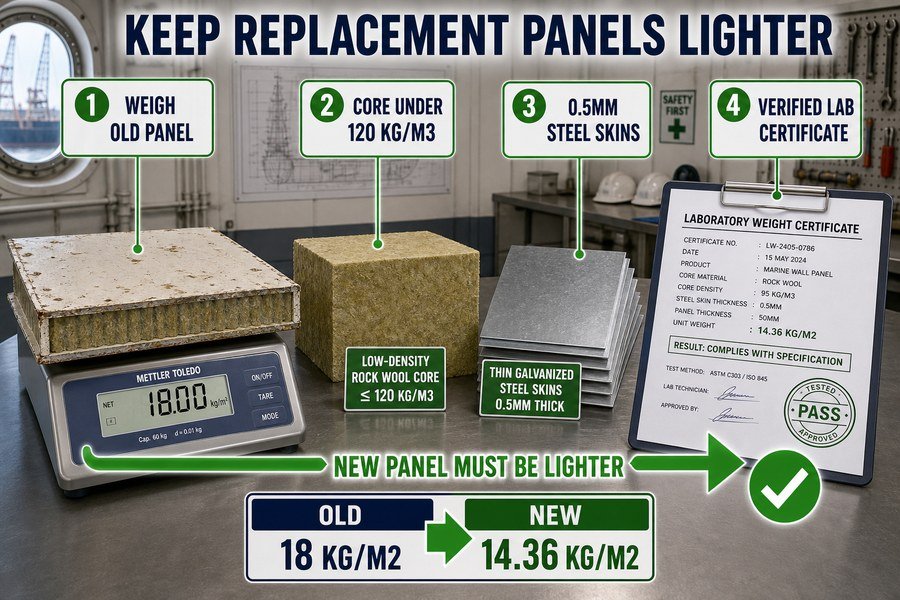

Ensure replacement panels remain lighter by applying four criteria: auditing the removal weight of old asbestos or heavy steel panels, selecting core materials under 120 kg/m³ density, using thinner 0.5mm galvanized steel skins instead of 0.7mm, and requesting verified laboratory weight certificates before purchasing.
Finding a good supplier in Asia is hard. Finding one that speaks English well and provides accurate technical data is even harder. You need a simple system to check their products. Use these four criteria to control the weight and ensure a smooth purchase.
Criteria 1 and 2: Auditing Old Panels and Using Low-Density Cores
First, you must audit the old panels. When the shipyard tears out the old interior, take one square meter of the old wall. Put it on a scale. If the old panel weighs 18 kg/m², your new panel must weigh 17 kg/m² or less. You need a baseline number to beat. Second, control the core density. Most factories in China use rockwool. Tell the factory they must use rockwool with a density strictly under 120 kg/m³. Standard cheap rockwool is often 140 kg/m³. Dropping the density from 140 to 110 kg/m³ for a 50mm thick panel saves exactly 1.5 kg per square meter.14 It still passes the B-15 fire test15, but it is much lighter.

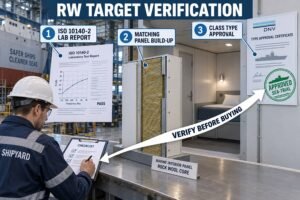

Criteria 3 and 4: Thinner Steel Skins and Verified Laboratory Certificates
Third, look at the steel skins. A marine panel has steel on both sides. Many old ships used 0.7mm thick galvanized steel. Steel is very heavy. You should order panels with 0.5mm thick galvanized steel skins. Reducing the thickness by 0.2mm on both sides saves about 3.14 kg per square meter. This is a massive weight reduction. Fourth, never trust an email promise. Ask the factory for their official fire test certificate from a lab like DNV or Lloyd's Register.16 Look at the first page of the lab report. The lab always writes the exact panel weight tested. If the lab report says 16 kg/m², the factory cannot send you 19 kg/m² panels.
| Specification Area | Old Heavy Panel Design | New Lightweight Replacement Strategy | Weight Saved (kg/m²) |
|---|---|---|---|
| Rockwool Core Density | 140 kg/m³ density | Under 120 kg/m³ density (e.g., 110 kg/m³) | ~ 1.50 kg/m² |
| Galvanized Steel Skin | 0.7mm thick (both sides) | 0.5mm thick PVC coated (both sides) | ~ 3.14 kg/m² |
| Total Panel Weight | ~ 19.00 kg/m² | ~ 14.36 kg/m² | ~ 4.64 kg/m² |
Conclusion
Avoiding overweight marine panels means calculating mass accurately, choosing lightweight cores, and following strict stability rules. Control your materials tightly to pass class inspections and ensure a safe, profitable retrofit.
-
