How to Match Retrofit Marine Wall Panels to Existing Door and Frame Clearances?

Are old doors sticking when you install new marine panels? This ruins your schedule. I will show you how to match panel gaps perfectly without rebuilding the whole bulkhead.

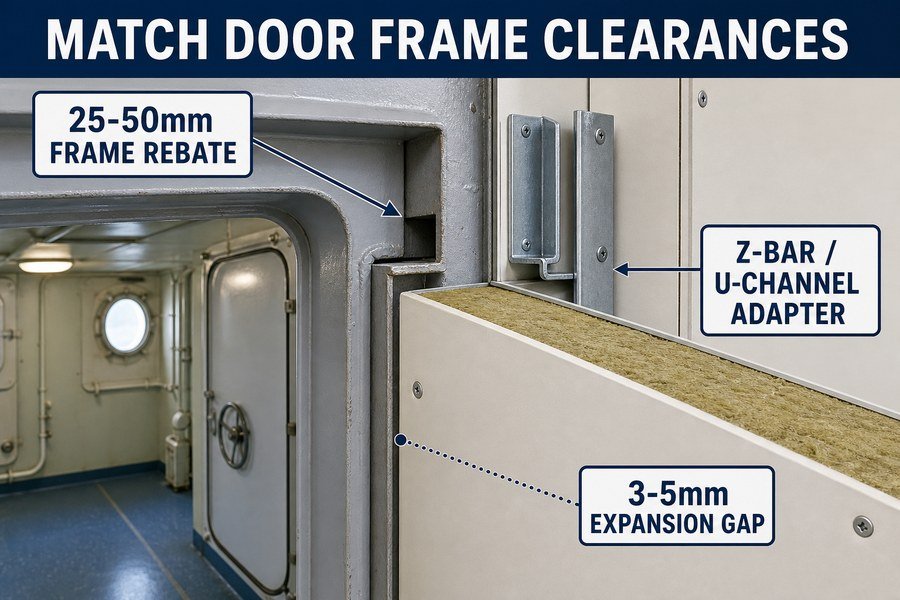

To match retrofit marine wall panels to existing door frames, you must measure the original frame rebate (typically 25mm to 50mm), use transition profiles (Z-bars or U-channels) for thickness differences, ensure 3mm to 5mm expansion gaps, and strictly verify IMO fire-rating continuity across all joints and seams.

Let us look at the details so you can avoid costly mistakes. A wrong gap can fail a marine inspection, but I will give you the exact steps to pass every time.

What Marine Wall Panel Thickness Maintains Existing Door Frame Alignment During Retrofits?

Picking the wrong panel thickness ruins your door alignment. This causes big headaches during installation. You must pick panels that fit the exact old frame rebates to save time.

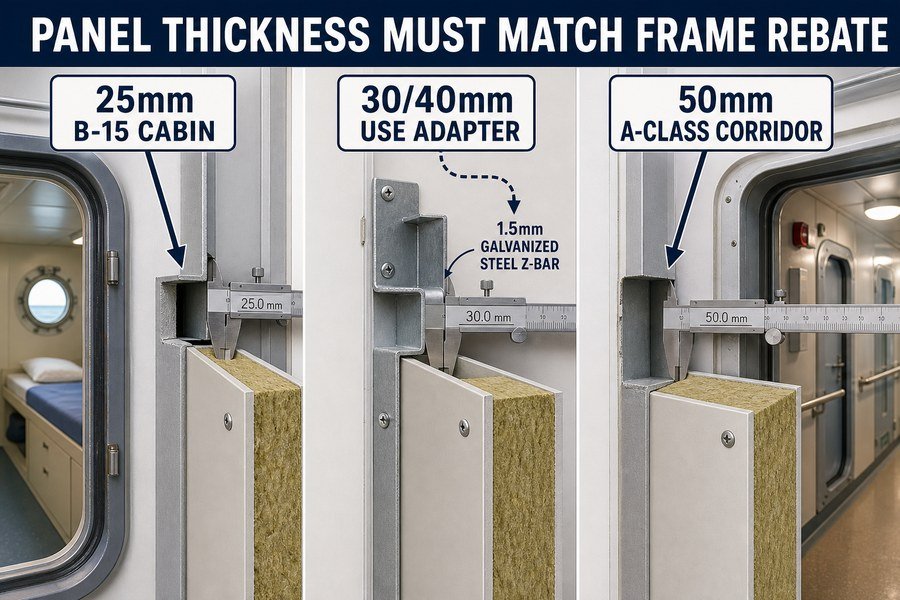

To maintain existing door frame alignment, use 25mm panels for B-15 standard cabins, 50mm panels for A-class fire-rated corridors, or custom 30mm/40mm panels with adapter profiles if the original shipyard used non-standard sizes. You must match these three main thickness categories to keep the frame flush.

Matching 25mm B-Class Panels for Standard Cabin Frames

When I worked in the factory, I saw many buyers order random panels. They did not measure the old frames. This is a big mistake. You have to match the original thickness. We will talk about the 25mm B-15 panels first. Most cruise ships and commercial vessels use 25mm panels for interior cabins. The old door frame usually has a 26mm or 27mm rebate. A 25mm panel fits directly into this space. You just need a 1mm or 2mm gap for fire-rated silicone. The International Maritime Organization (IMO) FTP Code says you must fill these gaps to stop smoke.

Adapting 50mm A-Class Panels for Fire-Rated Corridor Frames

Next, we look at the 50mm A-Class panels. You use these panels for heavy fire zones like corridors or galleys¹. The door frames here are much deeper. A standard A-60 door frame has a 52mm rebate. You cannot put a 25mm panel in a 52mm frame. It looks bad. It will fail the fire test. You must use a 50mm thick panel.

Using Transition Profiles for Non-Standard 30mm and 40mm Frames

Sometimes, shipyards in Europe or America use older 30mm or 40mm panels. You cannot find these easily in Asia now. You must use transition profiles to fix this. A Z-bar or a U-channel steps down a 50mm frame to hold a 25mm panel securely. You must make this transition profile out of 1.5mm galvanized steel. This thickness passes the marine class society rules, like DNV or ABS. I always tell my clients to check the old frame depth with a caliper before buying anything. This step saves a lot of money and time.

How to Prevent Door Swing Obstruction From Thicker Retrofit Marine Wall Panels?

A thick panel can block a door from opening. This creates safety hazards for the crew. You need specific hinge and edge adjustments to let the door swing freely.

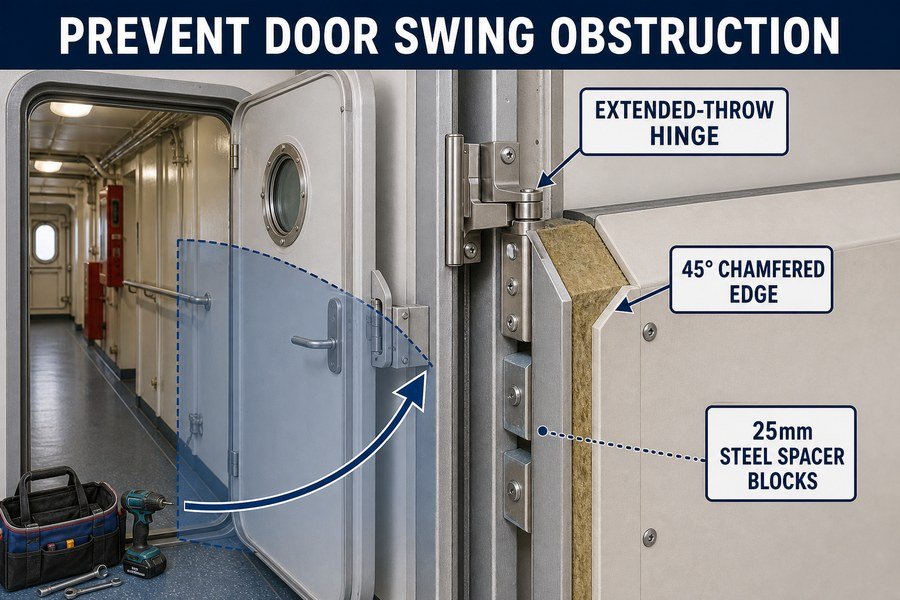

To prevent door swing obstruction from thicker panels, you must use three methods: install extended-throw hinges to push the pivot point out, chamfer the panel edges at a 45-degree angle near the hinge side, or install spacer blocks behind the frame to push the whole door assembly forward.

Installing Extended-Throw Hinges for Proper Pivot Clearance

When you upgrade an old ship, you often use thicker panels. New SOLAS insulation rules require this. I see this problem all the time. The old panel was 25mm thick. The new panel is 50mm thick. The old door hits the new thick panel when it opens. It cannot swing to 90 degrees. This creates a bad situation for escape routes. You have three ways to fix this. First, you can use extended-throw hinges. A standard marine hinge has a 10mm pivot offset. An extended-throw hinge has a 25mm or 30mm pivot offset. This pushes the turning point away from the thick wall. The door can then open fully to 180 degrees without touching the panel.

Chamfering Retrofit Panel Edges at a 45-Degree Angle

Second, you can chamfer the edge of the panel. You cut the panel edge at a 45-degree angle right next to the hinge. You take off about 20mm of material. You cover this cut with a thin steel trim. This cut gives the door extra room to move.

Adding Steel Spacer Blocks Behind the Door Frame

Third, you can use steel spacer blocks. You put flat steel blocks behind the old door frame. You need blocks that are 25mm thick. You weld or bolt them to the original steel bulkhead. This action pushes the entire door frame forward. The frame then sits flush with the new 50mm panel. The American Bureau of Shipping (ABS) rules state that you must weld these spacer blocks fully for A-60 rated doors.² You cannot use thin screws. I helped a customer from Indonesia with this problem last year. We used 25mm spacer blocks. We solved the whole issue in one day.

What Frame Clearance Is Needed Around Watertight Doors for Retrofit Wall Panels?

Putting panels too close to watertight doors causes the sealing mechanisms to fail. This risks the whole ship sinking. You must leave exact clearances to keep the doors safe.

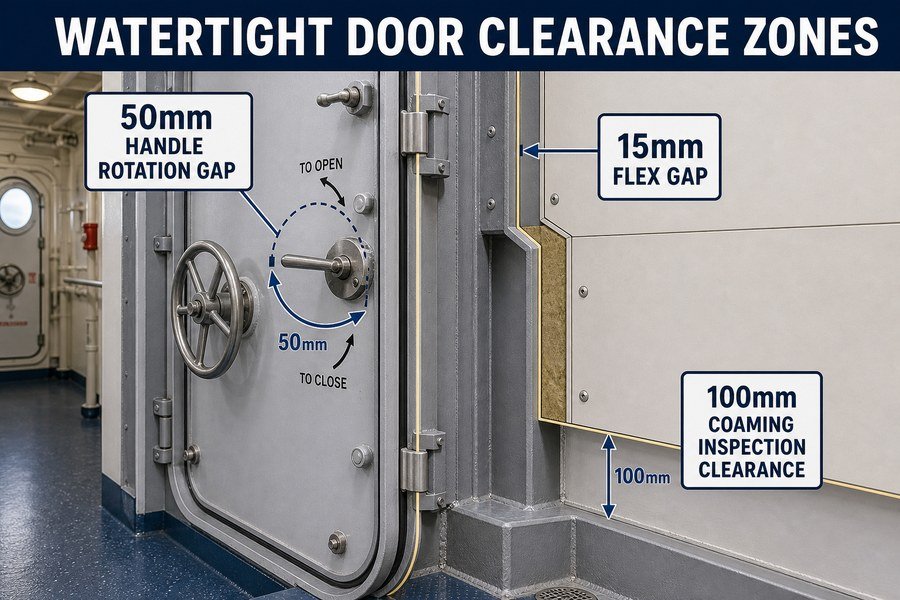

You must maintain three critical frame clearances around watertight doors: a 50mm gap for the dogging mechanism handle rotation, a 15mm gap around the frame edge for structural flexing, and a 100mm clearance from the deck to allow for coaming inspection and water drainage.

Maintaining a 50mm Gap for Dogging Mechanism Handles

Watertight doors are the most important safety items on a ship. I always tell buyers that cosmetic panels must never block these doors. You have to follow strict rules from the classification societies. You must leave three exact clearances when you install retrofit panels near watertight doors. First, you need a 50mm gap for the dogging mechanism³. The handles on these heavy doors must rotate fully to lock the door. Your decorative panel must stay far away. If the panel is too close, the crew will hit their hands on the wall. They will not apply the 30 kg to 50 kg of force needed to seal the door tight⁴. A 50mm gap gives them enough space.

Leaving a 15mm Structural Flex Gap Around the Door Frame

Second, you must leave a 15mm gap around the entire edge of the heavy steel frame. A ship flexes and bends on the ocean. You might screw a rigid 25mm panel tight against a watertight frame. The movement of the ship will crack the panel. You leave 15mm of empty space instead. You fill this space with flexible, fire-resistant silicone. This silicone absorbs the movement.

Ensuring a 100mm Deck Clearance for Coaming Inspections

Third, you must leave a 100mm clearance from the steel deck coaming. The coaming is the raised bottom step of the door. Inspectors from Lloyd's Register or DNV will check this coaming every year for rust. They will fail the ship if your panel covers the coaming. You also need this 100mm space for water drainage. Water can flow away and not soak into the bottom of your panels. These numbers are very strict. Do not guess them. Always measure twice before you cut the panels on the ship.

Why Do Replacement Marine Wall Panels Often Jam Against Original Door Casings?

Jammed panels happen when the old steel frames twist over time. This makes your new straight panels warp. You must find the root causes to fix the jamming quickly.

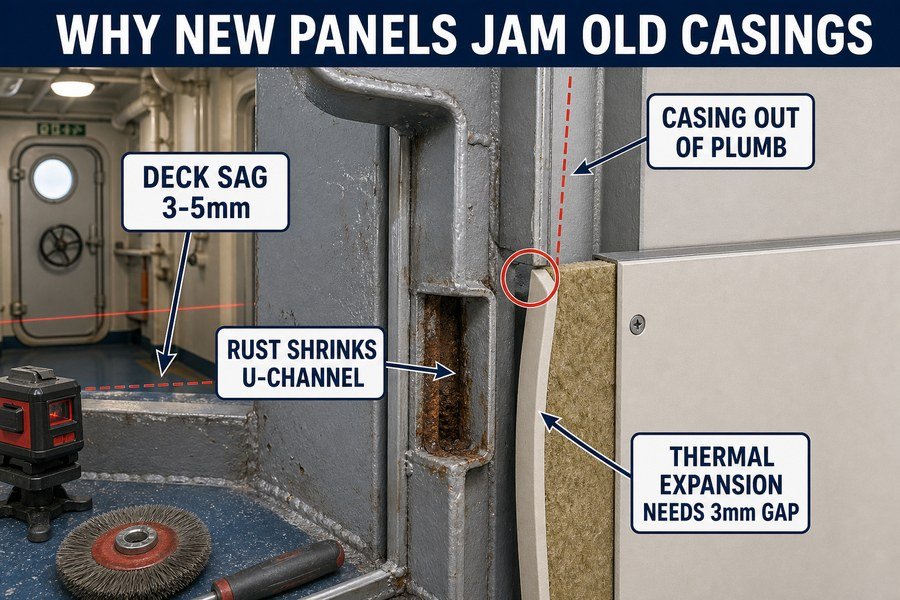

Replacement marine wall panels jam against original door casings due to four reasons: structural sagging of the old deck, heavy rust buildup inside the frame U-channels, misaligned original welding that pulls the casing out of plumb, and the thermal expansion of the new panels inside rigid spaces.

Deck Sagging and Old Rust Buildup Inside U-Channels

I get many calls from buyers. They complain about their new panels. The panels will not slide into the old door casings. The buyers think the factory made the panels wrong. Usually, the factory is right. The old ship is wrong. Panels jam for four main reasons. I will explain them to you. The first reason is structural sagging of the deck. A ship stays at sea for ten or twenty years. The steel floor bends down slightly.⁵ A 2-meter tall door casing will lean to one side by 3mm or 5mm. Your new panel is perfectly straight. It hits the leaning casing and jams. The second reason is heavy rust buildup. The hidden U-channel track around the old door collects water. Rust forms inside it. Rust expands the metal.⁶ A 25mm track shrinks to 22mm because of hard rust. You must grind this rust out with a wire wheel first. Then you can push the new panel in.

Misaligned Original Welding Pulling Casings Out of Plumb

The third reason is misaligned original welding. Shipyard workers welded the door casing very fast in the past. The welding heat warped the steel.⁷ The casing became out of plumb. The old builders forced the original panels in. You pull the old panels out. The casing stays warped. You have to cut the tack welds. You straighten the casing. You re-weld it.

Managing Thermal Expansion of New Panels in Rigid Spaces

The fourth reason is thermal expansion. Modern PVC-coated rockwool panels expand in hot rooms.⁸ A 2400mm tall panel grows by 2mm in a hot cabin. You might install it tight against the door casing with a zero gap. The panel bows out and jams the door. You must leave a 3mm tolerance gap to stop this.

How to Maintain Mandatory Corridor Widths When Fitting New Retrofit Marine Wall Panels?

Thick new panels can make your corridors too narrow. This violates international safety rules for escape routes. You must use smart installation techniques to keep the space wide enough.

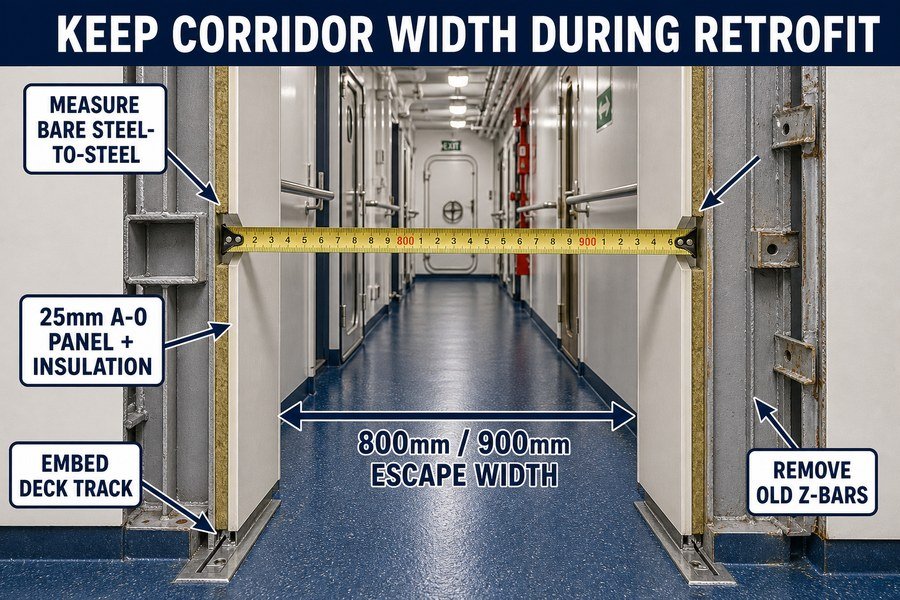

To maintain mandatory corridor widths during panel retrofits, you must measure the bare steel-to-steel distance, use thin 25mm A-0 panels backed by structural insulation instead of 50mm A-60 panels, embed the mounting tracks directly into the deck, and completely remove old furring channels before installation.

Using Thin 25mm A-0 Panels with Structural Insulation

Ship corridors are mandatory escape routes. SOLAS regulations have strict rules for this. A main corridor on a passenger ship must be at least 900mm wide. A corridor on a cargo ship must be at least 800mm wide. You might add new wall panels and shrink this width to 780mm. The port state control will not let the ship sail.⁹ You have to save space. You must do four specific things. First, you must measure the bare steel-to-steel distance. You do this before you order anything. You cannot measure from the old carpet to the old wall. You need the exact structural space. Second, you should avoid thick 50mm A-60 panels. You can use thin 25mm A-0 panels on the corridor side instead. You spray or pin 25mm of approved ceramic wool directly onto the bare steel bulkhead behind the panel. This method meets the A-60 fire rule. It saves 25mm of space on each side. You gain 50mm more total corridor width.

Embedding Mounting Tracks and Removing Old Furring Channels

Third, you must embed the mounting tracks into the deck. Do not put a 30mm thick steel U-channel on top of the old floor. You cut a slot in the floor. You sit the base track directly on the lowest deck level. Fourth, you must completely remove old furring channels. Many old ships have Z-bars welded to the walls. These old Z-bars hold the old panels. Do not attach your new panels to these old Z-bars. That action pushes your walls out by another 30mm. You must grind the old channels off completely. You install the new panel system right against the structural steel. This guarantees you pass the 800mm or 900mm width test.

Conclusion

Matching retrofit wall panels to existing frames requires exact measurements and correct panel thicknesses. Follow these clearances and safety rules, and your interior upgrade will pass all marine inspections.
