Why Must Retrofit Marine Panels Respect Class-Approved Original Interior Designs?

Updating old cabins seems easy, but getting class approval often causes delays. Ignoring original designs leads to failed inspections. Let me show you how to avoid these costly mistakes.

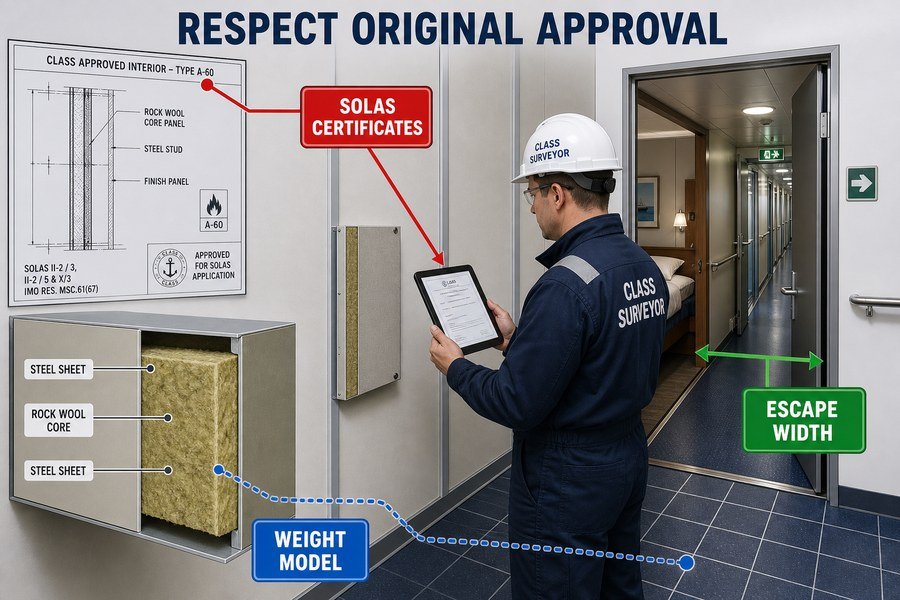

Retrofit marine panels must respect class-approved original designs because altering them invalidates the ship's existing SOLAS fire safety certificates, weight distribution models, and escape route dimensions. Maintaining original specifications ensures structural integrity, guarantees fast class surveyor approvals, and prevents multi-million dollar fines or project rejections during European shipyard inspections.

When I first started working on marine outfitting projects, I thought changing a simple wall panel was just a matter of color and size. I quickly learned that on a ship, every panel is tied to a strict safety network. If you change one thing without thinking, the whole system fails. Let us look at the exact rules you need to follow so your next purchasing order goes smoothly.

What Original Structural Limits Restrict Marine Wall Panel Replacement During Retrofits?

Worried your new panels might cause structural issues? Heavy panels can unbalance the deck. Let us look at the weight and fixing limits you must follow.

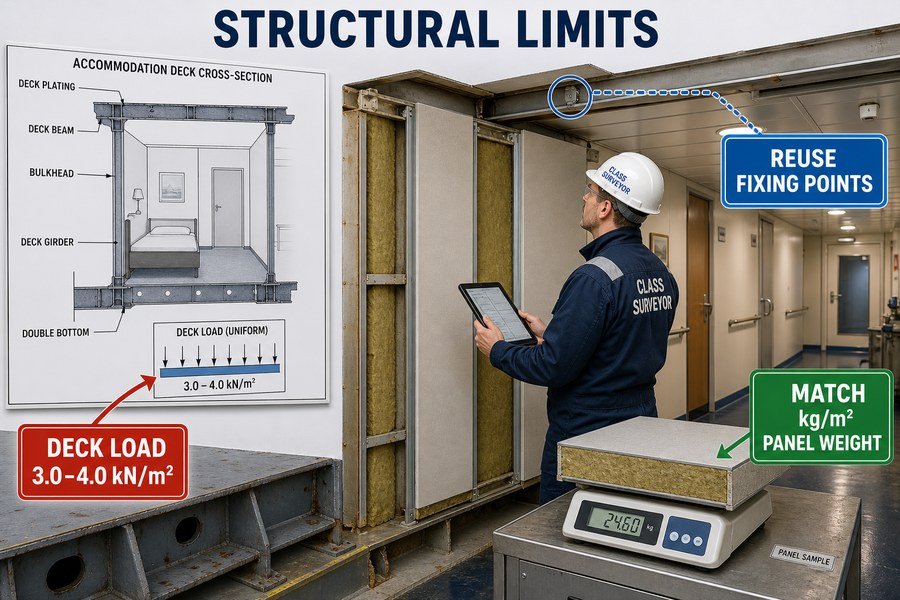

Marine wall panel replacement is restricted by three main structural limits: deck load capacity (typically 2.5 to 5.0 kN/m²), ceiling track fixing points, and total bulkhead weight. Exceeding these limits changes the ship's center of gravity, risking structural failure and violating the original Class society structural layout.

Understanding Deck Load Capacity and Total Bulkhead Weight Limits

Every ship has a strict weight limit for its interior floors. When I supply panels for projects in European shipyards, weight is always the first question buyers ask. According to the International Maritime Organization (IMO) SOLAS regulations, typical passenger ship accommodation decks are designed for a live load of about 3.0 to 4.0 kN/m² (kilonewtons per square meter). You must respect this total bulkhead weight. If you remove an old 15 kg/m² composite panel and replace it with a 22 kg/m² steel-faced rockwool panel, you add extra weight to the room. Over hundreds of cabins, this extra weight adds up to tons. This changes the ship's center of gravity¹. This is very dangerous because it makes the ship less stable in rough seas. When you buy replacement panels, always ask the factory to match the exact kg/m² weight of the old panels. If you do this, the surveyor will not ask for a new stability calculation².

Managing Ceiling Track and Fixing Point Restrictions

The second major structural limit is the fixing system. You cannot just drill new holes anywhere you want³. The original panels use specific ceiling and floor tracks. These tracks attach to the main steel structure of the ship. The shipyard approved these exact ceiling track fixing points to handle the ship's engine vibration. I once saw a project delayed by weeks because the buyer bought panels that needed a 50mm track, but the original ship only had space for a 30mm track. You must measure the existing bottom profiles and top profiles carefully. If you reuse the original fixing points, your installation will be much faster. You will not have to cut steel or weld new supports, which saves a lot of labor cost.

How to Maintain Approved Bulkhead Layouts When Swapping Retrofit Marine Wall Panels?

Changing panels often ruins the original cabin layout. This leads to rejected plans. Here is the direct method to swap panels while keeping the exact approved layout.

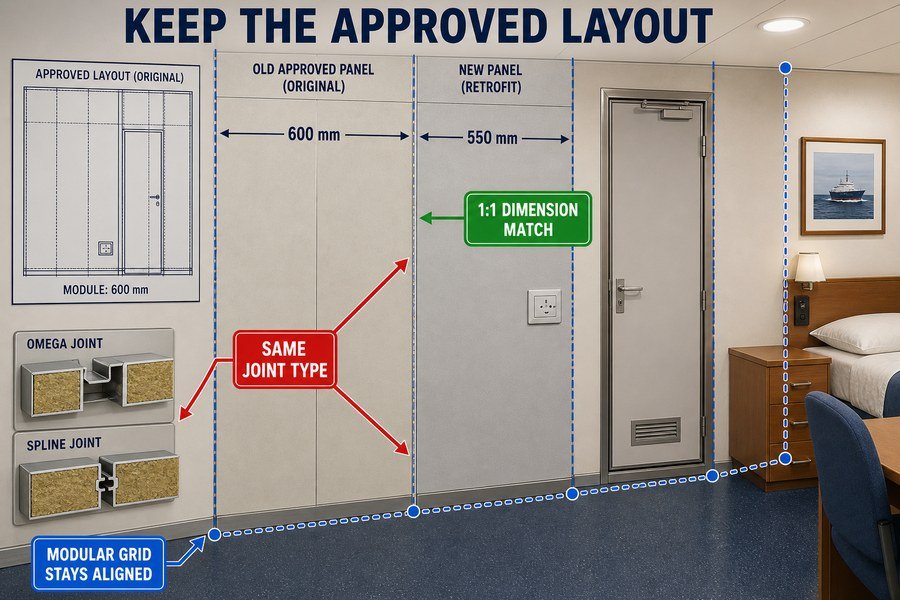

To maintain approved layouts, you must use exact 1:1 dimension matching, replicate original joint types (omega or spline), and reuse existing modular grid lines. By matching the exact panel width (standard 550mm or 600mm) and thickness, you avoid altering room volumes and bypass the need for layout re-approval.

Using 1:1 Dimension Matching for Marine Wall Panels

The easiest way to pass a class inspection is to change nothing about the room's shape. When you buy retrofit panels from factories in China or Vietnam, you must tell the sales team the exact width of the old panels. This is 1:1 dimension matching. The standard widths in the marine industry are usually 550mm or 600mm⁴. If the original design uses 600mm panels and you buy 550mm panels to save money on material waste, the layout will shift. This shift changes the location of electrical sockets, light switches, and bathroom doors. The Class surveyor will see this immediately. They will ask for a new drawing. According to DNV (Det Norske Veritas) class rules, any layout change over 100mm requires a formal design review. This review can cost between $2,000 and $5,000 per room design. It is much smarter to match the old dimensions exactly.

Replicating Original Joint Types and Modular Grid Lines

You also need to look at how the panels connect to each other. Ships use different joint types. The most common ones are the H-profile (omega) joint and the continuous (spline) joint.⁵ If the old layout used a 15mm gap omega joint, your new panels must use the exact same type. This is the only way to keep the modular grid lines exactly the same. The modular grid lines are the skeleton of the ship's interior. In my early factory days, we always mapped out the grid lines on the floor first. Everything follows these lines. If you respect the grid, the marine ceiling panels and marine fire doors will still fit perfectly. If you change the joint type, the grid breaks, and nothing will line up during installation.

Why Does Altering Marine Wall Panel Thickness Require Updated Fire Control Plans?

Buying thinner panels saves money, but the fire inspector will stop your project. Changing panel thickness messes up the fire safety plan. Here is why.

Altering panel thickness requires updated fire control plans because it changes the certified insulation depth, alters the tested thermal transfer rate (U-value), and shifts the physical boundaries of fire zones. Class societies mandate that any thickness deviation from the original SOLAS-approved drawings invalidates the existing A-Class or B-Class fire rating.

Impact of Panel Thickness on Insulation Depth and Thermal Transfer

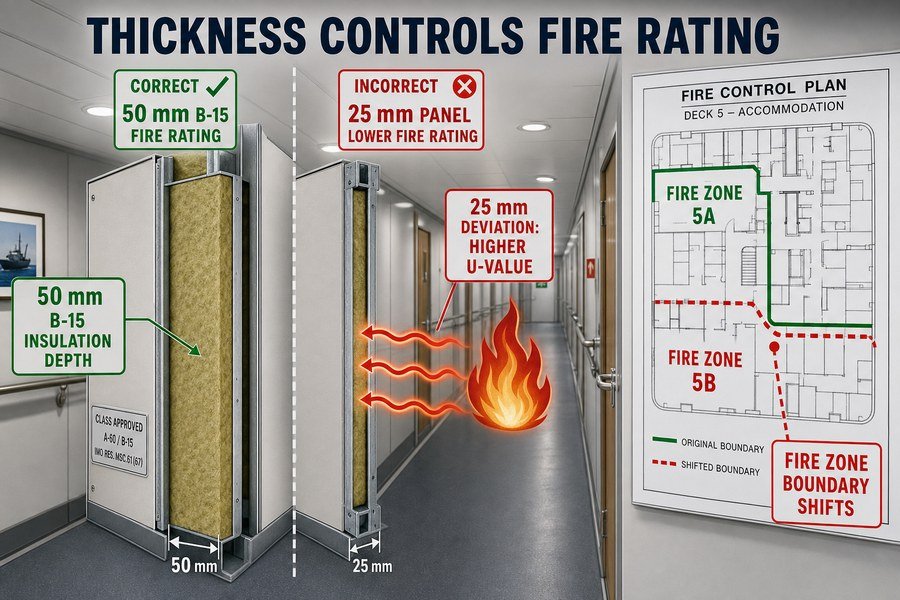

Marine fire doors and wall panels are tested in a lab to get their fire rating. A B-15 rated wall panel is usually 50mm thick and filled with 120 kg/m³ density rockwool. This exact combination of steel and insulation depth⁶ is what stops a fire for 15 minutes, as required by the IMO 2010 FTP (Fire Test Procedures) Code. If you buy a 25mm thick panel instead, the insulation depth is cut in half. Because of this, the thermal transfer rate, also known as the U-value, goes up very fast⁷. Heat will pass through the wall much quicker during a fire. The surveyor knows this basic science. They will check the wall thickness with a caliper tool. If the thickness does not match the ship's fire control plan, the ship cannot sail.

Shifting Fire Zone Boundaries and Regulatory Compliance

Ships are divided into main vertical fire zones⁸. The walls that create these zones are usually heavy A-60 bulkheads, which are often 100mm thick. The ship's fire control plan shows exactly where these walls are on a map. If you change a panel's thickness, you shift the physical boundary of that fire zone. Even a small 20mm difference can affect how marine fire doors close and seal against the wall. To fix this mistake, you have to hire a naval architect to draw a new fire control plan. Then, you have to pay the Class society (like Lloyd's Register or ABS) to review and stamp it. This paperwork process can cost between $5,000 and $15,000 and take up to three months.⁹ It is always cheaper and faster to buy the correct thickness from the start.

What Documentation Proves Retrofit Marine Panels Meet Original Fire-Rating Approvals?

You found a cheap supplier, but do they have the right papers? Without proper documents, customs will block your goods. Here are the exact certificates you need.

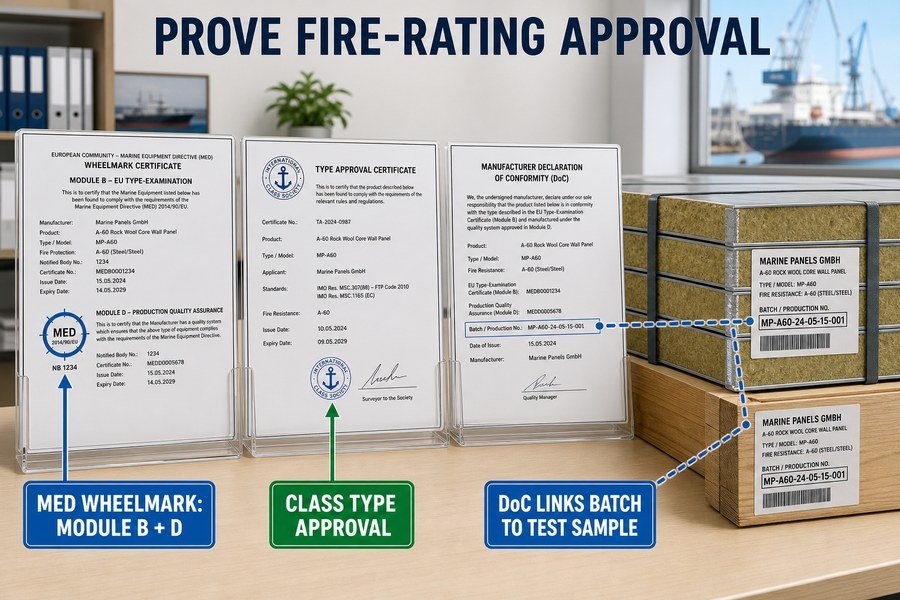

To prove retrofit panels meet original fire-rating approvals, you must provide three documents: the MED Wheelmark Certificate (Module B & D), the Type Approval Certificate from the specific Class Society (e.g., DNV, ABS), and the Manufacturer's Declaration of Conformity linking the production batch to the tested lab sample.

Understanding the MED Wheelmark and Type Approval Certificates

When you buy marine interior products for European shipyards, the most important mark is the Wheelmark. The Marine Equipment Directive (MED) requires all fire protection materials on European ships to have this mark.¹⁰ You need two parts. First is Module B, which proves the product passed the fire test in a lab. Second is Module D, which proves the factory has a good quality control system. Without both, the panels are just scrap metal to the shipyard. Additionally, you need a Type Approval Certificate from the ship's specific Class Society. If the ship is classed by DNV, a certificate from a different society might not be accepted by the local surveyor. Always ask your supplier for the exact Class certificate before you send any money.

The Role of the Manufacturer's Declaration of Conformity

The final piece of paper is the Manufacturer's Declaration of Conformity, or DoC. This document ties the big certificates to your exact order. It proves that the panels loaded into your shipping container are made from the exact same materials as the sample tested in the lab. In my job at Magellan Marine, I always check the batch numbers on the DoC against the printed labels on the panels. If the numbers do not match, the inspector will reject the entire delivery on the spot. According to standard ISO 9001 practices in marine outfitting, keeping these traceability records for at least 10 years is mandatory. This protects you if there is ever an accident on the ship later.

How to Install Retrofit Marine Wall Panels Without Reducing Class-Approved Escape Widths?

Are your new panels making the hallways too narrow? A blocked escape route is a serious safety violation. Follow this rule to keep corridors wide and safe.

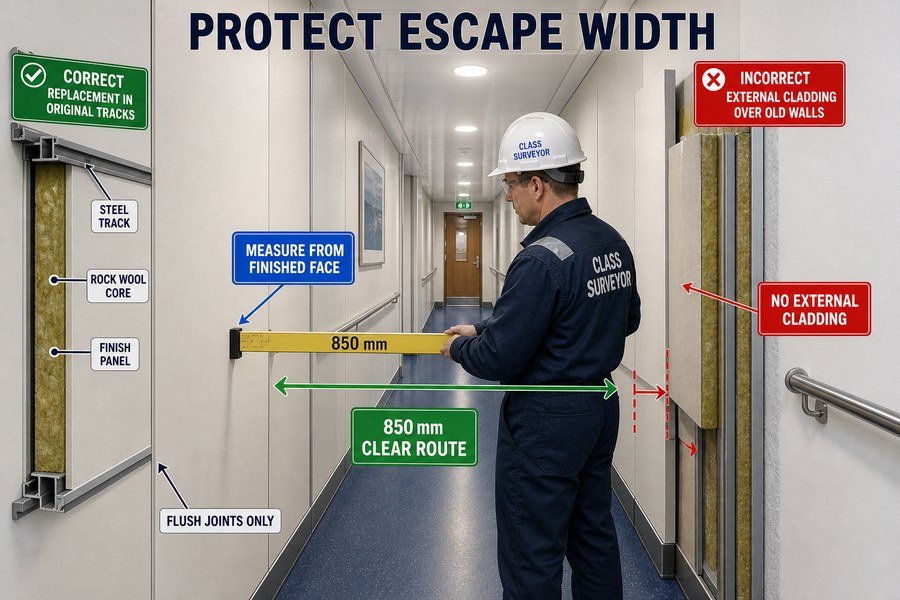

To install panels without reducing escape widths, you must measure corridor clearance from the finished panel face, avoid adding external cladding over old walls, and ensure protruding joints or skirting boards do not encroach into the minimum 850mm clear width mandated by SOLAS for passenger ship escape routes.

Measuring Corridor Clearance from the Finished Panel Face

Ship corridors are very tight spaces. The IMO SOLAS regulations¹¹ are very strict about this to keep passengers safe during an emergency. For standard passenger ships, the minimum clear width of an escape route must be at least 850mm¹². You must measure this corridor clearance from the very surface of the finished wall panel¹³, not from the raw steel hull behind it. Sometimes, buyers try to save time by putting new panels directly on top of the old panels. This is called external cladding, and it is a huge mistake. If you add a 25mm panel on both sides of a corridor to save labor time, you lose 50mm of width. If your corridor drops from 850mm to 800mm, it fails the inspection immediately. You must remove the old walls completely before installing the new ones to keep the width correct.

Managing Protruding Joints and Skirting Boards in Corridors

You also have to watch out for the small details at the top and bottom of the panels. Skirting boards (also called kick plates) and joint covers can take up important space. If your new skirting board sticks out 30mm into the hallway, that reduces your escape width¹⁴. The surveyor will walk down the corridor with a wooden measuring stick cut exactly to 850mm. If the stick gets stuck on a protruding joint or a thick floor profile, you have to tear the wall down and start over. I always advise my clients to use flush joints in corridors. A flush joint is completely flat. It keeps the surface smooth and guarantees you keep every single millimeter of the required escape width.

Conclusion

Respecting original marine designs during retrofits ensures safety, saves money, and guarantees fast class approvals. Always match structural limits, thickness, and layout, and keep your fire certification documents ready.
