How Is Marine Interior Panel Compatibility Verified Before Refurbishment?

Are you worried about ordering replacement panels that do not fit? Mismatched panels cause costly shipyard delays. I will show you exactly how to verify compatibility before you buy anything.

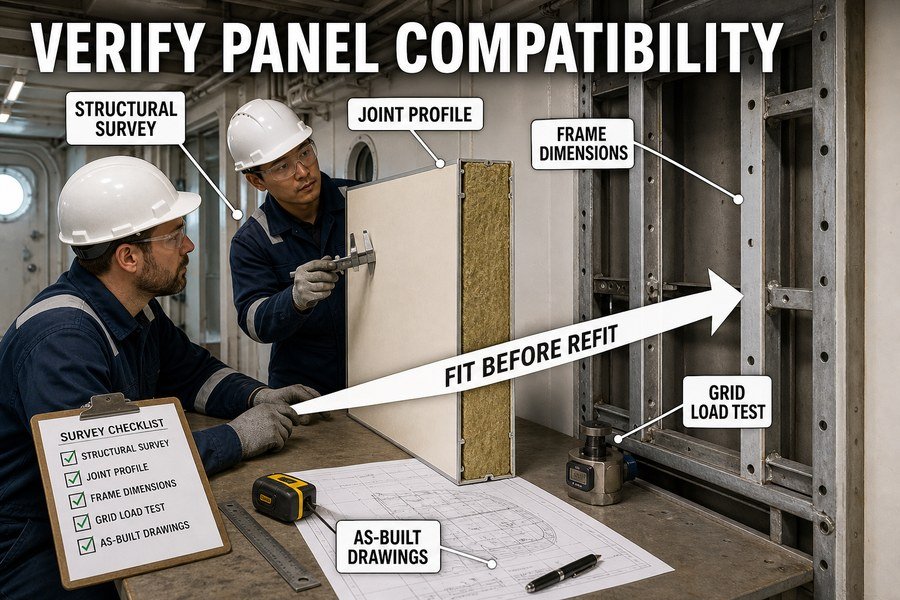

Marine interior panel compatibility is verified through five primary methods: structural surveys, joint profile matching, framing dimension checks, suspension grid load tests, and reviewing as-built drawings. Checking these ensures replacement panels meet IMO SOLAS standards and fit perfectly into your existing ship framing without needing expensive rework.

If you do not check these things first, your installation team will spend days cutting panels or changing frames. Let us look closely at the steps you need to take to avoid this mess.

What Checks Confirm Replacement Marine Interior Panels Fit Existing Joiner Framing?

Does your new panel slide easily into the old metal frame? If it is too thick or too wide, you are stuck. Here are the exact checks you need to make.

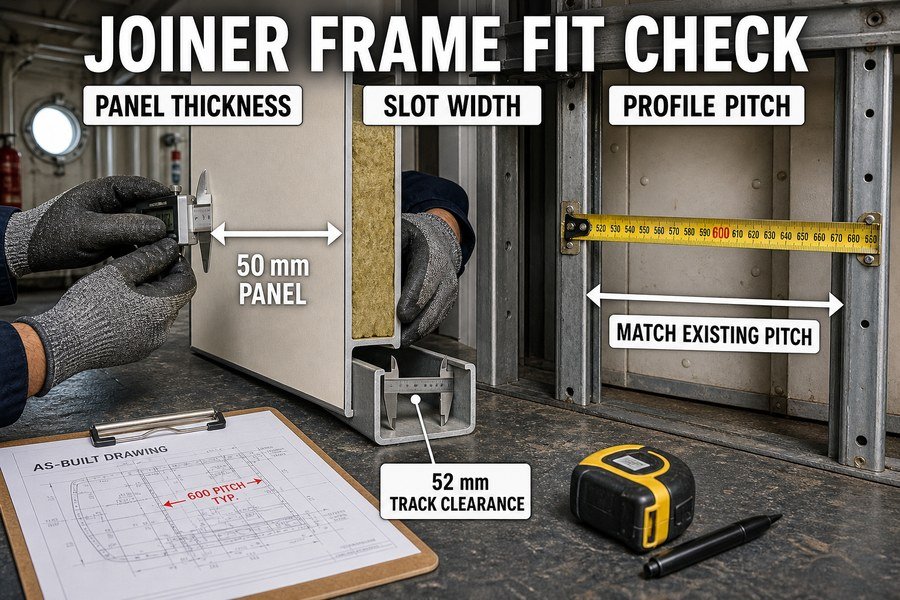

To confirm replacement marine interior panels fit existing joiner framing, you must check three specific dimensions: the panel thickness, the framing slot width, and the pitch distance between vertical profiles. Measuring these three things ensures the new panels slide securely into the legacy U-channels and top tracks.

When I worked in the marine outfitting factory, I saw many buyers make the same mistake. They bought panels because the price was good, but they did not check the old framing on the ship. The installation team tried to push a new panel into an old frame, and it simply did not fit. To stop this from happening to you, you must check three specific things: panel thickness, framing slot width, and pitch distance.

Checking the Panel Thickness and Framing Slot Width

The first two things you must check are the panel thickness and the framing slot width. These two measurements go together. Standard marine interior panels usually come in two main thicknesses: 50mm and 25mm¹. According to standard manufacturer data, a 50mm bulkhead panel is the most common size for separating ship cabins². If your old panel is 50mm thick, the bottom steel U-channel (the framing slot) will usually have an inner width of about 52mm. This gives the installation workers 2mm of extra space to slide the panel in. If you buy a new panel that is 50mm thick, but the old framing slot is only 27mm wide (because it was built for a 25mm panel), you cannot force it in. You will have to tear out all the steel floor tracks, which costs a lot of money and time. Always use a caliper tool to measure the inside width of the old floor tracks before you place your order.

Measuring the Pitch Distance Between Vertical Profiles

The third thing you must check is the pitch distance. The pitch distance is the space from the center of one panel joint to the center of the next panel joint. For most modern marine panels, the standard width is 600mm³. This means the pitch distance should also be exactly 600mm. However, on older ships built in the 1990s, some European shipyards used a pitch distance of 590mm or 610mm⁴. If your legacy framing is set at 590mm and you buy standard 600mm panels, the final panel in the wall will overlap, and you will have to cut the steel skins of every single panel to make them fit. Cutting panels on the ship breaks the factory finish and takes away the clean look your shipyard clients want. I always tell buyers to measure the distance across five existing panels and divide by five to find the true average pitch distance.

How Is Marine Bulkhead Panel Alignment Assessed Against Legacy Connection Profiles?

Do the new panel joints line up with the old ones? Gaps in bulkhead panels look bad and ruin the fire rating. Let us look at how to assess alignment.

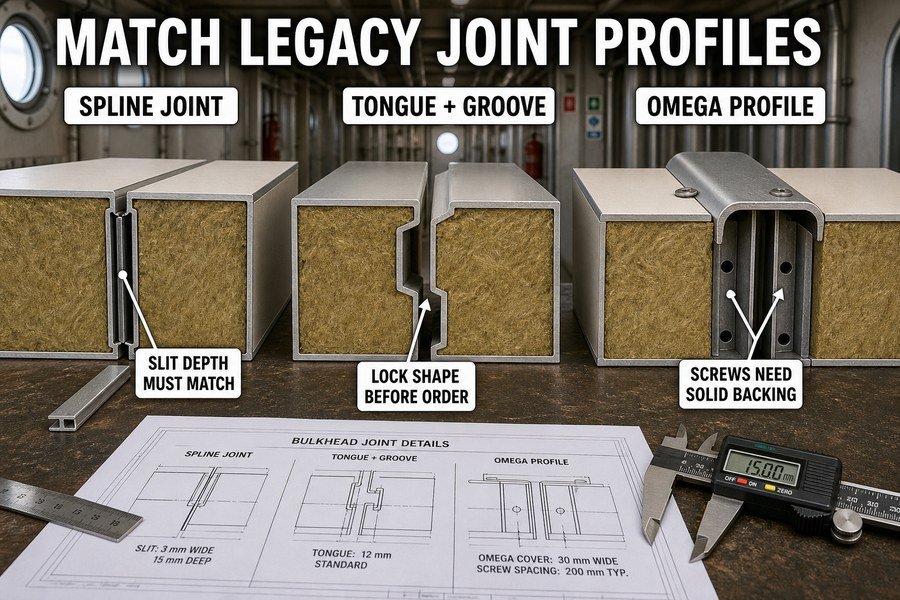

Marine bulkhead panel alignment is assessed against legacy connection profiles by evaluating three specific joint types: spline joints, tongue-and-groove joints, and omega profile connections. Verifying the exact joint shape and depth ensures the new panel locks tightly into the old one, maintaining required A-class fire integrity.

If you are replacing a whole room, panel joints are easy because all the new panels match each other. But if you are only replacing a few damaged panels on an older ship, the new panels must connect perfectly to the old panels. The International Maritime Organization (IMO) Fire Test Procedures (FTP) Code says that panel joints must not let smoke or fire pass through⁵. If the new joint does not fit the legacy joint, you leave a gap. To stop this, you must look at three types of joints: spline joints, tongue-and-groove joints, and omega profile connections.

Assessing Spline Joints and Tongue-and-Groove Joints

First, you must check if the old system uses spline joints or tongue-and-groove joints⁶. A spline joint uses a separate thin strip of metal (the spline) that slides into a slit on the edges of two flat panels. If your ship has spline joints, you need to measure the width and depth of the slit. Usually, the slit is 3mm wide and 15mm deep. If your new panel has a slit that is only 10mm deep, the old spline will not go in all the way, and the panels will not sit flat against each other.

A tongue-and-groove joint is different. One panel has a sticking-out edge (the tongue), and the other panel has a slot (the groove). A standard tongue sticks out by about 12mm. If you try to push a new tongue-and-groove panel into an old spline panel, it will fail completely. You have to take one old panel off the wall, look at the edge, take a photo, and send it to your supplier so they can make the exact same shape.

Verifying Omega Profile Connections for Fire Integrity

The third joint type is the omega profile connection. This is mainly used for heavy A-class bulkheads, like A-60 walls separating the engine room from a hallway⁷. Instead of the panels touching each other directly, they sit side-by-side, and a metal cap shaped like the Greek letter Omega ($\Omega$) is screwed over the gap. The omega profile is usually 30mm wide. To assess alignment here, you must measure the distance between the screw holes on the old wall. If the old screw holes are 200mm apart vertically, the new panels must have inner steel supports located in the exact same places so the screws have solid metal to grab into. If the screws just go into soft rockwool⁸, the wall will shake, and it will fail the IMO fire safety inspection.

What Structural Surveys Prevent Marine Interior Panel Mismatches During Ship Refits?

Are the steel decks rusted or bent? Putting perfect new panels on bent steel tracks wastes money. You must do a structural survey first.

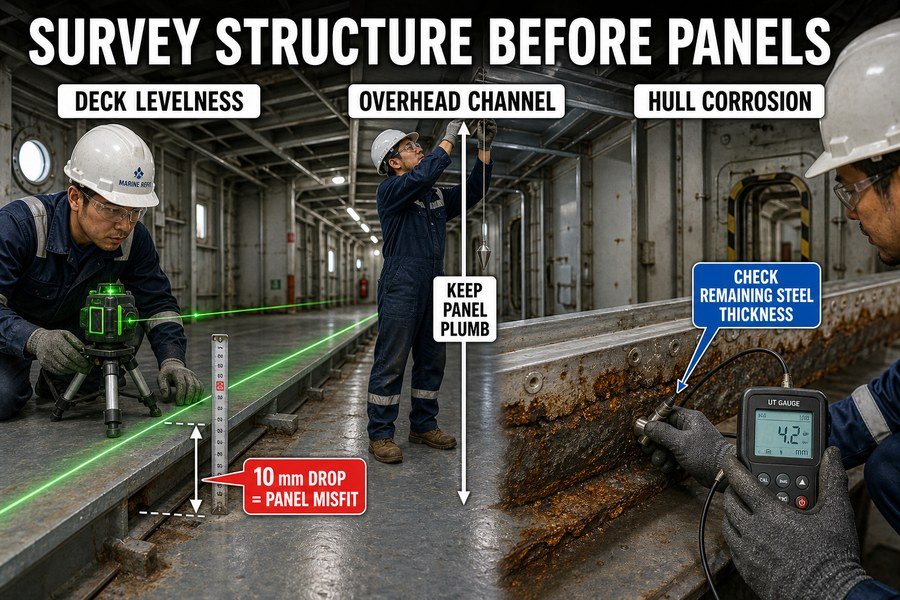

Structural surveys prevent marine interior panel mismatches by examining three critical areas: deck track levelness, overhead channel integrity, and signs of steel hull corrosion. Using laser levels and ultrasonic thickness gauges, surveyors map out deformations to confirm the ship can hold standard panels straight.

When a ship is in service for 15 or 20 years, the steel body of the ship moves, bends, and rusts⁹. You cannot expect a 20-year-old steel deck to be as flat as a new one. If you order new wall panels based only on the original ship drawings, you might find that the room is actually shorter or slanted because the steel deck has warped. To prevent a mismatch, you need a surveyor to check three areas: deck track levelness, overhead channel integrity, and steel hull corrosion.

Surveying Deck Track Levelness and Overhead Channels

First, you must survey the deck track levelness and the overhead channels. You use a green beam laser level to check how flat the floor is. According to the International Association of Classification Societies (IACS) standard guidelines for ship repair, the maximum allowed deviation for a deck plate under an interior bulkhead is usually 3mm over a 2-meter distance. If the floor bends down by 10mm in the middle, your new square panels will not fit. The bottom will hit the floor, but the top will not reach the overhead channel.

You must also check the overhead channels on the ceiling. These steel guides hold the top of the wall panels. Because ships vibrate from the main engine, these top channels often shake loose or bend over time. If the overhead channel is bent, the new panel will sit at an angle. The installation team will have to spend hours hammering the overhead channel straight before they can put the first panel in.

Mapping Steel Hull Corrosion and Deformation

The third critical area to check is steel hull corrosion. Water often leaks from bathrooms or pipes and gathers under the bottom tracks of the interior walls. This water rusts the steel deck. Surveyors use an Ultrasonic Thickness (UT) gauge to check how much healthy steel is left¹⁰. If the original steel deck was 8mm thick, but the UT gauge shows it is now only 4mm thick due to rust, it is not strong enough to hold heavy A-60 fire panels (which weigh around 22 to 25 kg per square meter). You must cut out the rusty steel and weld new plates before you install the interior panels. If you do not do this survey, your beautiful new panels will be sitting on rotten steel, and the shipyard will reject the entire job.

How Are Incompatible Marine Ceiling Panels Avoided When Using Existing Suspension Grids?

Are your ceiling panels falling down? That happens when the old grid cannot hold the new weight. Here is how to avoid ceiling mismatches.

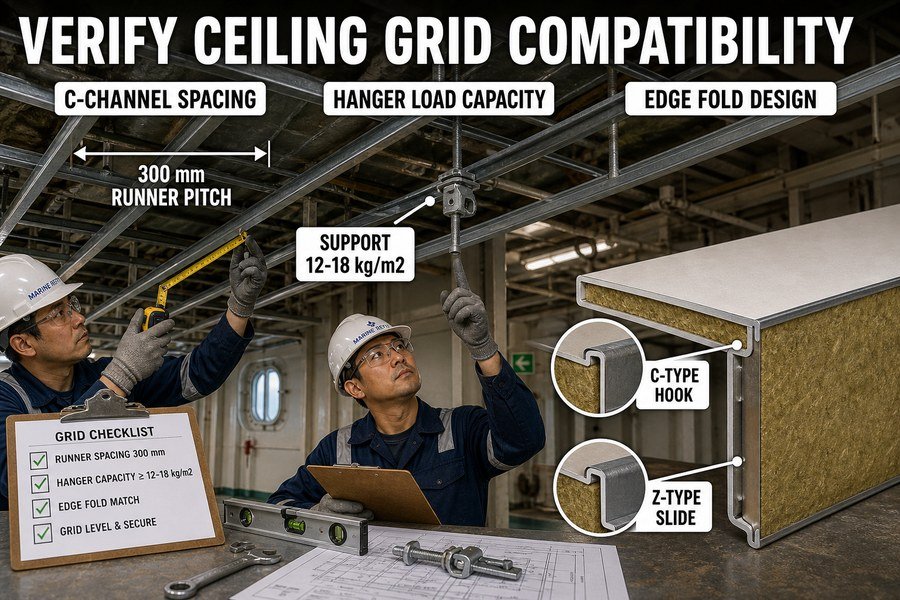

Incompatible marine ceiling panels are avoided by verifying three suspension grid factors: the C-channel runner spacing, the hanger clip load capacity, and the panel edge fold design. Checking these ensures the existing grid safely supports the 12 to 18 kg/m2 weight of new fire-rated ceilings.

Replacing ceiling panels is one of the hardest jobs during a ship refurbishment. Ship owners always want to save money by keeping the old hidden metal grid in the ceiling and only buying the new decorative face panels. But if the old grid does not match the new panels, the panels will vibrate, make terrible noises, or fall down on the crew. To make sure your new ceiling panels work with the old grid, you must check three specific factors: C-channel runner spacing¹¹, hanger clip load capacity, and panel edge fold design.

Verifying C-Channel Runner Spacing and Hanger Clip Capacity

The first two factors are C-channel runner spacing and hanger clip capacity. The C-channel runners are the long metal bars that hang from the ship's steel roof. For standard 300mm wide ceiling panels, the distance between these C-channels must be exactly 300mm.¹² If the old grid was built for 200mm panels, you cannot use 300mm panels unless you take down the whole grid and move the metal bars.

You also need to check the hanger clip load capacity. The hanger clips tie the C-channels to the steel roof. A standard modern B-15 fire-rated ceiling panel weighs between 12 to 18 kg per square meter because it is full of dense rockwool.¹³ If the old ceiling was just a thin aluminum plate that weighed 5 kg per square meter, the old hanger clips will break under the new weight. You must check the load rating of the legacy clips. If they cannot hold 20 kg each, you must buy new hanger clips with your new panels.

Testing Panel Edge Fold Design Compatibility

The third factor is the panel edge fold design. This is the shape of the metal on the side of the ceiling panel. To attach to the C-channel, the edge of the panel must hook onto the runner. There are two common edge folds: the C-type edge and the Z-type edge. A C-type edge hooks straight up and over. A Z-type edge slides in from an angle. If the old grid has runners made for C-type panels, and you buy Z-type panels, they will not lock into place.¹⁴ As soon as the ship hits a wave, the panels will pop out. Always ask the ship owner for a clear photo of the side of one old ceiling panel so you know exactly which edge fold to order from your factory in China.

What Documentation Confirms Replacement Marine Wall Panel Fitment on Aging Vessels?

Missing the original ship plans? Buying panels without data is a huge risk. You need the right paperwork to confirm fitment.

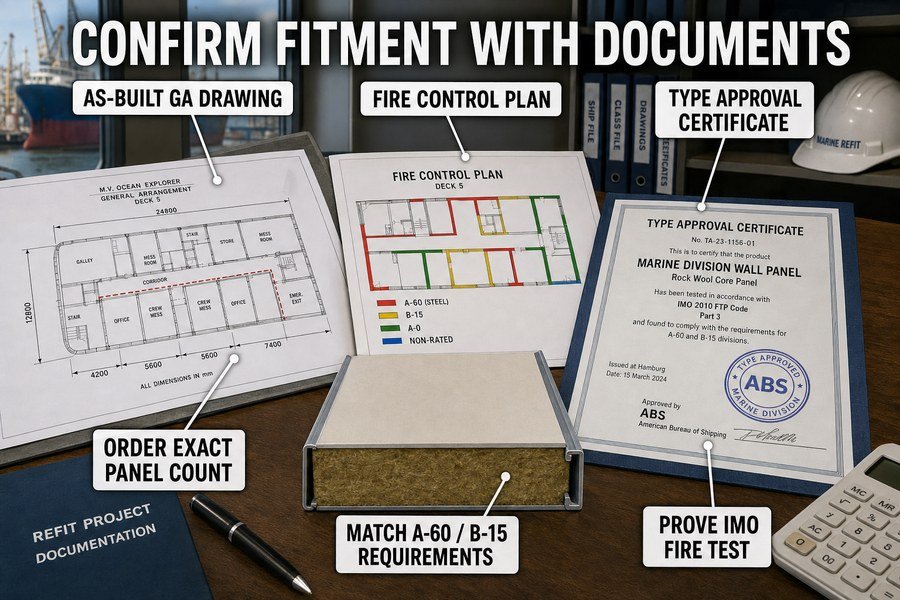

Replacement marine wall panel fitment is confirmed using three key documents: the original As-Built general arrangement drawings, the fire control plan, and the maker's type approval certificates. These documents provide the legacy part numbers, required fire ratings, and exact dimensions needed to order matching modern panels.

You can measure everything on the ship perfectly, but if you do not have the right paperwork, the class surveyor will not let you install the panels. The surveyor works for classification societies like DNV or ABS¹⁵, and they check the ship's documents against what you are doing. If the paperwork does not match the panels, you fail. To confirm your replacement panels are legal and correct, you need three key documents: As-Built general arrangement drawings, the fire control plan, and type approval certificates.

Using As-Built General Arrangement Drawings

The first document you need is the As-Built general arrangement (GA) drawing¹⁶. When a ship is built, the shipyard makes a final map of every room. This is called the As-Built drawing. It is very different from the early design drawings because things change during construction. The As-Built drawing shows the exact room sizes, door locations, and wall lengths. If you use the As-Built GA, you can count exactly how many standard 600mm panels you need for a room, and how many custom 300mm or 400mm cut panels you need for the corners. This stops you from ordering too much material, which saves your company money and reduces shipping costs from Asia to your clients in Europe.

Checking Fire Control Plans and Type Approval Certificates

The next two documents are the fire control plan and the type approval certificates. According to SOLAS Chapter II-2, every ship must have a fire control plan permanently displayed¹⁷. This plan uses colors and lines to show which walls are A-60 (holding fire for 60 minutes) and which are B-15 (holding fire for 15 minutes). If the fire plan says the wall between the cabin and the hallway is B-15, you cannot install a B-0 panel, even if it fits the physical frame perfectly.

Finally, you must have the type approval certificates from the panel manufacturer. When you buy panels from a factory in China or Vietnam, you must ask them for their latest DNV, ABS, or Lloyd's Register certificate. The certificate proves that their specific 50mm panel design passed the IMO fire test¹⁸. The class surveyor will check the certificate against the ship's fire control plan. If the certificate shows the panel is tested and rated for B-15, and the plan requires B-15, you are safe to install.

Conclusion

Verifying marine panel compatibility requires measuring frame gaps, checking joint profiles, surveying deck flat levels, matching ceiling grids, and studying ship documents. Doing this guarantees your refit projects stay on budget and schedule.
