Are you tired of panels failing sea trials because of weak steel sheets? Poor face sheets cause costly delays. Here is how you verify steel quality right away.

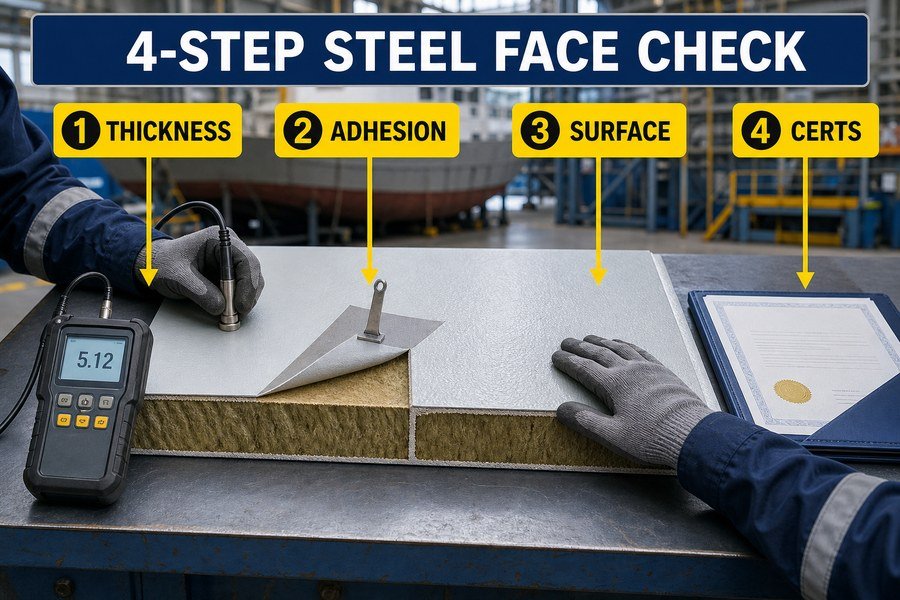

To verify steel face sheet quality on marine accommodation panels, you must check thickness using ultrasonic gauges, test adhesion via peel tests, visually inspect for dents or rust, and validate material certificates against SOLAS standards. These 4 steps ensure fire safety, structural integrity, and regulatory compliance.
I remember a project in Europe where a shipyard rejected 500 panels just because of poor steel tracking. You do not want that headache. Let us dive into the exact ways you can secure the quality of your panels.

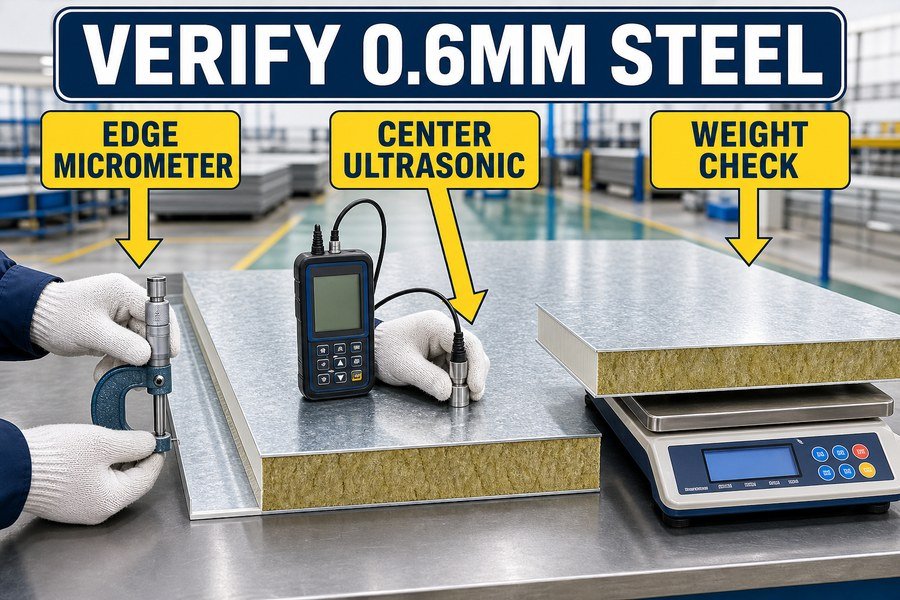

Which Incoming Inspections Confirm Steel Face Sheet Thickness on Marine Accommodation Panels?
Unsure if your supplier gave you the right steel thickness? Thin sheets fail fire tests and warp. Checking incoming materials stops bad panels before production even starts.
Incoming inspections confirm steel thickness using three primary methods: precision digital micrometers for edge checks, ultrasonic thickness gauges for center measurements, and weight-to-area ratio calculations. Applying all three methods ensures the required 0.6mm or 0.8mm PVC-laminated galvanized steel meets exact marine tolerance standards.
I always tell buyers that catching bad steel early saves a lot of money. When a container of steel coils arrives from China or Vietnam, you must inspect the thickness immediately. We use three ways to confirm the thickness of steel face sheets on marine accommodation panels. The text below explains all three methods in detail.
Precision Digital Micrometer Measurements at the Panel Edge
The first method is using precision digital micrometers at the edge. You take a digital micrometer and check the edge of the steel coil or the cut sheet. Most marine wall panels use 0.6mm galvanized steel. According to the EN 10143 standard for steel sheets, the accepted tolerance is normally +/- 0.05mm.1 If the micrometer reads 0.52mm, you reject the batch. It is very simple to do this check in the warehouse.
Ultrasonic Thickness Gauge Scans at the Panel Center
The second method uses ultrasonic thickness gauges at the center. Edges can sometimes be slightly thicker due to the manufacturing rolling process.2 You cannot measure the center of a huge panel with a micrometer. So, you place the ultrasonic probe in the middle of the sheet. The sound waves travel through the steel and tell you the exact thickness.3 I once saw a case where the edge was 0.6mm but the center was only 0.45mm. The ultrasonic tool caught this defect perfectly.
Weight-to-Area Ratio Calculations for Overall Verification
The third method is weight-to-area ratio calculations. We know the density of galvanized steel is about 7.85 grams per cubic centimeter.4 If you have a 1 meter by 2 meter sheet of 0.6mm steel, you can calculate the exact weight. The theoretical weight should be exactly 9.42 kilograms. You put the sheet on an industrial scale. If it weighs only 8.5 kilograms, the steel is too thin overall. This stops suppliers from cheating you on total material volume.
| Inspection Method | Primary Tool Used | Measurement Area | Target Standard (0.6mm Steel) |
|---|---|---|---|
| Edge Check | Digital Micrometer | Outer 50mm of sheet | 0.55mm to 0.65mm (EN 10143) |
| Center Scan | Ultrasonic Gauge | Middle of the sheet | 0.55mm to 0.65mm |
| Total Weight Check | Industrial Scale | Entire steel sheet | ~9.42 kg per 2 square meters |

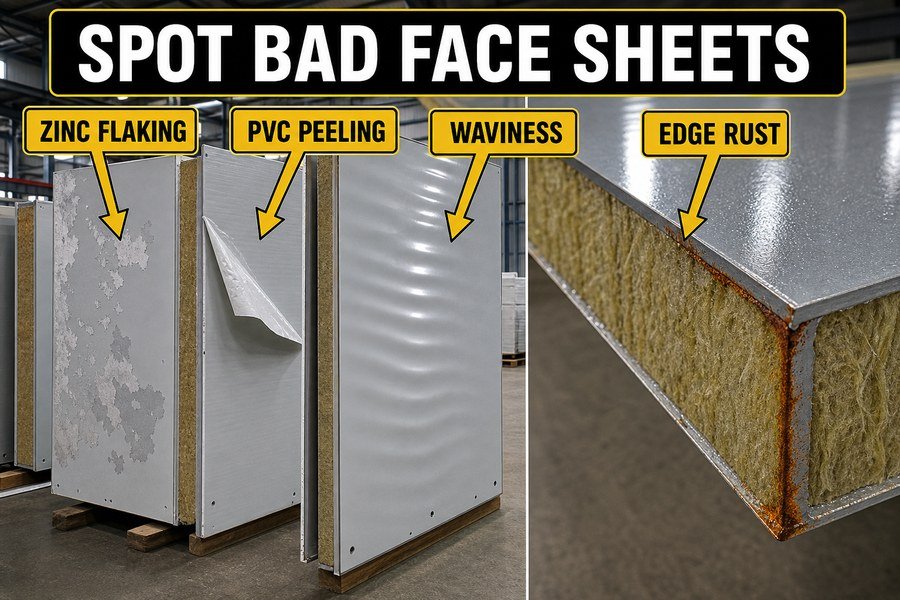

How to Spot Substandard Steel Face Sheets on Delivered Marine Accommodation Panels?
Worried your newly delivered panels will not pass shipyard standards? Poor steel ruins the final interior look. Knowing how to spot bad steel saves your profit margin.
You can spot substandard steel face sheets on delivered marine accommodation panels by looking for four main defects: zinc coating flaking, PVC film delamination, uneven surface waviness under light, and rust spots at the cut edges. Catching these four issues immediately prevents shipyard rejections.
It is very hard to fix panels once they are on the ship. You must catch bad products at the factory gate. We look for four specific defects to spot substandard steel face sheets. If you find any of these four issues, you must stop the shipment.
Identifying Zinc Coating Flaking on the Panel Surface
The first defect is zinc coating flaking. Marine panels need strong corrosion protection. The industry standard requires a Z120 or Z275 zinc coating. This means 120 grams to 275 grams of zinc per square meter, according to the EN 10346 standard. Cheap suppliers sometimes use Z40 steel. This cheap zinc layer flakes off when you bend or cut the panel. You can test this by taking a small scrap piece and bending it 90 degrees. If white powder falls off, the zinc is flaking.
Detecting PVC Film Delamination and Surface Waviness
The second defect is PVC film delamination. The colored PVC film is usually 150 microns (0.15mm) thick. If the factory uses bad glue or low heat during lamination5, the film peels off. You can try to pick at the corner of the film with your fingernail. If it lifts easily, the panel is bad. The third defect is uneven surface waviness. We call this "oil canning". You shine a bright fluorescent light across the panel at a 45-degree angle. If the steel looks wavy like the ocean, the steel tension is wrong. Shipyards hate wavy walls.
Locating Rust Spots at the Panel Cut Edges
The fourth defect is rust spots at the cut edges. When factories cut the steel panels, they expose the bare iron core. Good factories treat these edges with anti-rust paint or sealants. Bad factories leave them bare. If the panels sit in a humid warehouse in Vietnam for a week, these edges turn orange with rust. You must inspect the stacked edges of the panels. Rust here means the panel will bleed brown stains after installation.
| Defect Type | Inspection Method | Acceptable Limit | Standard Reference |
|---|---|---|---|
| Zinc Flaking | 90-degree bend test | No visible peeling | EN 10346 (Z120/Z275) |
| PVC Delamination | Manual edge peeling | Cannot lift by hand | Marine interior norms |
| Surface Waviness | 45-degree light test | Flat surface | Visual acceptance test |
| Edge Rust | Visual check on joints | Zero rust allowed | ISO 12944 |

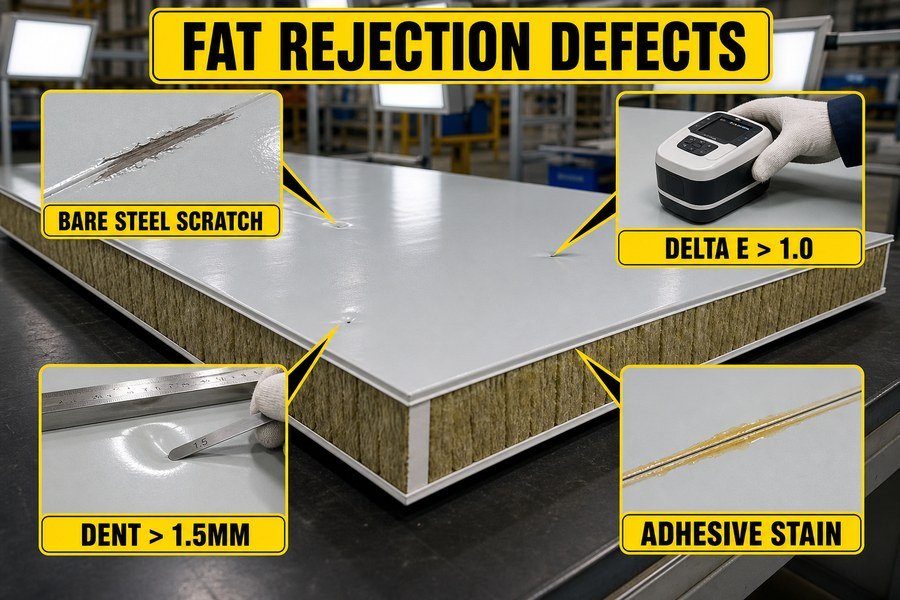

Which Visual Defects Justify Marine Accommodation Panel Rejection at FAT?
Do you dread Factory Acceptance Tests because of arguments over defects? Missing visual flaws means you pay for junk. Clear rejection rules keep your suppliers honest.
Visual defects that justify marine accommodation panel rejection at FAT include deep scratches exposing bare steel, color variation exceeding delta E 1.0, impact dents deeper than 1.5mm, and visible adhesive stains along panel joints. These four specific flaws directly violate standard marine interior aesthetic and functional requirements.
I always go to the Factory Acceptance Test (FAT) with a clear checklist. If you just look at panels from far away, everything looks fine. But ship owners look very closely. You must reject panels if you find any of the following four visual defects. Let us explore all four of them.
Deep Scratches and Visible Adhesive Stains on the Surface
The first visual defect is deep scratches exposing bare steel. Workers sometimes drag panels across the floor. If a scratch only hurts the PVC film, it looks bad. But if the scratch goes through the 150-micron PVC film and through the zinc layer, the bare steel will rust6. Any scratch showing bare metal is an instant rejection. The second defect is visible adhesive stains along panel joints. The two-component polyurethane glue used inside the panels expands.7 If workers do not wipe the edges clean, yellow glue dries on the outside. This ruins the clean look of the cabin wall.
Color Variations and Impact Dents Exceeding Allowable Limits
The third visual defect is color variation. When you buy 500 panels, they must all match. We use a digital spectrophotometer to measure color. The measurement is called Delta E. According to strict marine decoration standards, the Delta E value must be less than 1.08. If one panel has a Delta E of 1.5, it will look like a different color under cabin lights. The fourth defect is impact dents. Forks from forklifts often bump the panels. You place a straight metal ruler over the dent. You use a feeler gauge to measure the depth. Any dent deeper than 1.5mm justifies a complete rejection of that panel.9
| Visual Defect | Measurement Tool | Rejection Threshold | Risk if Accepted |
|---|---|---|---|
| Deep Scratches | Visual / Magnifier | Penetrates to bare steel | Quick rust formation |
| Color Variation | Spectrophotometer | Delta E > 1.0 | Ugly cabin aesthetics |
| Impact Dents | Straight edge & gauge | Deeper than 1.5mm | Uneven wall surface |
| Adhesive Stains | Visual check | Any visible yellow glue | Poor joint sealing |

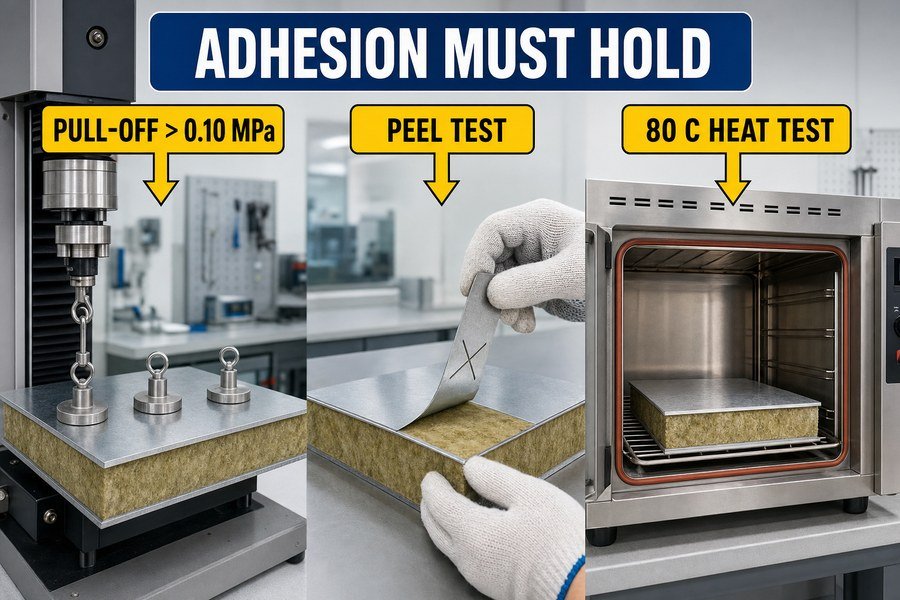

How Is Steel Face Sheet-to-Core Adhesion Tested on Marine Accommodation Panels?
What if the steel face peels off the rockwool core during installation? Weak glue leads to total structural failure. Testing adhesion proves the panel is built to last.
Steel face sheet-to-core adhesion on marine accommodation panels is tested using three main methods: the standard tensile pull-off test, the manual peel test, and high-temperature baking tests. These three tests confirm the two-component polyurethane adhesive exceeds the minimum 0.10 MPa bonding strength required for marine safety.
Glue is the secret heart of any marine panel. You can have great steel and great rockwool, but bad glue ruins everything. We test the adhesion between the steel face and the core using three reliable methods. These three methods guarantee the panels will survive vibration at sea.10
Performing the Tensile Pull-Off Test for Bonding Strength
The first method is the standard tensile pull-off test. This is a scientific test done in a lab. We take a finished panel and cut a small block, usually 100mm by 100mm. We glue metal pulling blocks to both sides of the panel. Then, a machine pulls the steel faces away from the core. According to the IMO FTP Code standards for A-Class partitions11, the bonding strength must normally exceed 0.10 MPa (Megapascals). If the machine reads 0.05 MPa before the panel breaks, the glue is too weak. The supplier must mix their two-component polyurethane adhesive better.
Using the Manual Peel Test and High-Temperature Baking Tests
The second method is the manual peel test. This is a fast factory floor test. You cut an 'X' into the steel face sheet with a sharp knife. Then, you try to pull the steel away from the rockwool by hand. If the steel comes off clean, the adhesion failed. A good panel will tear the rockwool core itself before the glue line breaks.12 The third method is high-temperature baking tests. Ships travel through very hot places like the Middle East. We put sample panels in an industrial oven at 80 degrees Celsius for 4 hours13. After taking them out, we check if the steel face sheet has bubbled or delaminated. If the glue melts, it fails the test.
| Adhesion Test Method | Equipment Needed | Success Criteria | Purpose of Test |
|---|---|---|---|
| Tensile Pull-Off Test | Universal Testing Machine | > 0.10 MPa strength | Verify structural integrity |
| Manual Peel Test | Utility Knife | Core tears before glue | Quick factory floor check |
| High-Temp Baking | Industrial Oven | No bubbles at 80°C | Ensure tropical climate safety |

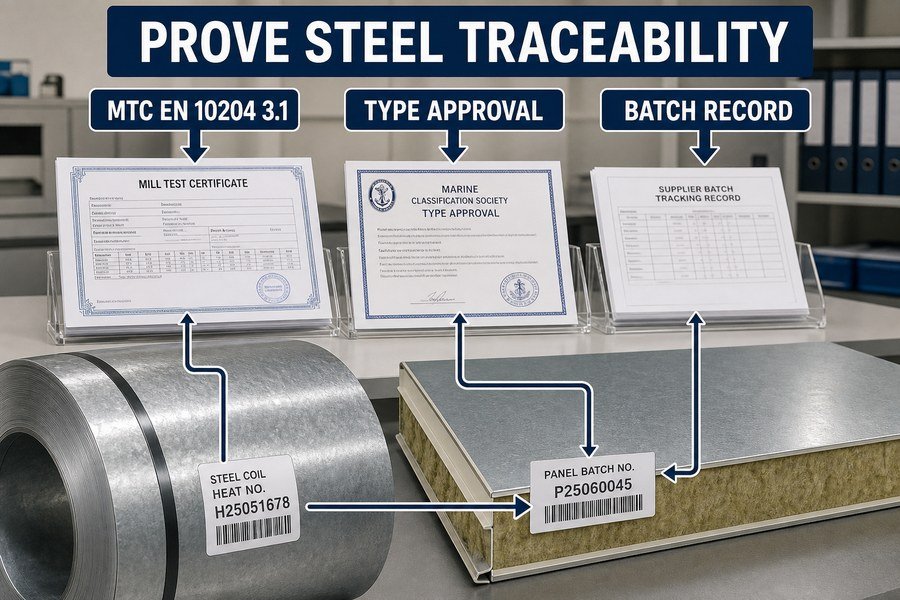

What Documents Prove Steel Face Sheet Grade and Traceability on Marine Accommodation Panels?
Do you trust your supplier's word on steel grades? Without proof, port state control will fail your ship. The right paperwork guarantees total traceability and compliance.
Documents that prove steel face sheet grade and traceability on marine accommodation panels include the Mill Test Certificate (MTC) EN 10204 Type 3.1, Marine Classification Society Type Approval certificates, and the supplier's internal batch tracking records. Collecting all three documents ensures full compliance with SOLAS and IMO regulations.
In the marine industry, if you do not have the paper, the product does not exist. Inspectors from ship registries are very strict. You must collect three specific documents to prove the quality of your steel face sheets. Let me explain what these three documents are and why you need them.
Securing the Mill Test Certificate (MTC) EN 10204 Type 3.1
The first document is the Mill Test Certificate (MTC) EN 10204 Type 3.1. This is the birth certificate of the steel. When the steel mill produces the coil, they test the chemical composition and mechanical strength. The MTC 3.1 shows the exact percentage of Carbon, Manganese, and Sulfur in the steel. It also shows the yield strength. This certificate must be signed by the mill's authorized inspection representative, who is independent of the manufacturing department. You match the heat number on the steel coil to the heat number on the MTC. This stops suppliers from buying cheap scrap steel.
Verifying Marine Classification Society Type Approvals and Batch Records
The second document is the Marine Classification Society Type Approval certificate. This comes from big agencies like DNV, Lloyd's Register, or ABS. This certificate proves that a panel made with this specific 0.6mm steel and this specific glue passed the SOLAS A-60 or B-15 fire tests. The third document is the supplier's internal batch tracking records. The outfitting factory must provide a document that links your specific panel order to the exact steel coil they used. If one panel fails on the ship five years from now, you can check the batch record to find out exactly when it was made and what steel was used.
| Document Type | Issuer | Key Information Provided | Regulatory Standard |
|---|---|---|---|
| MTC EN 10204 3.1 | Steel Mill | Chemical & physical properties | EN 10204 |
| Type Approval | Class Society (e.g., DNV) | Fire rating approval (A-60, B-15) | SOLAS / IMO FTP Code |
| Batch Tracking Record | Panel Manufacturer | Coil number to panel link | ISO 9001 Traceability |

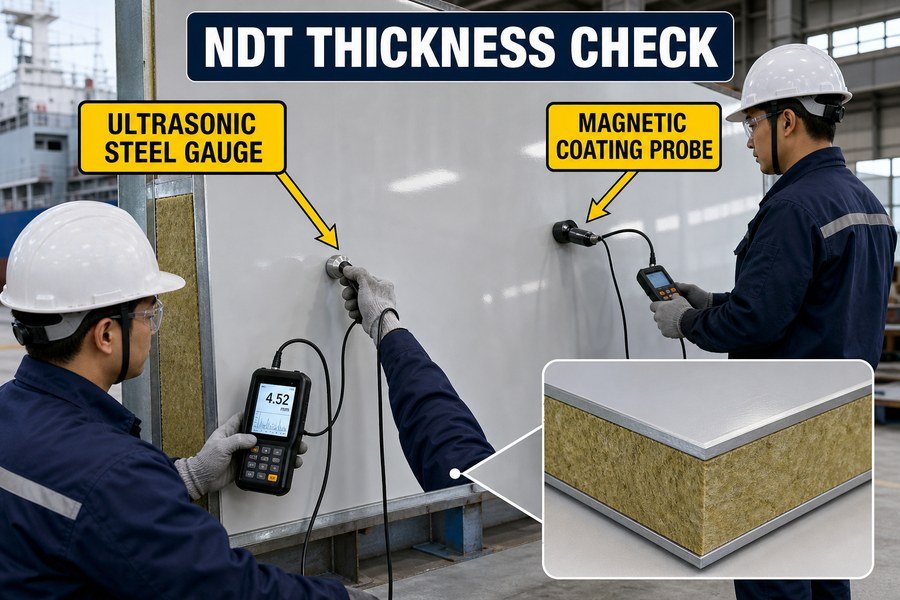

Which NDT Method Checks Steel Face Sheet Thickness on Finished Marine Accommodation Panels?
Need to measure steel thickness but cannot cut the finished panel? Destroying panels just to test them wastes money. NDT methods give you exact answers safely.
The Non-Destructive Testing (NDT) methods used to check steel face sheet thickness on finished marine accommodation panels are ultrasonic thickness gauging and magnetic induction testing. These two methods accurately measure the 0.6mm steel and the PVC coating layers without causing any damage to the final product.
Cutting open a finished panel just to measure the steel inside is a terrible idea. You ruin a perfect product. Instead, we use Non-Destructive Testing (NDT) methods. These two NDT methods let you see through the panel without touching a saw. We will discuss both methods below.
Using Ultrasonic Thickness Gauging for Core and Steel Verification
The first NDT method is ultrasonic thickness gauging. This is the most common tool used by marine surveyors. The device sends high-frequency sound waves, usually between 2.5 MHz and 10 MHz14, into the panel surface. The sound wave hits the back wall of the steel face sheet and bounces back. The machine calculates the time it takes for the echo to return. Because sound travels through steel at a known speed (about 5920 meters per second), the tool calculates the exact thickness. A good ultrasonic gauge has an accuracy of +/- 0.01mm. This confirms you have 0.6mm steel, not 0.4mm steel, hiding inside the panel.
Applying Magnetic Induction Testing for Coating and Steel Layers
The second NDT method is magnetic induction testing. Sometimes called Eddy Current testing, this is perfect for checking the outer layers. The steel face sheet is magnetic, but the PVC film on top is not. You place the magnetic probe on the surface. The device measures the distance from the probe to the magnetic steel base.15 This tells you the exact thickness of the PVC film, verifying it is the standard 150 microns. By using both ultrasonic waves for the steel and magnetic induction for the coating, you get a full picture of the panel's quality without scratching the surface.
| NDT Method | Target Material | Typical Frequency / Mechanism | Measurement Accuracy |
|---|---|---|---|
| Ultrasonic Gauging | Steel Face Sheet | Sound waves (2.5 - 10 MHz) | +/- 0.01mm |
| Magnetic Induction | PVC Film Coating | Magnetic field distance | +/- 1 micron |
Conclusion
Verifying steel face sheets on marine panels guarantees safety and saves money. By demanding strict inspections, proper tests, and right documents, you secure top quality from your suppliers every time.
-
