How Do Thickness Constraints Differ Between Newbuild and Retrofit Marine Panels?

Upgrading ship interiors can cause major headaches if panels do not fit. Let us look at why newbuilds and retrofits have totally different rules for panel thickness constraints.

Thickness constraints differ because newbuilds allow custom structural design to accommodate thicker 50mm to 100mm panels for optimal fire ratings and acoustics. Retrofits must adapt to existing steel boundaries and legacy track systems, restricting panels to thinner 25mm or 50mm profiles to avoid costly structural modifications.

If you ignore these differences, you will waste money on materials that do not fit. Read on to understand how to choose correctly.

Why Are Newbuild Marine Wall Panels Generally Thicker Than Retrofit Wall Panels?

Choosing wall panels for a new ship is easy, but retrofits face tight limits. If you pick the wrong size, your project will fail and lose money.

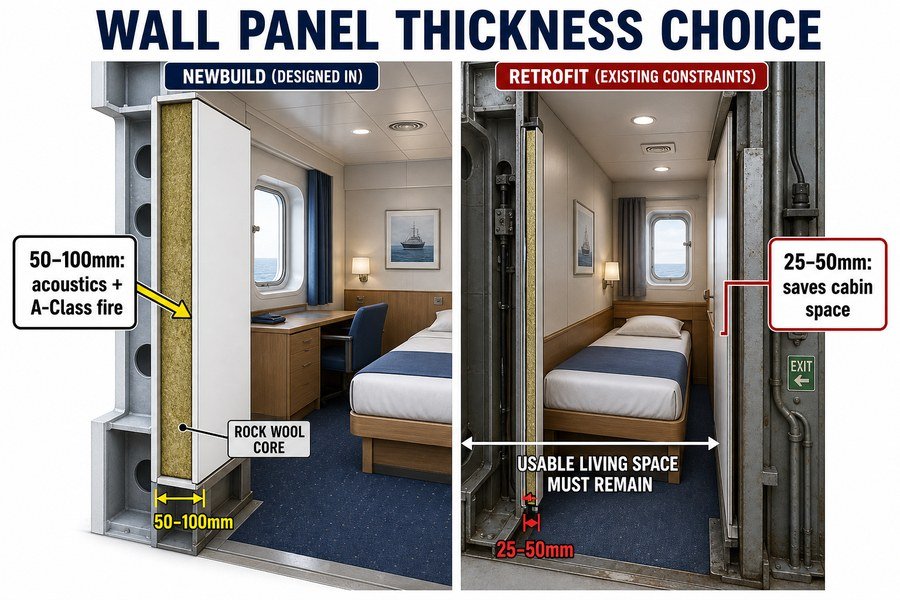

Newbuild panels are thicker (50mm to 100mm) because engineers design the hull spaces around the panels to achieve maximum acoustic reduction and A-Class fire safety. Retrofit panels are thinner (25mm to 50mm) to fit inside older, pre-existing cabin footprints without eating into usable living space or corridors.

I have seen many buyers make the mistake of buying thick panels for old ships. They quickly find out the panels will not fit. We need to look at both the newbuild strategy and the retrofit strategy in great detail so you can avoid wasting money on the wrong materials.

Accommodating Acoustics and A-Class Fire Ratings in Newbuilds

In a newbuild project, shipyards start with an empty space. They can draw the rooms as big as they want on the computer. This freedom allows them to use panels that are 50mm to 100mm thick. Why do they want thick panels? Thick panels hold a lot more mineral wool insulation inside them. According to the SOLAS IMO FTP Code Annex 1 Part 3, an A-60 rated fire bulkhead must block high heat and flames for exactly 60 minutes.¹ To do this successfully, you usually need at least 100mm of high-density insulation². Thicker panels also stop noise very well. A 50mm thick acoustic panel can block about 35 decibels (dB) of sound³, which keeps the crew happy and meets the strict noise rules. Because the shipyard knows the exact panel size very early in the project, they just build the steel walls further apart to make room for them without any stress.

Preserving Cabin Space in Retrofit Projects

Retrofit projects are completely different and much harder. The steel walls and cabin sizes are already fixed and welded. If a crew cabin is exactly 2 meters wide, and you decide to use 100mm thick panels on both sides of the room, the internal space shrinks to 1.8 meters. You lose a lot of usable living space. Also, the ship corridors must stay wide enough for people to escape quickly in a fire emergency⁴. Because of this strict space limit, retrofit panels are usually limited to 25mm or 50mm in thickness. A thin 25mm panel uses much less space but still meets the B-15 fire rating required for cabin walls. You simply cannot use a thick newbuild panel in an old ship because the bed, desk, and bathroom module will no longer fit inside the room. I always tell my clients to double-check the original floor plans before buying.

How Does Existing Steelwork Limit Wall Panel Thickness in Retrofits Versus Newbuilds?

Steel bulkheads on old ships cannot be moved easily. This fixed steelwork forces you to rethink your panel thickness, or you will face huge delay costs.

Existing steelwork limits retrofit panel thickness because old stiffeners, pipes, and cable trays are already fixed in place, leaving gaps as narrow as 30mm to 50mm. Newbuilds avoid this by placing steel bulkheads based on the 3D model, allowing enough clearance for 100mm thick panels and heavy insulation.

When I work on a ship, the raw steel behind the beautiful walls is always the biggest problem. The steelwork dictates exactly how thick your wall panels can be. You must consider both the old ship obstacles and the new ship 3D models to understand why the sizes are so different.

The Impact of Fixed Stiffeners on Retrofit Clearances

On an older ship, the steel bulkheads have vertical beams called stiffeners. These stiffeners add structural strength to the hull of the ship. A common steel bulb flat stiffener sticks out about 100mm to 150mm from the flat wall. Besides the large stiffeners, old ships have water pipes and heavy cable trays welded directly to the steel. When you want to put a new decorative wall panel in front of this mess, you must leave a clear gap. Often, the space left for the decorative panel is very narrow, sometimes only 30mm to 50mm of total depth. If you try to use a large 100mm thick panel, it will immediately hit the pipes and stiffeners. You cannot cut or move the pipes without spending thousands of dollars in extra shipyard labor. So, you must buy a thin 25mm panel to easily fit in front of the existing steelwork obstacles.

3D Modeling Clearances in Modern Newbuilds

In a newbuild, the shipyard uses advanced 3D computer models long before cutting any steel plates. They plan exactly where every single pipe, cable, and stiffener will go. If the shipyard wants to install a thick 100mm A-Class wall panel for better fire protection⁵, they simply tell the computer software to move the water pipes 150mm away from the wall. This creates a large, clean, empty space. The clearance is planned from day one. I have noticed that newbuilds have very straight and deep installation zones. This means you do not have to worry about hitting a hidden pipe when you push a thick panel into place.

What Thickness Flexibility Is Lost When Replacing Marine Panels in Existing Vessels?

When you replace panels on an old ship, you lose the freedom to choose any size. Forcing a thick panel into an old track is a nightmare.

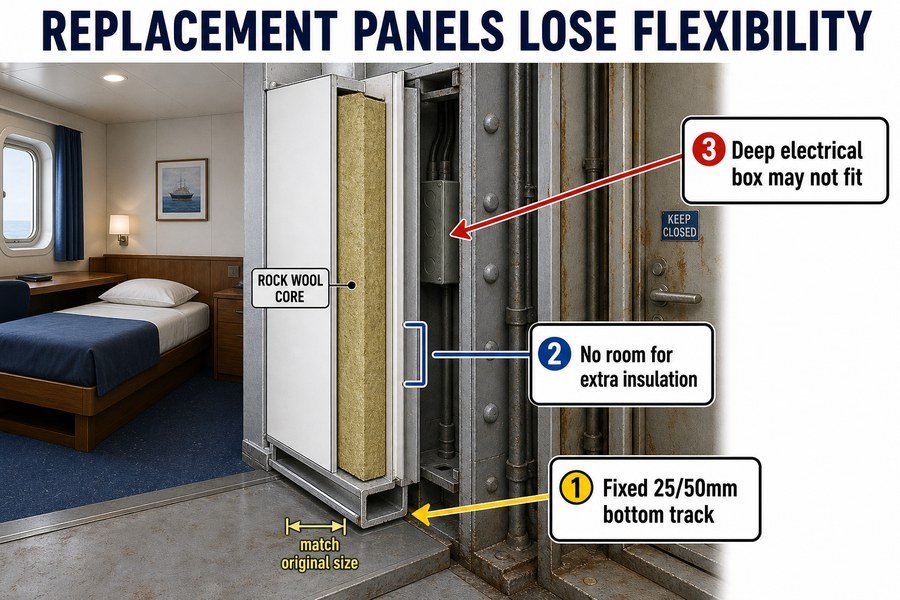

Replacing panels in existing vessels eliminates three areas of thickness flexibility: the ability to change the bottom track profile (fixed at 25mm or 50mm), the space for added thermal insulation, and the depth of recessed electrical boxes. You must match the original layout exactly to avoid rebuilding the sub-floor.

Replacing one or two damaged panels in a cabin seems like an easy job, but it is actually very strict. You lose almost all your choices regarding panel thickness. Here is a detailed look at the three specific areas of flexibility you lose during a panel replacement job.

Matching Legacy Bottom Track Profiles (25mm and 50mm)

The first major flexibility you lose is the bottom track profile. Marine wall panels sit tightly inside a metal U-channel track⁶ that is either welded or bolted securely to the steel deck. In an existing vessel, these tracks are already fixed there permanently. If the original track was made for a 25mm panel, you absolutely cannot put a 50mm panel into it⁷. Ripping out the old steel track and welding a new one takes far too much time and it ruins the expensive deck leveling compound underneath. Therefore, you are forced to buy a new panel that perfectly matches the existing 25mm or 50mm track. I have helped many buyers source custom thin panels just so they can slide them right into these old U-channels without breaking the floor.

Insulation and Electrical Depth Constraints

The second lost flexibility is the space for thermal insulation. Sometimes a client wants to use a much thicker panel to keep the room warmer in cold weather. But, the existing ceiling and floor margins are already fixed. You cannot add a thicker panel packed with extra mineral wool⁸ because it will strongly misalign with the rest of the room's fixed boundaries and corners.

The third lost flexibility is the depth of recessed electrical boxes. Light switches and power outlets sit inside metal boxes cut deep into the panel. A standard marine electrical box needs at least 40mm of depth to hold the wires safely. If you are forced to replace a wall using a thin 25mm panel because of the floor track, a 40mm deep electrical box will stick out the back and hit the raw steel wall. You lose the flexibility to use standard deep boxes and you must hunt for special ultra-thin electrical fittings instead.

Why Must Retrofit Marine Ceiling Panels Match Pre-Set Deck Head Heights Unlike Newbuilds?

Ceiling heights in old cabins are set in stone. If your new ceiling panels are too thick, you will break the minimum height rules and fail inspection.

Retrofit ceiling panels must match pre-set deck heights because the overhead space is already packed with fixed HVAC ducts and sprinkler pipes, leaving only 25mm to 30mm for the panel itself. Newbuilds can adjust deck heights to fit thicker 50mm acoustic ceilings while meeting the IMO minimum 2000mm cabin height.

The ceiling of a ship cabin is a very crowded and messy place. The thickness of your ceiling panels depends heavily on exactly how much space is left between the raw steel roof and the living area below.

Navigating Fixed HVAC Ducts in Retrofit Overheads

In a retrofit project, the overhead space is already full of equipment. You will find large air conditioning (HVAC) ducts, drinking water pipes, and heavy fire sprinkler lines⁹. These items hang down very low from the steel deck. The space left underneath them for the decorative ceiling panel is usually very small. In most old ships, you only have room for a thin ceiling panel, usually about 25mm to 30mm thick¹⁰. If you try to use a heavy, thick 50mm panel, it will crash into the bottom of the HVAC ducts. Moving these ducts is basically impossible because they run continuously through the entire ship¹¹. So, the thickness of the retrofit ceiling is strictly limited by the fixed pipes located above it. I always remind customers to carefully measure the lowest hanging pipe before ordering new ceilings.

Meeting IMO Minimum Cabin Height Regulations

There is a strict and legal rule for ceiling heights on a ship. The International Maritime Organization (IMO) states that a cabin must always have a minimum clear height. According to standard maritime safety rules, this clear height is usually at least 2000mm (2 meters)¹² from the floor straight up to the ceiling panel. In a newbuild, if the shipyard wants to use a thick 50mm ceiling panel to block loud engine noise, they simply make the steel room taller. They build the steel deck at 2200mm, leaving plenty of room for thick panels and still easily passing the 2000mm rule. In a retrofit, the steel roof is already built low. If you use a thick panel, the clear height might drop to 1950mm. If that happens, the ship will fail the safety inspection. You must use thin panels to keep the room tall enough for the inspector.

How to Match Retrofit Wall Panel Dimensions to Legacy Ship Joinery?

Connecting new panels to old ship doors and windows is very tricky. A bad match will leave ugly gaps and ruin the fire rating.

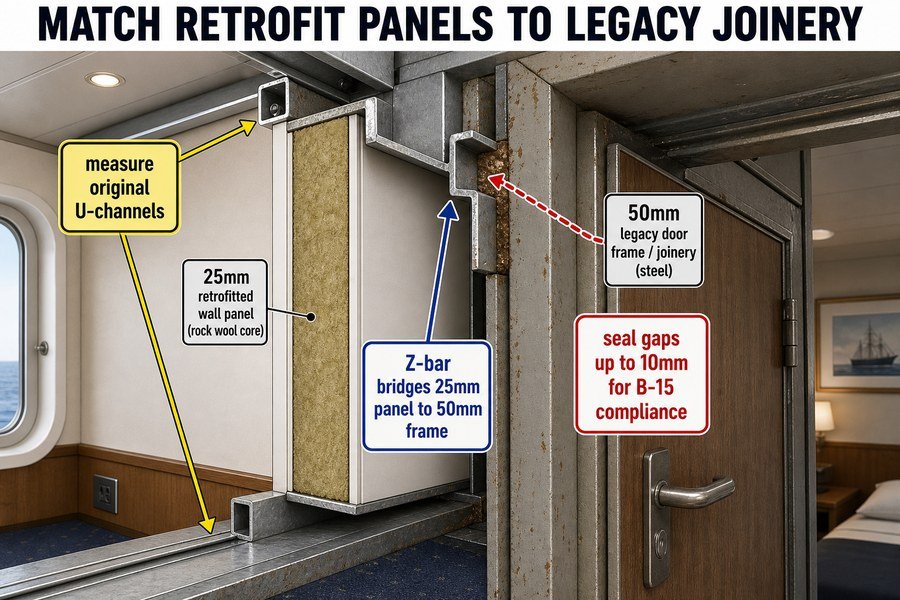

To match retrofit wall panels to legacy joinery, you must measure the original U-channels, use custom transition profiles (like Z-bars) to connect new 25mm panels to old 50mm door frames, and apply IMO-approved fire sealants to close gaps up to 10mm, ensuring both visual continuity and B-15 fire compliance.

When you buy new wall panels for an old ship, they must connect perfectly to the old doors, windows, and corners. We call these parts legacy joinery. Old ships often have very strange sizes, so making the new panels fit the old joinery is a very big challenge.

Utilizing Custom Transition Profiles Like Z-Bars

The first critical step is to carefully measure the original U-channels on the floor and ceiling. You absolutely need to know the exact width. Very often, you will find that the old cabin door frame was originally built for a 50mm thick wall panel¹³. But, you only bought a 25mm thick replacement panel to save money and space. How do you firmly connect a thin panel to a thick door frame? You must use custom metal transition profiles. The most common and effective tool for this job is a Z-bar profile. A Z-bar is made of strong 1.2mm thick galvanized steel bent sharply into the shape of a letter "Z". One side screws tightly into the 25mm panel, and the other side fills out the 50mm door frame gap. This keeps the panel tight and stops it from shaking loudly when the ship moves at sea. It makes the wall look very clean and gives you perfect visual continuity.

Applying IMO-Approved Sealants for Gap Management

Even if you use custom Z-bars, old ships are almost never perfectly straight. Over many years at sea, the steel deck might bend slightly, leaving small uneven spaces between the new panel and the old joinery. Sometimes these annoying gaps are up to 10mm wide. You cannot leave these gaps open, or deadly fire and smoke will quickly pass through to the next room¹⁴. To safely close these gaps, you must neatly apply special fire sealants. You cannot use normal cheap house glue. The sealant must be rigorously tested and approved by the IMO¹⁵ to meet the B-15 fire standard. When you completely fill the 10mm gap with this approved marine sealant, you restore the total safety of the room and keep the fire rating fully legal.

Conclusion

Understanding these thickness constraints prevents costly delays. Always measure your existing steelwork, tracks, and ceiling heights before buying materials to ensure your marine outfitting project is a complete success.
